MEDCAPTAIN HP-60 - Page 71

Disassembly and Assembly
Confidential Information of MEDCAPTAIN MEDICAL TECHNOLOGY CO., LTD. 71 / 93
No.
Part Name
Quantity
1
HP-60 lower shell hole plug
8
2
PM3*6 screw
8
3
HP-60 face shell
1

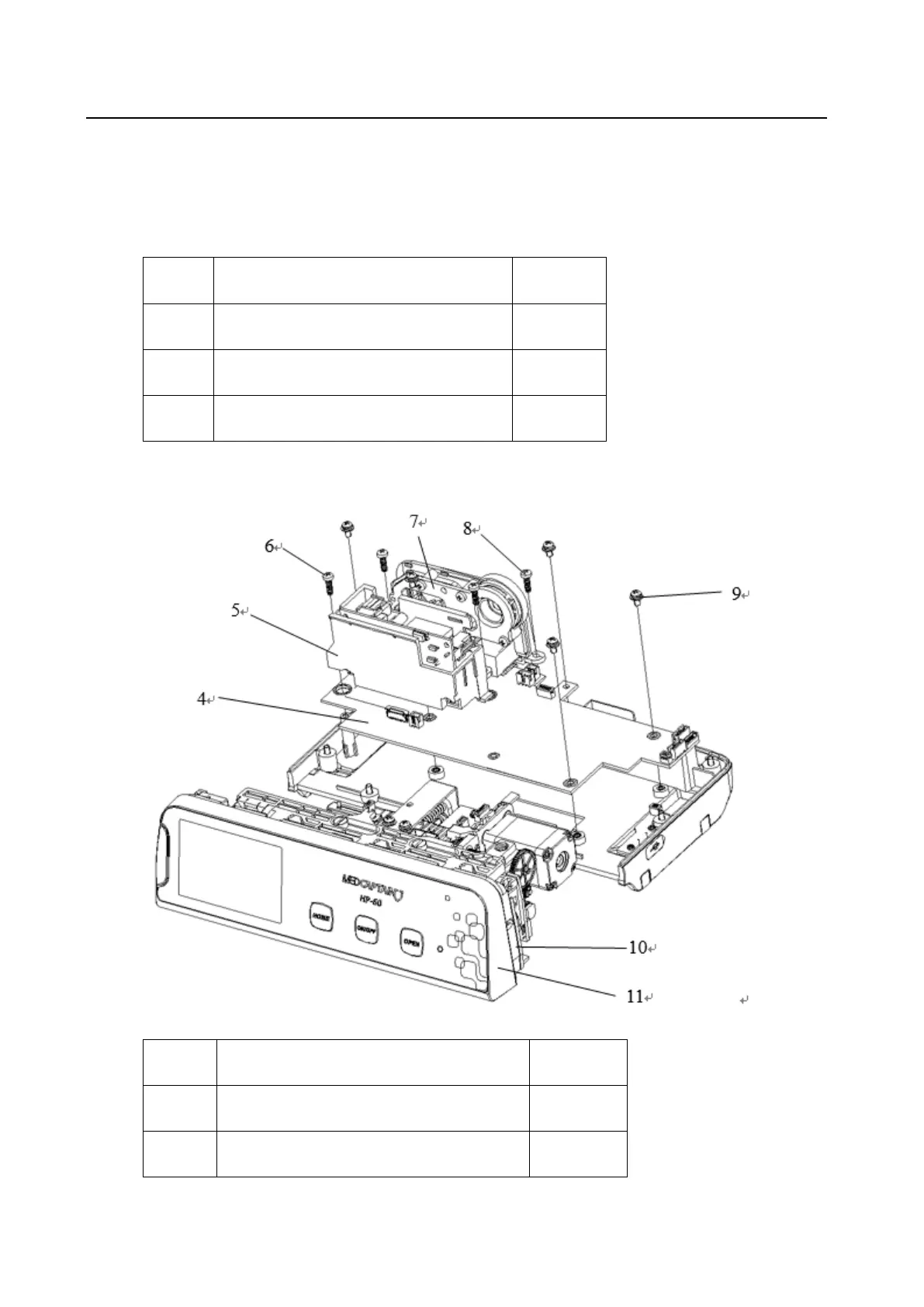

1. Remove the eight HP-60 lower shell hole plugs (1) and eight PM3*6 screws (2).
2. Take down the HP-60 face shell (3).
No.
Part Name
Quantity
4
HP-60 main PCBA
1
5
HP-60 AC shield
1
