Medeli Millenium Series - Rear Panel; Display

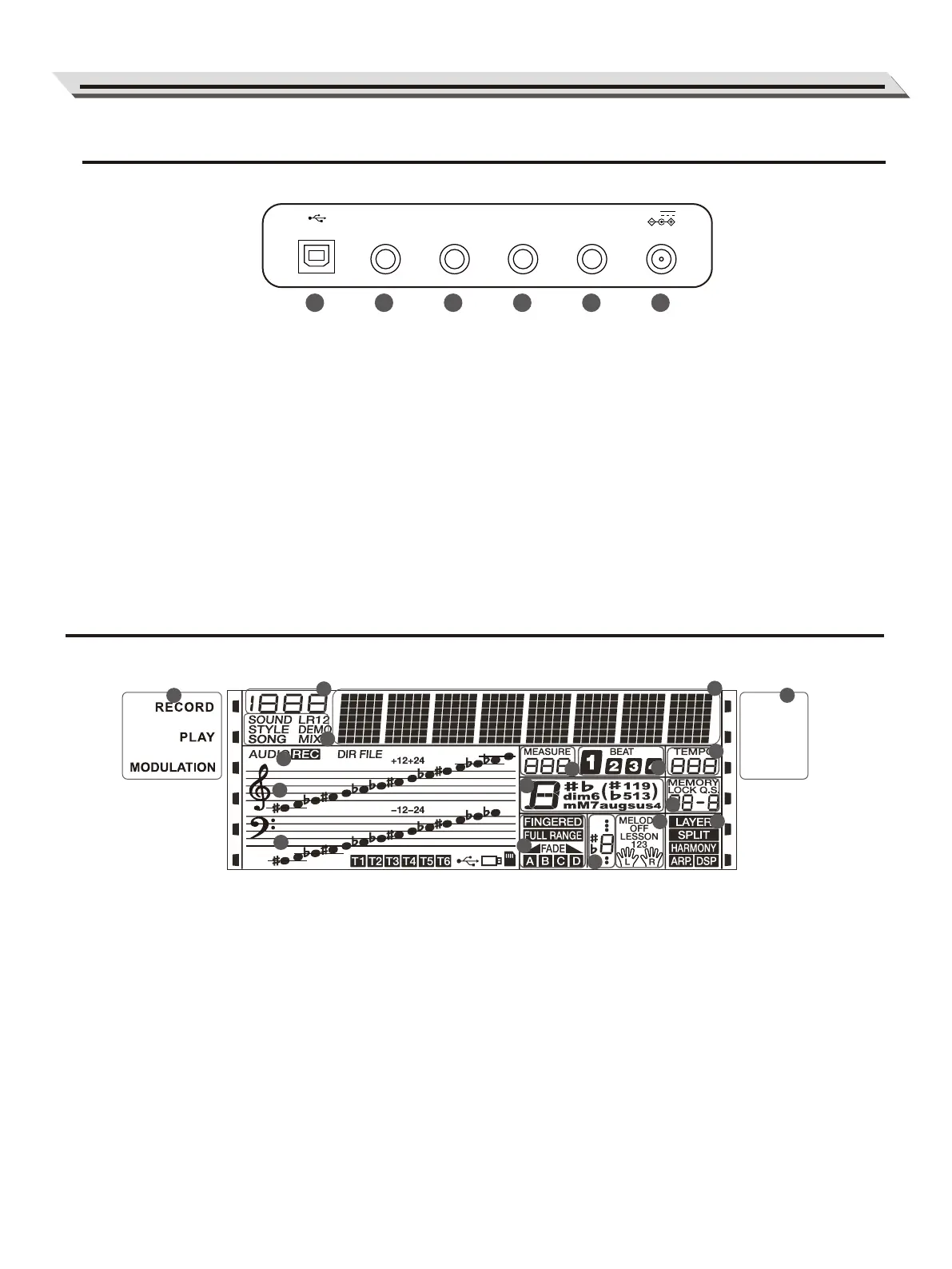

Panel & Display Description
Rear Panel
1. RECORD/PLAY/MODULATION
2. NUMBER
3. SOUND/STYLE/DEMO/SONG
4. CHARACTER
5. TOUCH/SUSTAIN
6. RECORD
7. TREBLE CLEF
8. BASS CLEF
9. MEASURE
10. BEAT
11. TEMPO
12. CHORD
13. MEMORY/QUICK SETTING
14. FINGERED/FULL RANGE/FADE/A/B
15. NUMBER MUSICAL NOTATION
16. LESSON
17. LAYER/SPLIT/ARP./DSP
30. USB Jack
Connect to a computer.
31. SUSTAIN Jack
Connect a sustain pedal.
32. PHONES Jack
Connect a pair of headphones.
33. AUX IN Jack
Connect an external audio source,
such as MP3 or CD player.
34. MIC Jack
Connect a microphone.
35. DC IN Jack
Connect the DC 12V power adapter.
