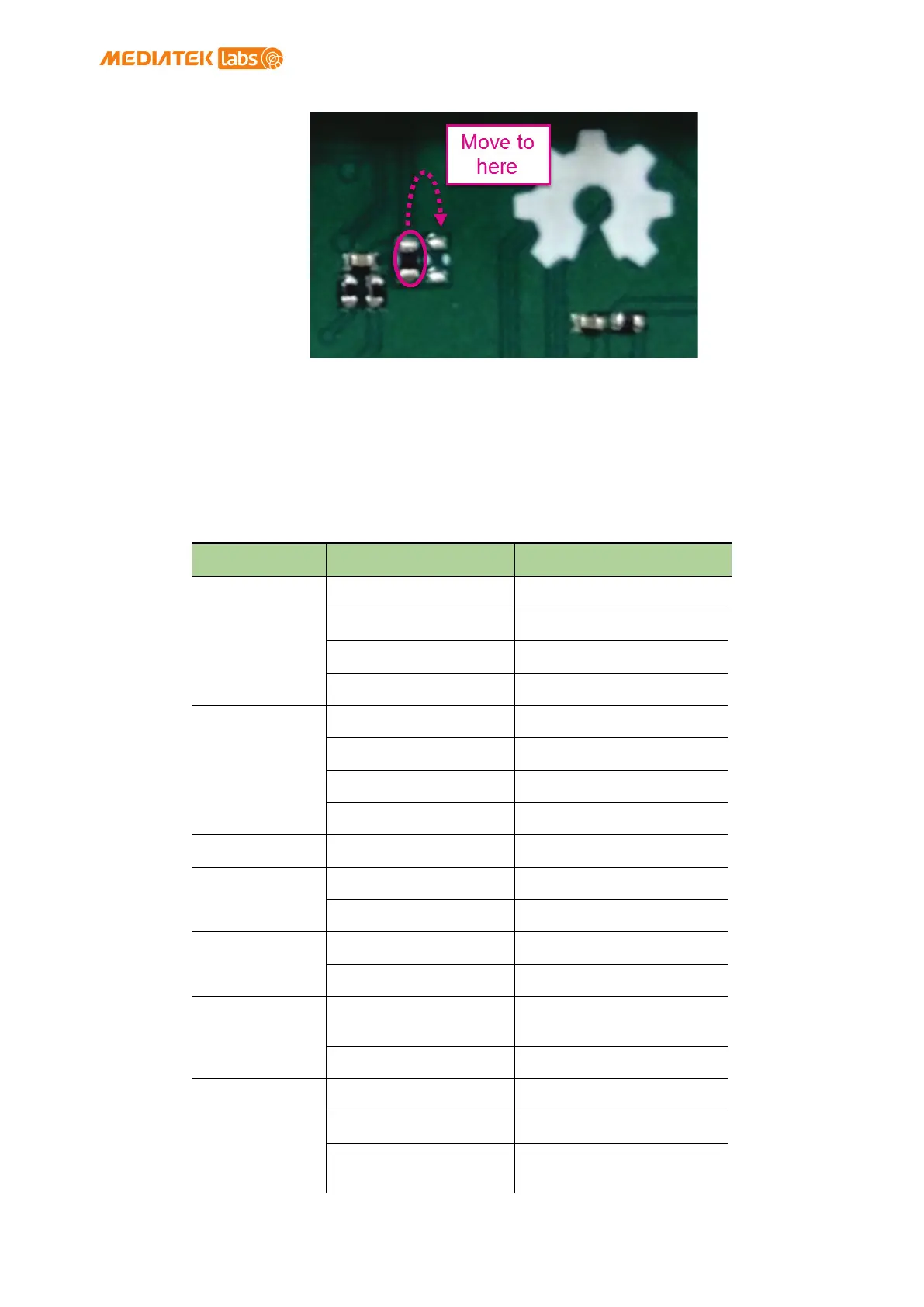

Figure 8 Moving a resistor to access JTAG mode
1.4.9. Specifications
The key specifications of LinkIt Smart 7688 Duo development board are shown
in Table 9.
Category
Feature
LinkIt Smart 7688 Duo
MPU
Chipset
MT7688AN
Core
MIPS24KEc
Clock speed
580MHz
Working voltage
3.3V
MCU
Chipset
ATmega32U4
Core
Atmel AVR
Clock speed
8MHz
Working voltage
3.3V
PCB Size
Dimensions
60.8 x 26 mm
Memory
Flash
32MB
RAM
128MB DDR2
Power Source
USB Power
5V (USB Micro-B)
VCC
3.3V (Pin Breakout)
GPIO
Pin Count
3 (MT7688AN)
24 (ATmega32U4)
Voltage
3.3v
PWM
Pin Count
8 (ATmega32U4)
Voltage
3.3v
Max. Resolution
16 bits
(customizable)
