MediaTek LinkIt™ Smart 7688 User Manual

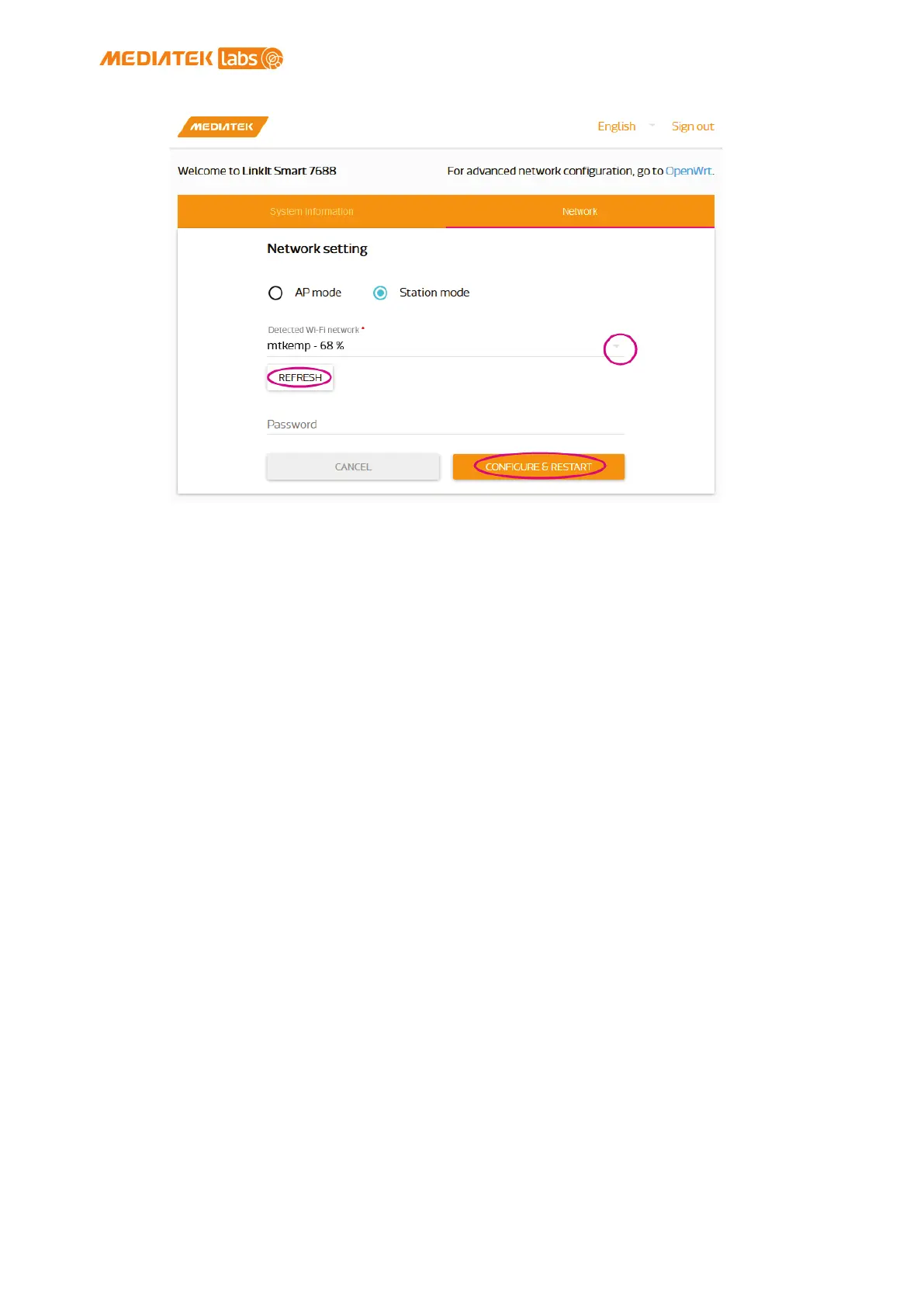

Figure 21 Changing to Station mode in Web UI
3) A message window will pop up letting you know the device is
connecting to the AP you’ve selected.
4) Notice the Wi-Fi LED, it should blink once a second, this
indicates LinkIt Smart 7688 is in Station mode.
5) To change LinkIt Smart 7688 back to AP mode, press the Wi-Fi
Reset button for at least 5 seconds and release. When you
see three short blinks on Wi-Fi LED, it is in AP mode.
2.4.11. Viewing System Information from the Web UI
You can view LinkIt Smart 7688’s system information from any browser. After
you’ve connected the LinkIt Smart 7688 to a network, open a browser and
type http://myLinkIt.local in the URL box and sign in 2.4.1”Accessing Web UI”.
Click the Configure button under System information and the following
information will display, as shown in Figure 22:
• Device name
• MAC address
• Current IP address
• Account/Password
• Bootloader/Firmware version
