Medivators DSD-201 - LCD Screen Operations

REPROCESSING SYSTEMS
Conirol Panel
Process
Indicators
Disinfectant
Return Valve
Drain Valve
Alcohol
Reservoir
Air Valves
Reservoir
Cover
Disinfectant
Filter
Regulator
Disinfectant
Reservoir
Temperature
Control
Air Compressor
Lid
Basin
Water Filter
Bleeder Valve
Drain Line
af (rear side)
Detergent
Reservoir
Pump Override
Switch
下 Incoming Water
Water Filter
Air Filter
Disinfectant
Pump

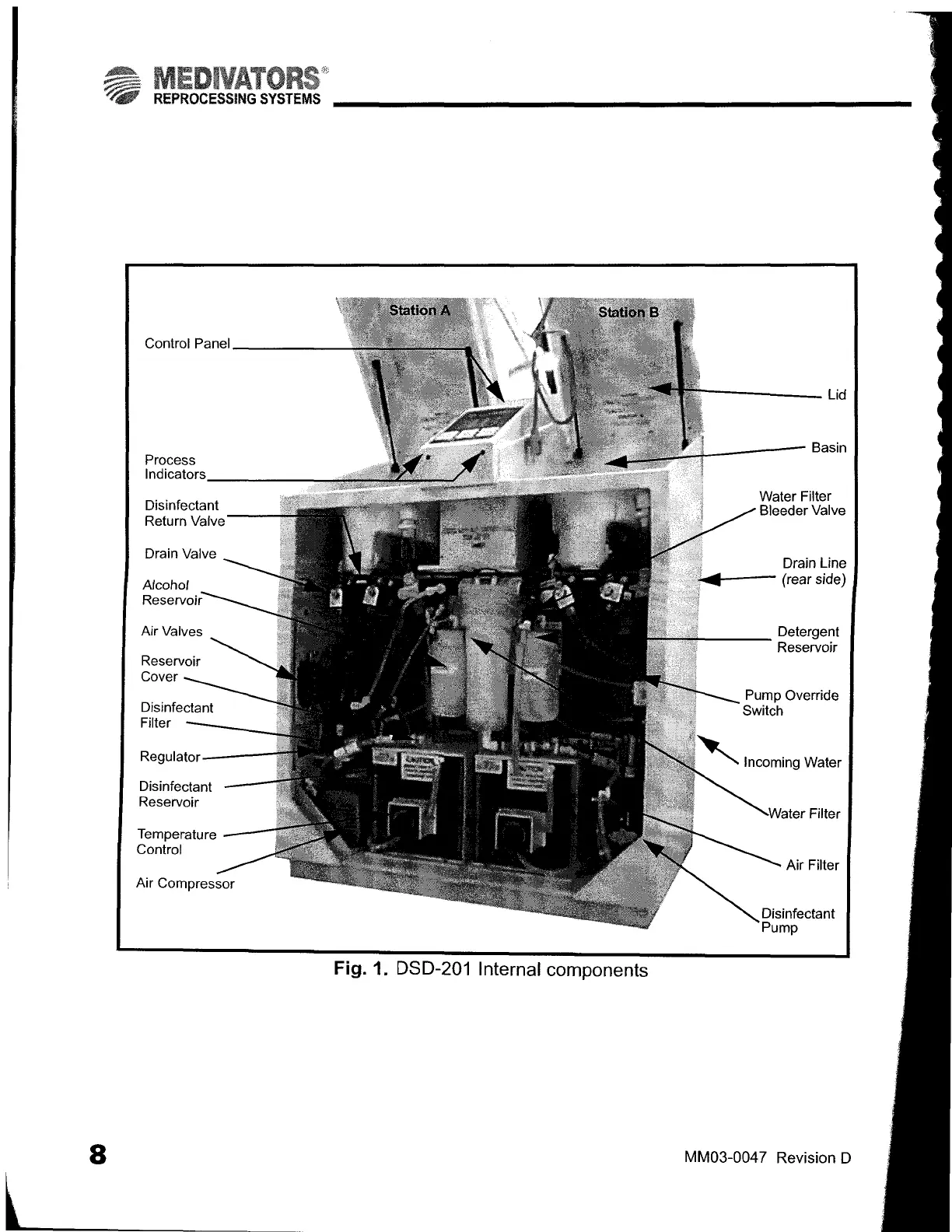

Fig. 1. DSD-201 Internal components
MM03-0047 Revision D
