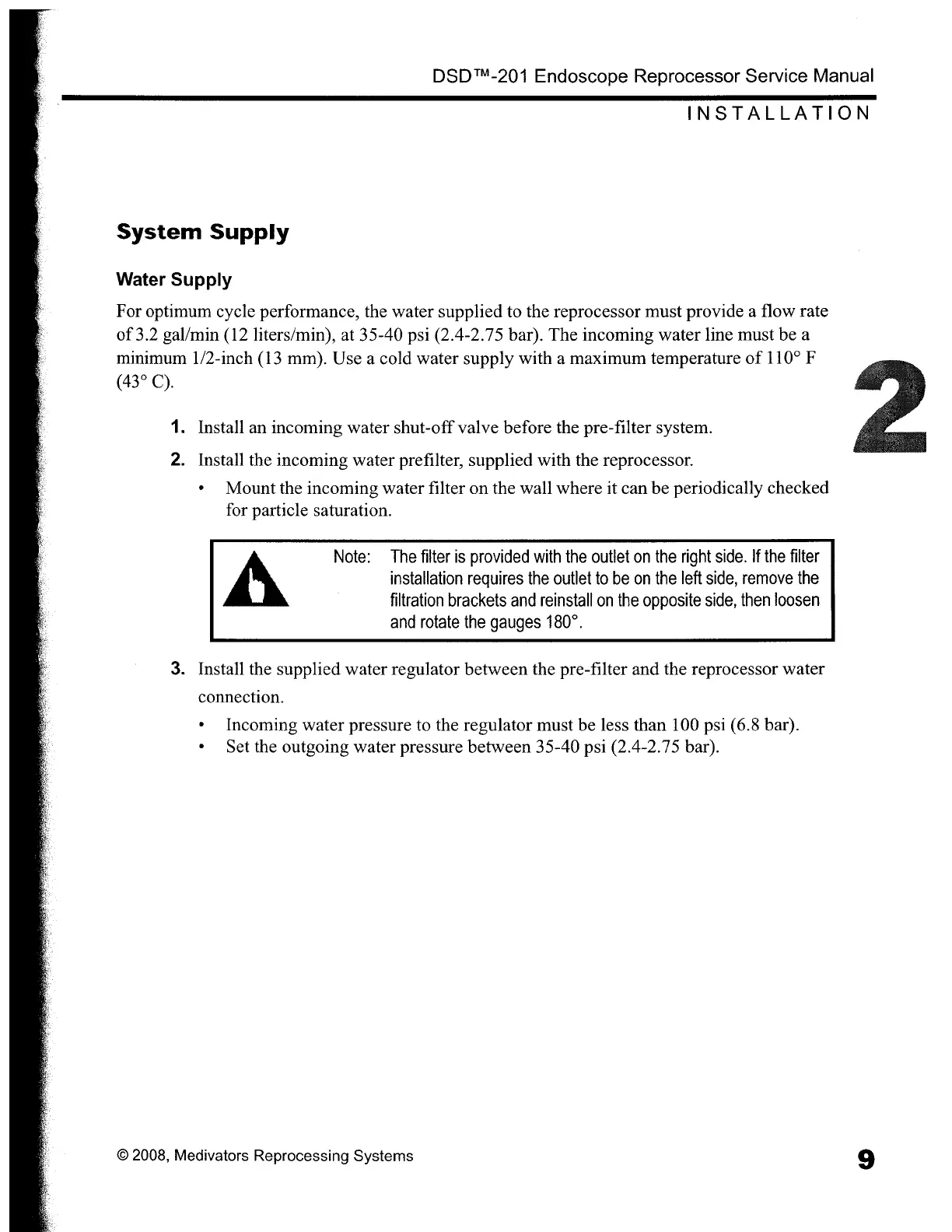

DSD™-201 Endoscope Reprocessor Service Manual
INSTALLATION
System Supply
Water Supply
For optimum cycle performance, the water supplied to the reprocessor must provide a flow rate
of 3.2 gal/min (12 liters/min), at 35-40 psi (2.4-2.75 bar). The incoming water line must be a
minimum 1/2-inch (13 mm). Use a cold water supply with a maximum temperature of 110° F
(43° C).
1. Install an incoming water shut-off valve before the pre-filter system.
2. Install the incoming water prefilter, supplied with the reprocessor.
* Mount the incoming water filter on the wall where it can be periodically checked
for particle saturation.
installation requires the outlet to be on the left side, remove the
filtration brackets and reinstall on the opposite side, then loosen
and rotate the gauges 180°.
À Note: The filter is provided with the outlet on the right side. If the filter
3. Install the supplied water regulator between the pre-filter and the reprocessor water
connection.
* Incoming water pressure to the regulator must be less than 100 psi (6.8 bar).
・ Set the outgoing water pressure between 35-40 psi (2.4-2.75 bar).
© 2008, Medivators Reprocessing Systems 9
