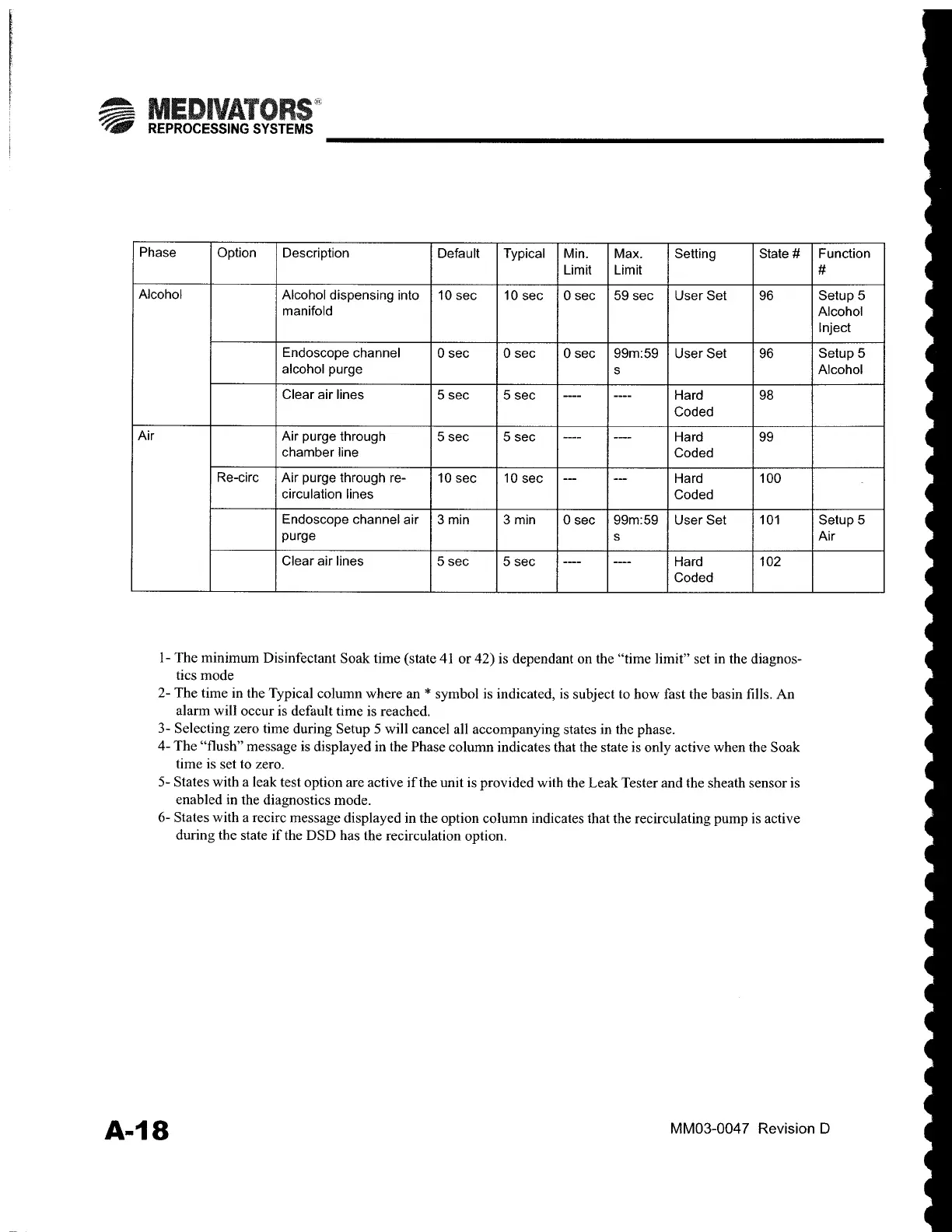

<= MEDIVATORS'
“© REPROCESSING SYSTEMS
)
Phase Option Description Default | Typical | Min. Max. Setting State # | Function
Limit | Limit #
Alcohol Alcohol dispensing into | 10 sec 10 sec |Озес | 59sec | User Set 96 Setup 5
manifold Alcohol
Inject
Endoscope channel 0 sec 0 sec 0 sec | 99m:59 | User Set 96 Setup 5
alcohol purge 5 Alcohol
Clear air lines 5 sec 5 sec ーー ---- Hard 98
Coded
Air Air purge through 5 sec 5 sec ーー -一 - Hard 99
chamber line Coded
Re-circ | Аг purge through re- 10 sec 10sec | --- ーー Hard 100
circulation lines Coded
Endoscope channel air | 3 min 3 min 0 sec | 99m:59 | User Set 101 Setup 5
purge 8 Air
Clear air lines 5 sec 5 sec ーー- 一 ~ Hard 102
Coded
1- The minimum Disinfectant Soak time (state 41 or 42) is dependant on the “time limit” set in the diagnos-
tics mode
2- The time in the Typical column where an * symbol is indicated, is subject to how fast the basin fills. An
alarm will occur is default time is reached.
3- Selecting zero time during Setup 5 will cancel all accompanying states in the phase.
4- The “flush” message is displayed in the Phase column indicates that the state is only active when the Soak
time is set to zero.
5- States with a leak test option are active if the unit is provided with the Leak Tester and the sheath sensor is
enabled in the diagnostics mode.
6- States with a recirc message displayed in the option column indicates that the recirculating pump is active
during the state if the DSD has the recirculation option.
A-18
MM03-0047 Revision D
