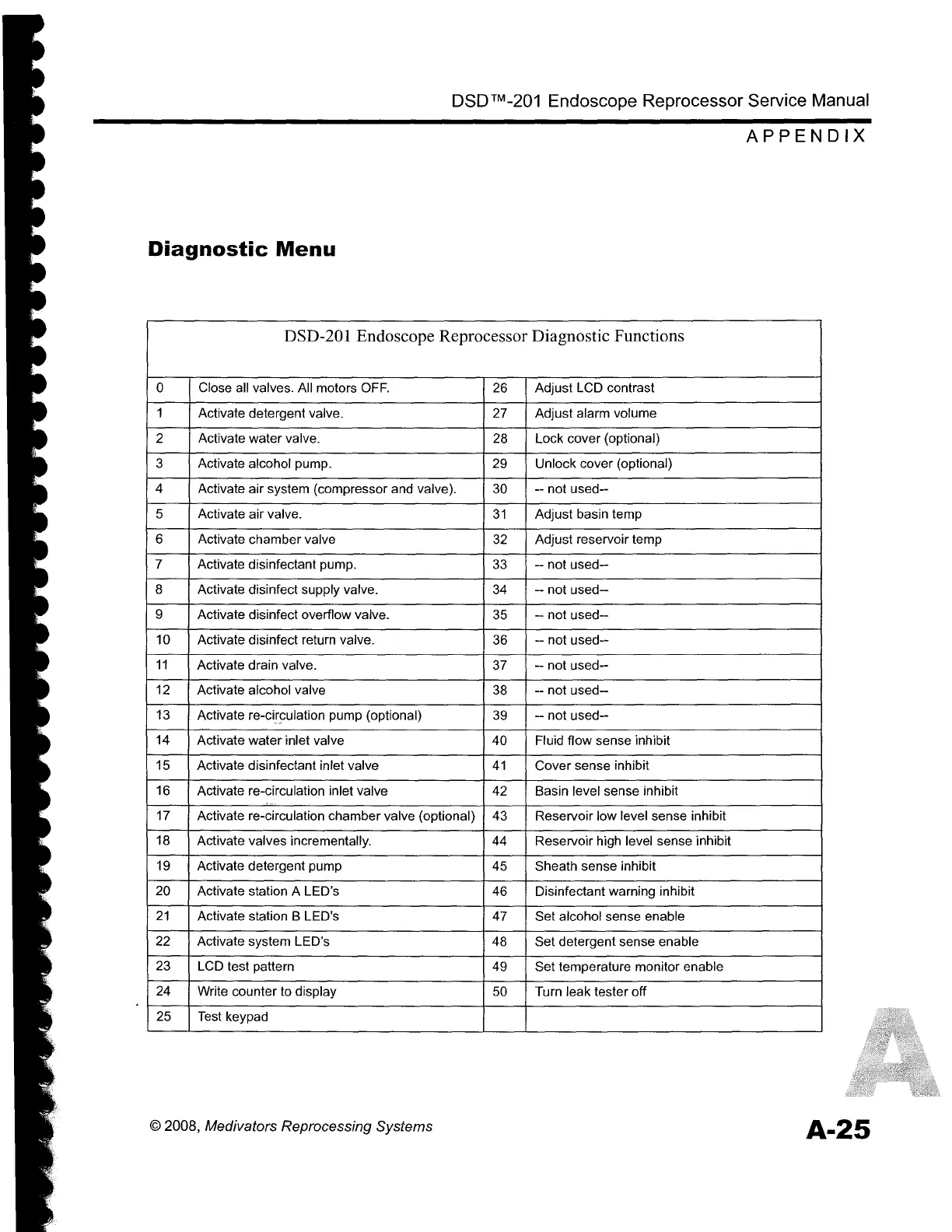

DSD™-201 Endoscope Reprocessor Service Manual
APPENDIX
Diagnostic Menu
DSD-201 Endoscope Reprocessor Diagnostic Functions
0 Close all valves. All motors OFF. 26 Adjust LCD contrast
1 Activate detergent vaive. 27 Adjust alarm volume
2 Activate water valve. 28 Lock cover (optional)
3 Activate alcohol pump. 29 Unlock cover (optional)
4 Activate air system (compressor and valve). 30 -- not used--
5 Activate air valve. 31 Adjust basin temp
6 Activate chamber valve 32 Adjust reservoir temp
7 Activate disinfectant pump. 33 -- not used--
8 Activate disinfect supply valve. 34 — not used—
9 Activate disinfect overflow valve. 35 — not used--
10 Activate disinfect return valve. 36 -- not used--
11 Activate drain valve. 37 — not used—
12 Activate alcohol valve 38 — not used—
13 Activate re-circulation pump (optional) 39 - not used--
14 Activate water inlet valve 40 Fluid flow sense inhibit
15 Activate disinfectant inlet valve 41 Cover sense inhibit
16 Activate re-circulation inlet valve 42 Basin level sense inhibit
17 Activate re-circulation chamber valve (optional) | 43 Reservoir low level sense inhibit
18 Activate valves incrementally. 44 Reservoir high level sense inhibit
19 Activate detergent pump 45 Sheath sense inhibit
20 Activate station A LED’s 46 Disinfectant warning inhibit
21 Activate station B LED's 47 Set alcohol sense enable
22 Activate system LED’s 48 Set detergent sense enable
23 LCD test pattern 49 Set temperature monitor enable
24 Write counter to display 50 Turn leak tester off
25 Test keypad
© 2008, Medivators Reprocessing Systems A-25
