Medivators DSD EDGE - Alcohol & Detergent Check Valve Replacement; Check Valve Replacement Procedure


40 
A
NNUAL PM INSTRUCTIONS
PREVENTATIVE MAINTENANCE KIT
Alcohol and Detergent Check Valve Replacement
Part Required Part number Qty
Duck Bill Check valve MV01-0040 2
Tools Required
 Needle Nose Pliers may be useful
Procedure
Refer to figure 47
 Remove the Alcohol bottle.
 Wipe the uptake tube with a soft rag.
 Remove the red/brown check valve by pulling with fingers or the use of needle nose pliers. Discard old check
valve.
 Wipe out hole from which the check valve was removed.
 Insert new check valve.
 Replace the Alcohol Bottle.
 Repeat all steps for the Detergent bottle.

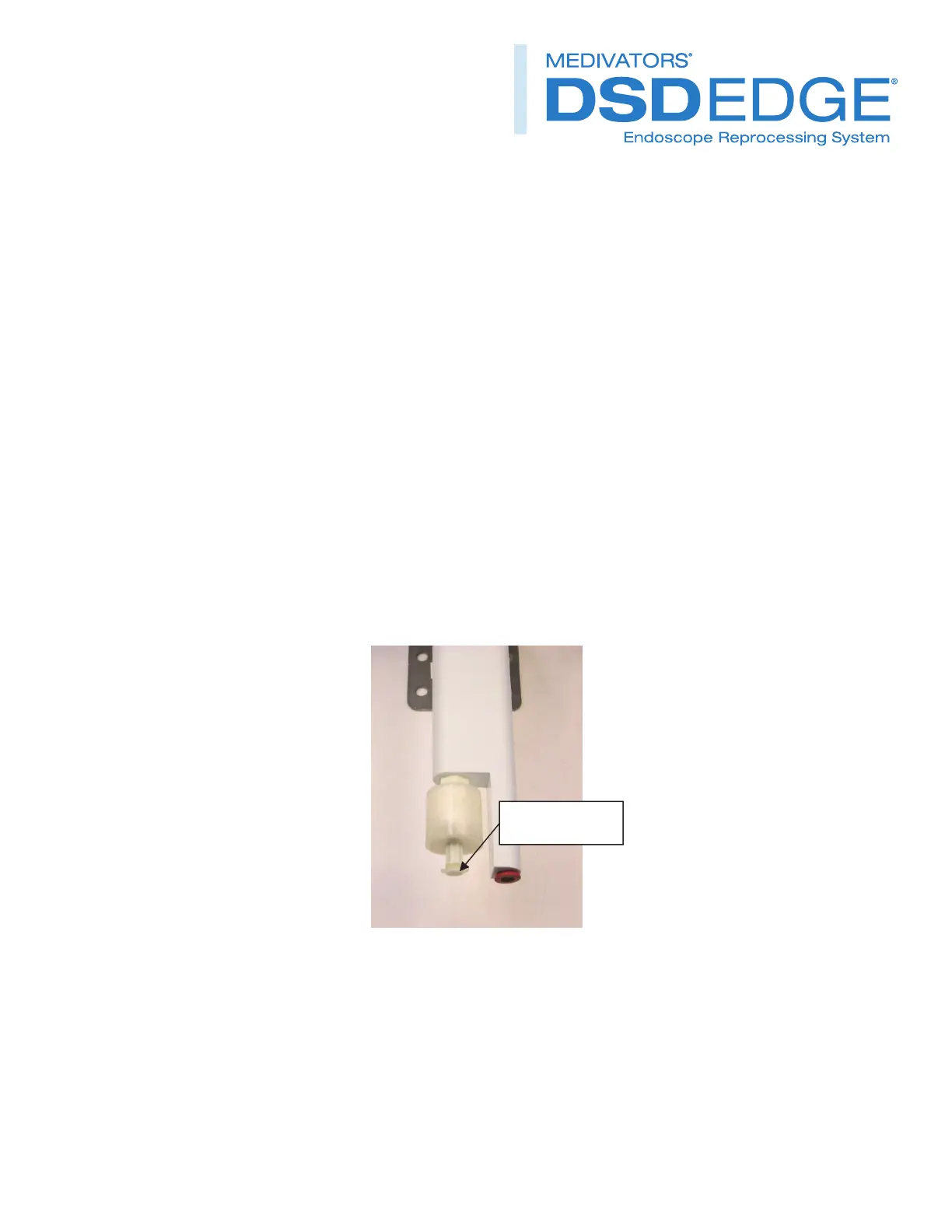

Figure 47
Checkvalve
