Basin Sensor Cover Replacement
Parts Required Part number Qty
Sensor Cover MC13-0015 2
Tools Required
 None
Procedure
 Remove original basin sensor cover.
 Replace with new cover. IMPORTANT: The orientation of the holes is critical. The single hole should be towards
the back of the basin (12 o’clock) and the two holes towards the front (5 and 6 o’clock position). See Figure 48.

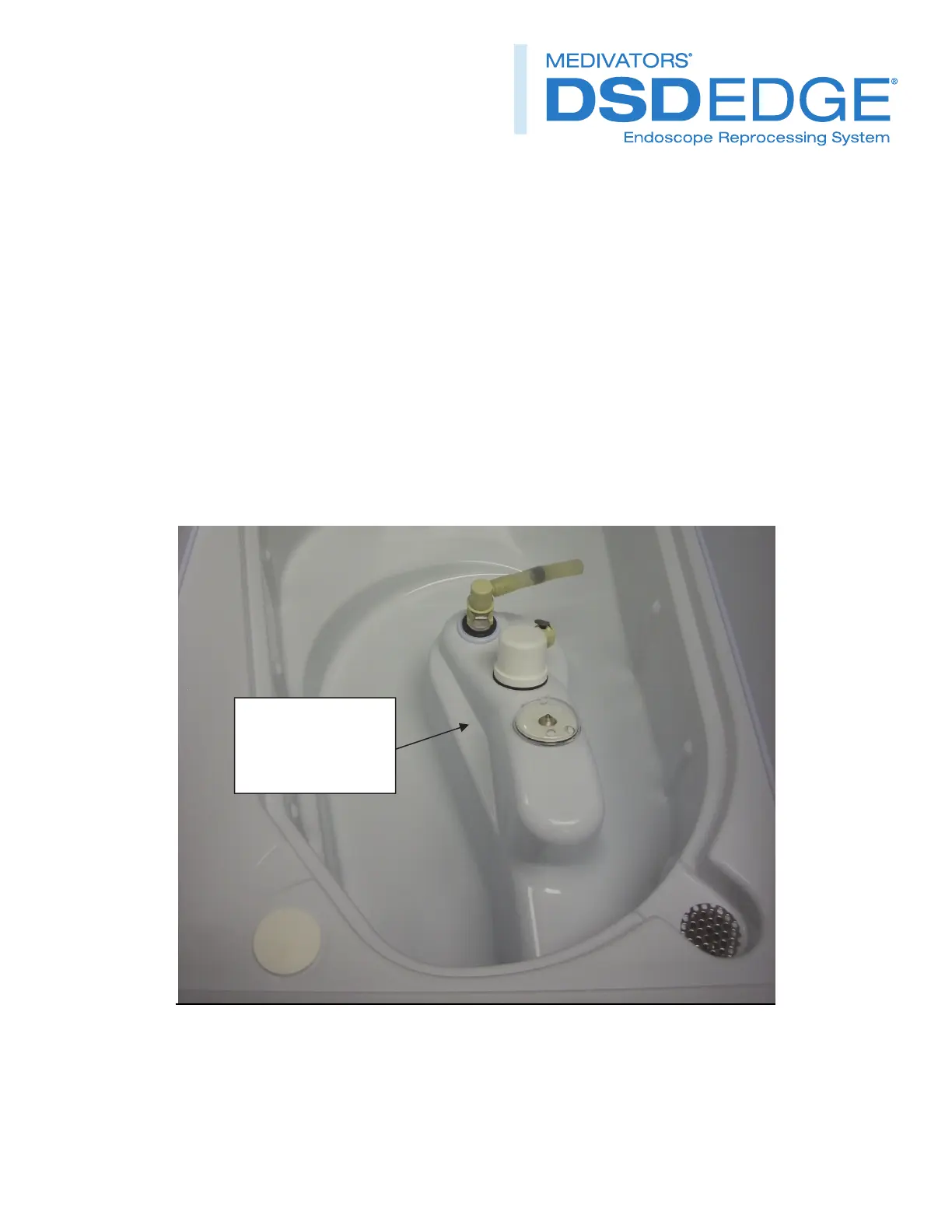

Figure 48
BasinSensorCover:
Noteposition
oftheholes.
