Assembly Instructions
IMPORTANT: Read all operating and safety instructions
before using your Medline Ultra-Light Rollator.
1. Carefully remove the rollator components from the shipping carton.

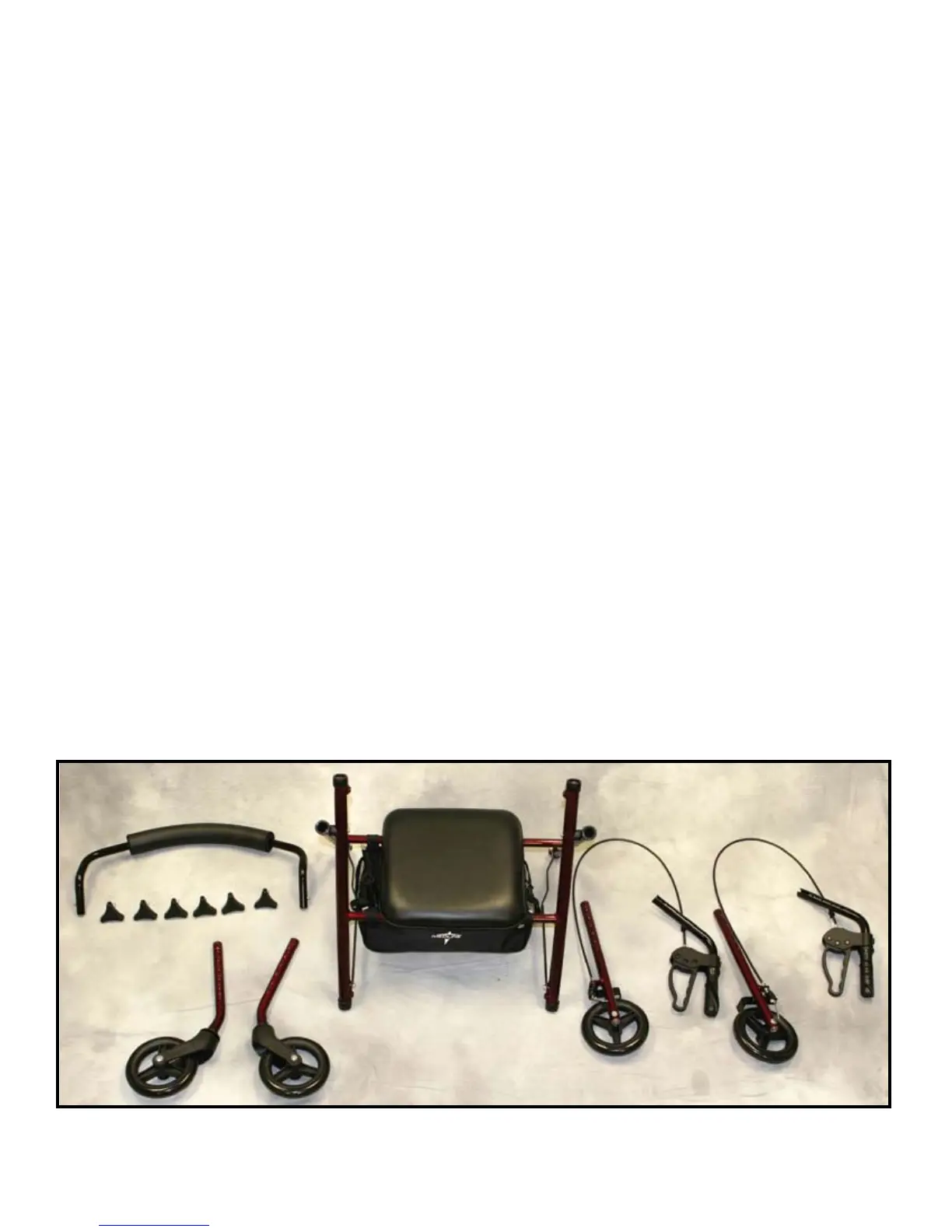

Refer to diagram (Figure 1) as needed.
• 1 Rollator Frame
• 6 Triangular Hand Screws
• 1 Bag with Shoulder Strap
• 2 Front Wheels
• 2 Rear Wheels
• 1 Backrest with Push-Buttons
• 2 Hand Grips with Brake Assembly
2. Examine all parts for shipping damage. DO NOT use the rollator if there is
apparent damage or if any parts (other than the bag) are missing. If there
are missing or damaged parts, please call Medline Customer Care toll free
at 1-800-MEDLINE.
3. Check all of the wheels to see that they are in good working order and
roll freely. Remove plastic cover from the wheels before use.
4. Unfold the Medline Rollator by pushing down on the Folding Hinge (G)
until the frame is in full extension.
