9

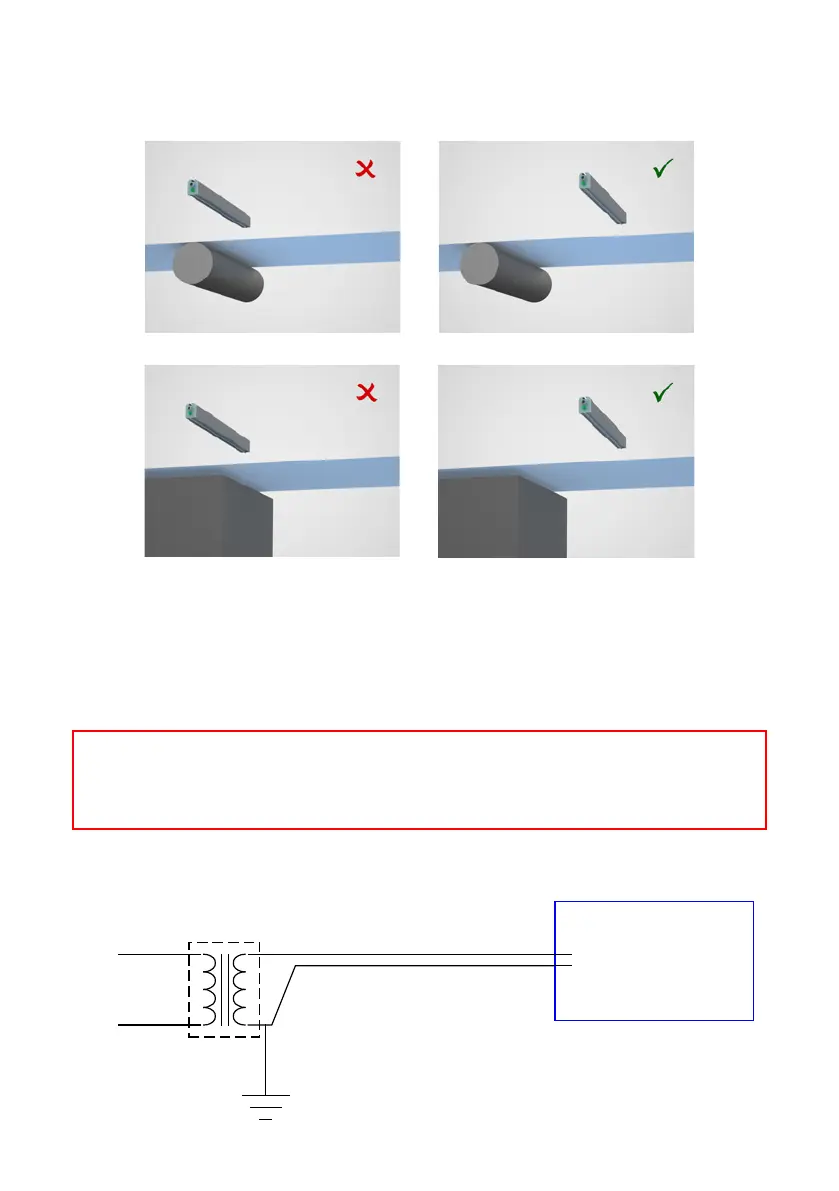

When installed at short range over a web or sheet, the bars must be positioned away
from surfaces and rollers, as shown in the following diagrams.
Your Meech distributor will be able to assist with questions regarding positioning of
your equipment.
Electrical Installation
WARNING
The 924IPS requires a grounded 24V DC supply. The 0V line must be connected to
ground. Failure to do so, will result in damage to the bar or the 24V supply.
924IPS
220V AC
24V DC
0V
Power Supply
Grounded 0V
