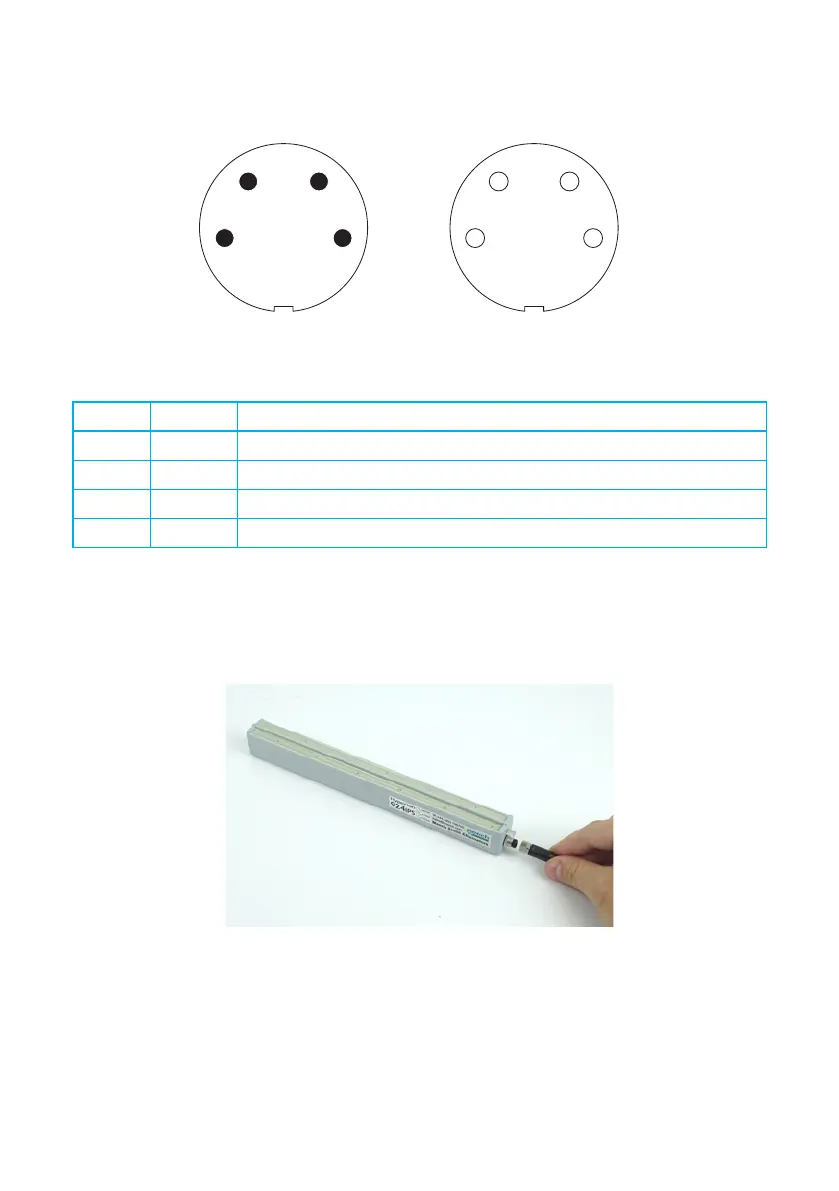

Connection to the 924IPS is via an industrial M8 4 Pin connector. With the following
pin-outs:
2 4
1 3
Male connector on Bar
4 2
3 1
Female connector on Cable
Pin Colour Function Specication
1 Brown 24V (21-27V)
2 White Clean Pin Output 0V/24V
3 Blue 0V/ Ground
4 Black No connection
Connection using Meech 24V DC power supply
The switchmode power supply has a standard IEC C5 mains socket and a 2000mm
HT cable to M8 Connector. A break-out wire from the switchmode power supply
provides the Clean Pin Alert output signal.
Ensure The voltage supply is grounded to reduce the risk of damaging the 924.
