Mega FSF500-6W - PRIMING PUMP

SC PUMP REPLACEMENT PARTS
4
Release all air from filter and piping system.
4
In a flooded suction system (water source higher than pump), pump will prime itself when suction
and discharge valves are opened.
4
If pump is not in a flooded suction system, unscrew and remove trap cover; fill trap and pump with
water.
4
Clean and inspect Ring; re-install on trap cover.
4
Replace trap cover on trap; turn clockwise to tighten cover.
NOTICE: Tighten trap cover by hand only. Pump should prime now. Priming time will depend on
vertical length of suction lift and horizontal length of suction piping.

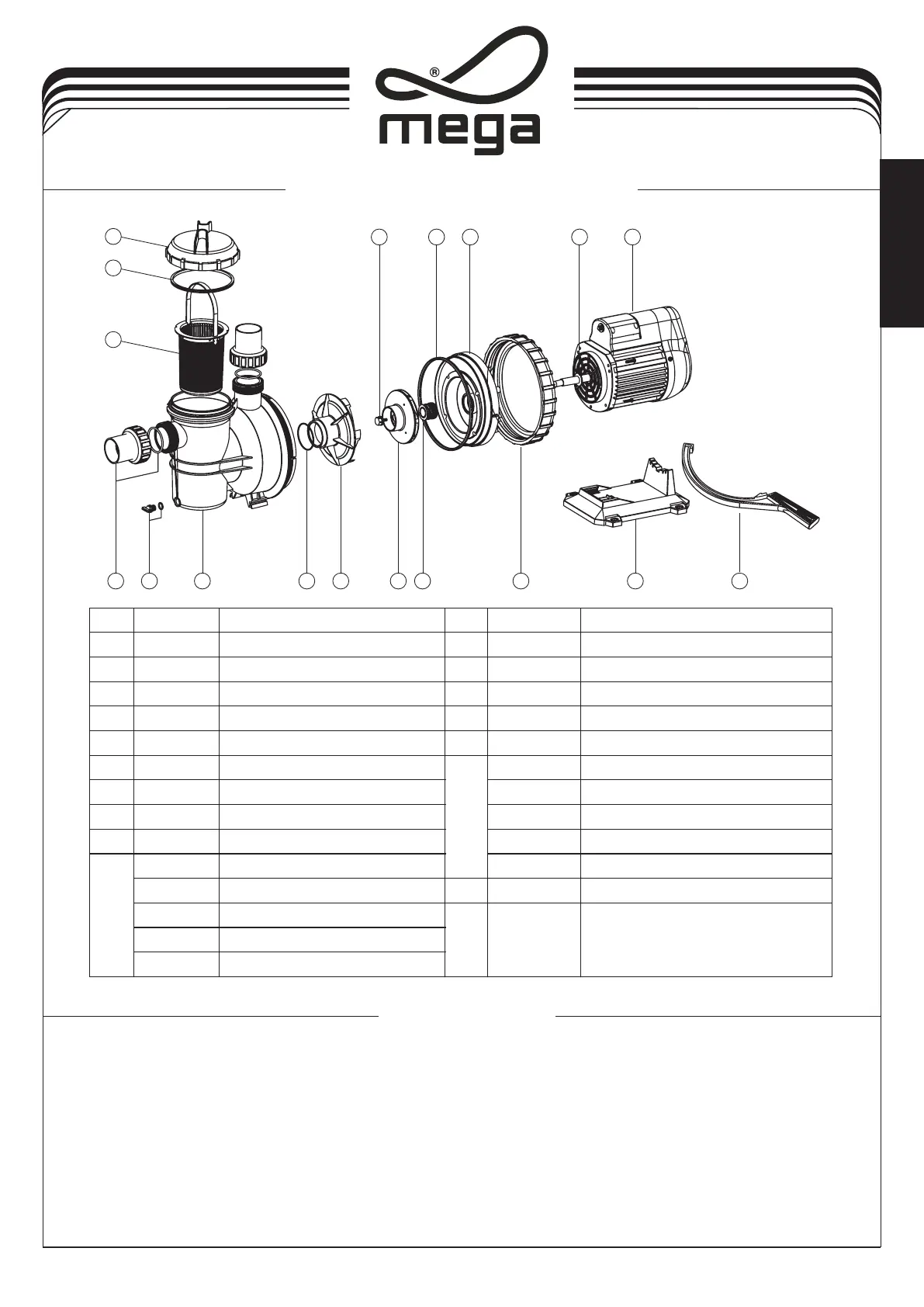

PRIMING PUMP
3-4
E
N
G
L
I
S
H
1
2
3
7
8
54 6
9
11
12
13
14
16
17
18
10
15
Item
Part No.
Description
Item
Part No.
Description
1
01041023
Transparent Lid
11
04015001
3/4"Mechanical seal
2
02011077
O-Ring for lid
12
02011089
O-ring for Flange
3
89021701
Basket with Handle
13
01111008
SC Pump Flange
4
89021702
1.5"union set
14
01021014
Ring Lock Nut for Pump Motor
5
89021703
Drain Plug With O-ring
15
02011096
Motor Slinger
6
01111006
SC Pump Body
16
89021705
Motor SC050(230V/50HZ)
7
02011105
O-ring for Diffuser
89021706
Motor SC075(230V/50HZ)
8
01111009
Diffuser
89021707
Motor SC100(230V/50HZ)
9
89021704
Impeller Screw with O-ring
89021708
Motor SC150(230V/50HZ)
10
01311009
Impeller SC050(230V/50HZ)
89021709
Motor SC200(230V/50HZ)
01311010
Impeller SC075(230V/50HZ)
17
01021022
Opening Key
01311011
Impeller SC100(230V/50HZ)
18
01111007
SC Pumps Base
01311012
Impeller SC150(230V/50HZ)
01311013
Impeller SC200(230V/50HZ)
