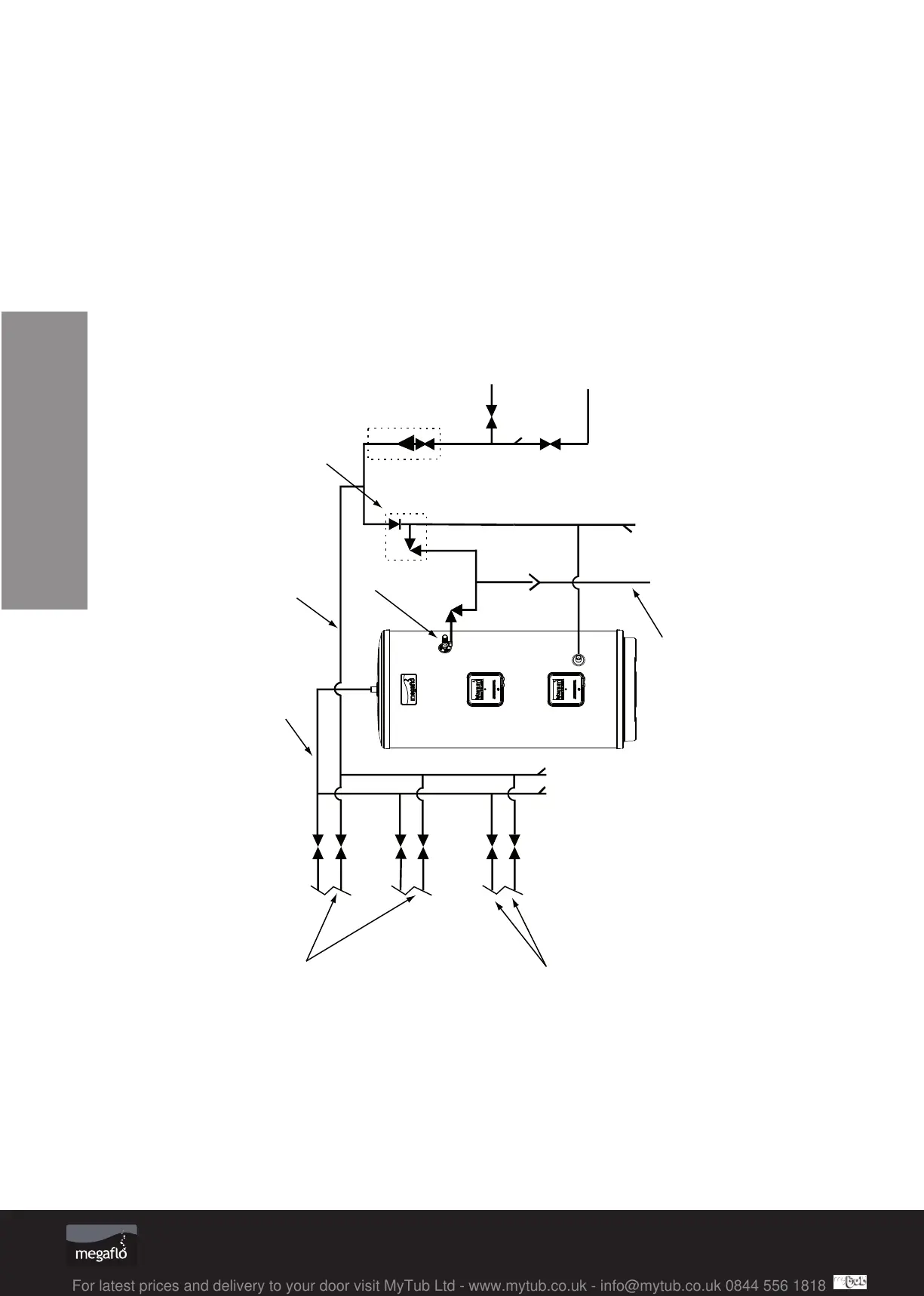

Figure 7 - Schematic installation diagram using 3 Bar Pressure Reducing Valve in conjunction

with 8 Bar Pressure Relief Valve

Tundish

Megaflo eco

Balanced cold water

draw-off

8 Bar Pressure Relief

Valve (combined

Expansion Relief

Valve/Check Valve)

3 Bar Pressure Reducing

Valve incorporating

Pressure Reducing Valve,

Strainer,and Check Valve.

(Stop cock can be ﬁtted

here)

MCWS to Kitchen

(unbalanced cold

mains supply)

Incoming Cold

Water Main

KEY

MCWS = Mains cold water supply

HWS = Hot water service

SC = Stop Cock / Isolating Valve

DOC = Drain Off Cock

Discharge pipe to atmosphere

(see page 18 “Discharge Pipework”

Isolating/Regulating

Valves, as required

Temperature/Pressure

Relief Valve

HWS supply

Balanced HWS and

MCWS to bathrooms,

showers, cloakrooms,

etc

DOC DOC

DOC




