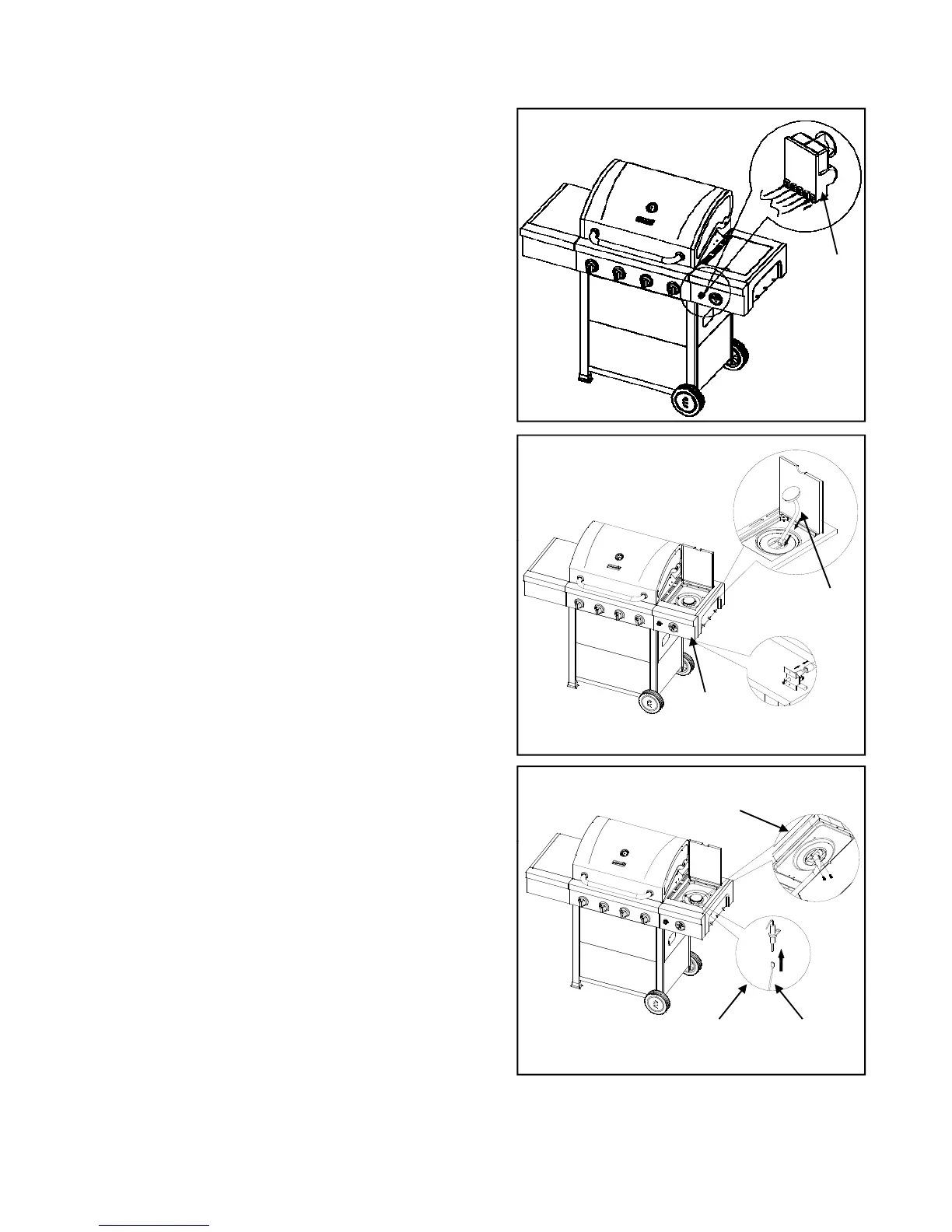

Fig. 16d) Insert the ignition wires to the Pulse Ignition Module
(AB) located on the right side burner control panel. As
shown in Fig.16.
12. Side Burner Installation
AB
Fig. 17
a) Loosen the screws which from underneath the side
burner to remove two screws which are pre-assembled
on the bottom of the Side Burner Right (K). Open side
burner lid and place the Side Tube Burner (Z) through
the opening. Place the Side Tube Burner (Z) tube over
the side burner gas Valve and make sure side burner
gas valve is inserted into side burner tube. Then with
two screws secure the side burner from underneath to
th Sid B Ri ht (K) A h i Fi 17 d
th
e
Sid
e
B
urner
Ri
g
ht
(K)
.
A
s s
h
own
i
n
Fi
g.
17
. an
d
Fig.18.a1.
Z
b) Connect Side Burner Ignition Wire (AG) to the side
burner igniter pin from underneath the Side Burner
Shelf & Control Panel. As shown in Fig.18.a2.
Fig. 18
K
a1
19
AG
a2
