Megger MFT-X1 Quick Start Guide

Insulation tests
Isloationswiderstandsmessung / Mesure d’isolement / Medición del aislamiento

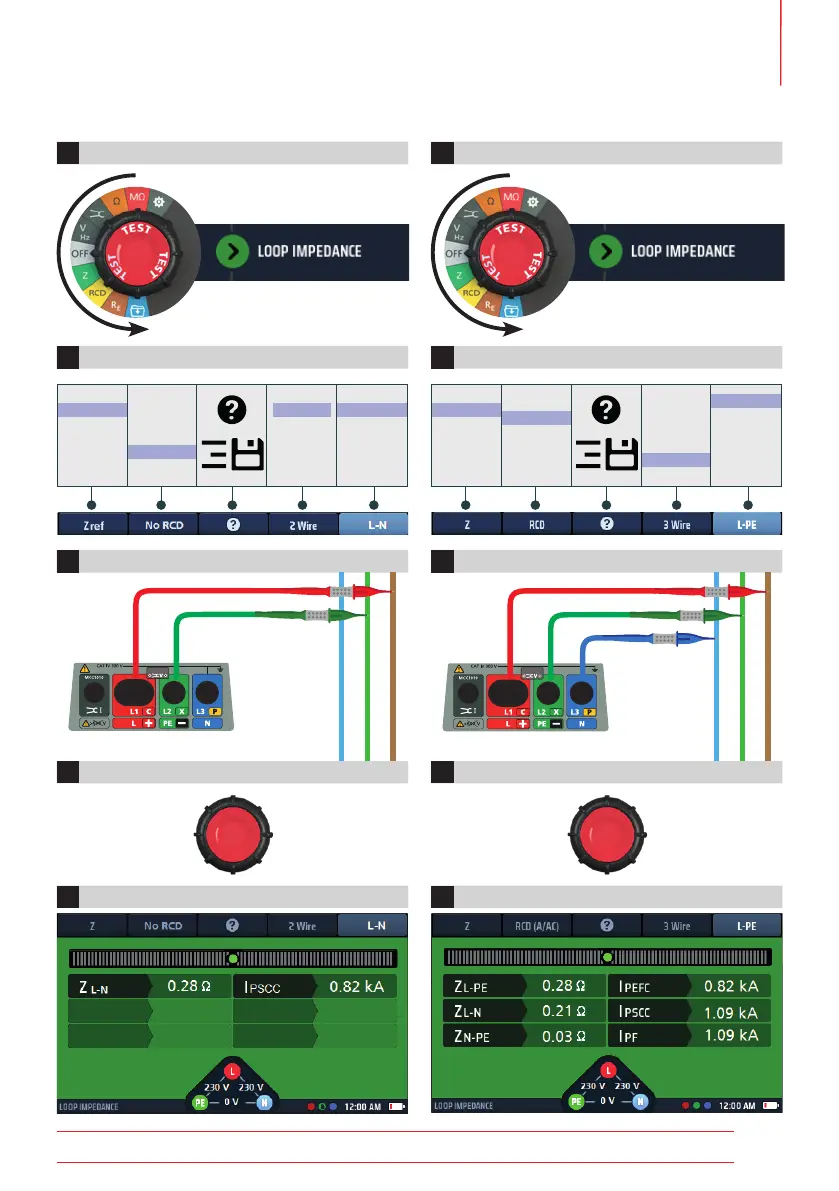

Loop Impedance
Schleifenimpedanz / Test d’impédance de boucle de terre / Prueba de impedancia de bucle
2 wire test (Z)
1
2
Z
Zmax
Zref
R1+R2
RCD
RCD EV
No RCD
2 Wire
2 Wire-
Hi Res
3 Wire
L-PE
L-N
L-L AUTO
L1-L2
L2-L3
L3-L1
3
MVC1010
4
5
3 wire test (Z)
1
2
Z
Zmax
Zref
R1+R2
RCD
RCD EV
No RCD
2 Wire
2 Wire-
Hi Res
3 Wire
L-PE
L-N
L1-L2
L2-L3
L3-L1
3
MVC1010
4
5
www.megger.com
7

Megger MFT-X1 Specifications

General

Power Supply	Rechargeable Li-ion battery
Phase Sequence Indication	Yes
Resistance Range	0.01 Ω to 100 kΩ
Protection Rating	IP54
Continuity Testing	0.01 Ω to 2000 Ω
Loop Testing	0.01 Ω to 2000 Ω
RCD Testing	Type AC, A, F, B, and B+
Frequency Measurement	15 Hz to 400 Hz
Insulation Test Voltage	50 V, 100 V, 250 V, 500 V, 1000 V
Voltage Range	12 V to 440 V AC/DC
Frequency Range	15 Hz to 400 Hz
Battery Life	Approximately 8 hours
