(2). Secure the sensor in place with the provided rubber band or nylon ties, whichever
is preferred. If using nylon ties, do not completely tighten yet, as the magnets still
need to be aligned before completely securing the sensor in place. We recommend
using the nylon ties for the most secure connection.

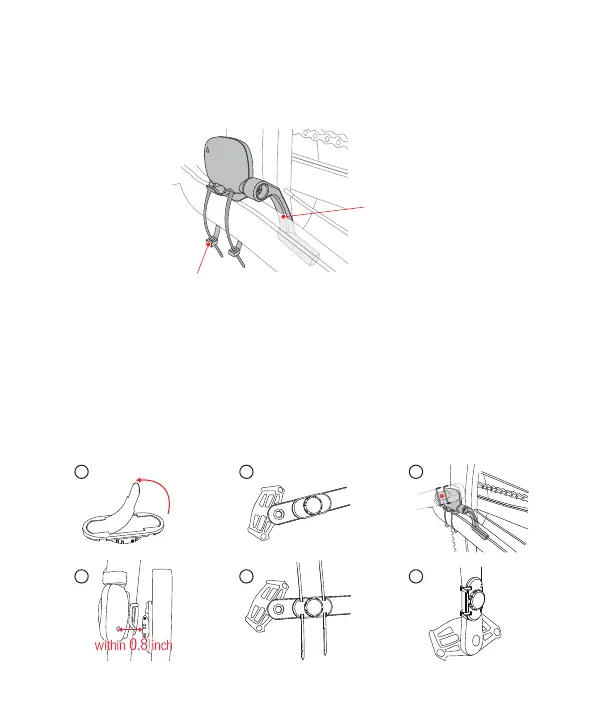

Left chain stay
Nylon tie
2. Attach the magnet
(1). Remove white liner on the back of cadence magnet and place the magnet onto
the crank, magnet facing in towards the sensor. Align so that the magnet will pass
by the indicator sensing area on the body of the MEILAN C3 sensor. The magnet will
have to within 0.8 inch (about 2cm) to get a reading. Attach the magnet to the
crank arm using two nylon ties. As such, adjust the position of the sensor and/or
magnet if required。
1 2 3
4 5 6
point A
4
