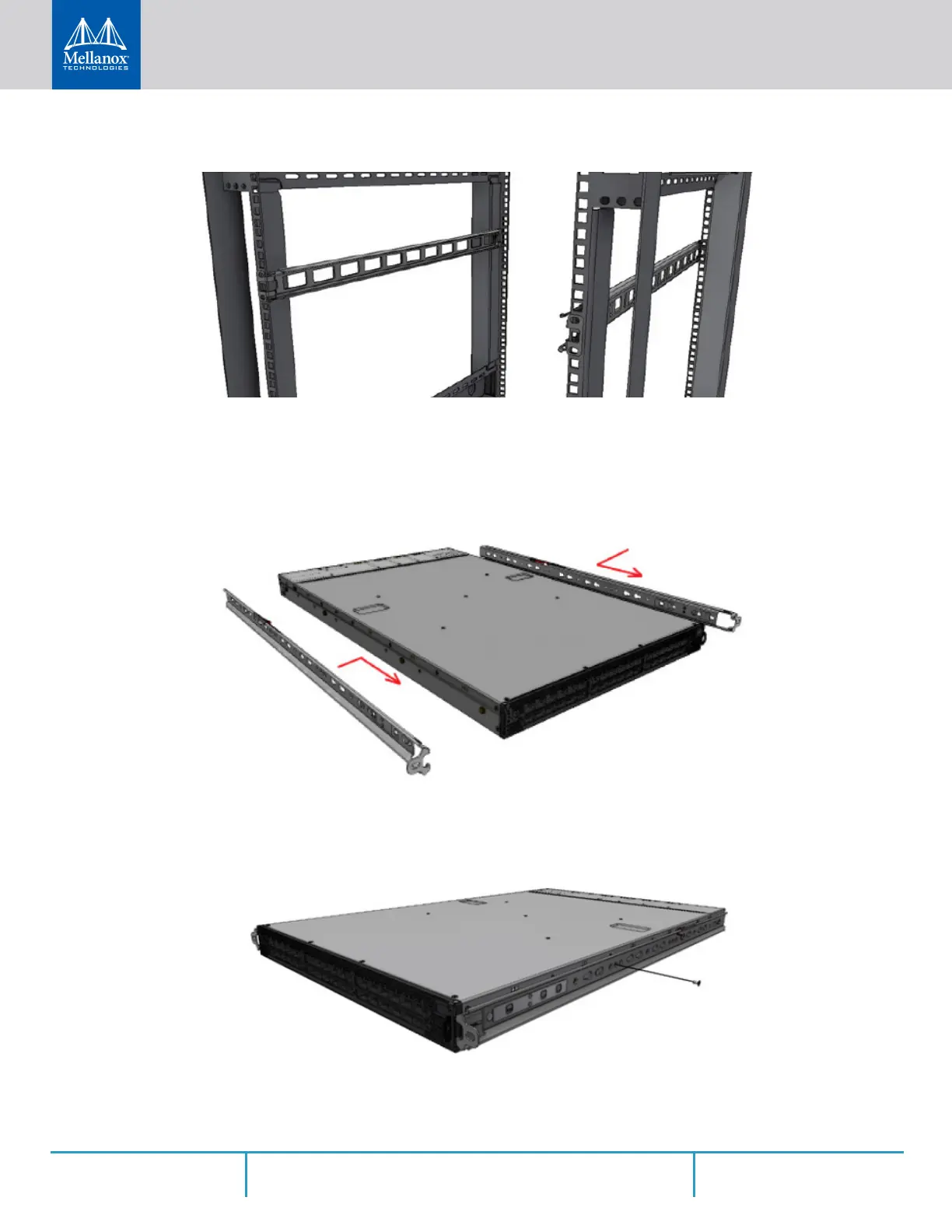

Figure 22: Mounting the Outer Rails into the Rack
Step 3. If cable accommodation is required, route the power cable and/or Eth cable through either
of the outer rails.
Step 4. Attach left and right inner rails (A+B) to the switch sides, by gently pushing the switch
chassis’ pins through the slider key holes, until locking occurs.
Figure 23: Attaching the Inner Rails to the Switch
Step 5. Secure the chassis in the inner rails by screwing the 2 flat head Phillips screws (F) in the
designated points with a torque of 1.5±0.2 Nm.
Figure 24: Securing the Chassis in the Inner Rails
Step 6. Slide the switch into the rack by carefully pushing the inner rails into the outer rails installed
on the rack.

Mellanox Technologies Spectrum SN2700 Specifications

General

Manufacturer	Mellanox Technologies
Model	Spectrum SN2700
Ports	32 x 100GbE QSFP28
Switching Capacity	6.4 Tbps
Forwarding Rate	4.76 Bpps
Throughput	6.4 Tbps
Latency	300ns
Form Factor	1U
AC Input Voltage	100-240 VAC
AC Input Frequency	50/60 Hz
Management	SNMP, CLI
MAC Address Table Size	128K
Jumbo Frames	9000 bytes
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% non-condensing
