Step 1 – Step 5

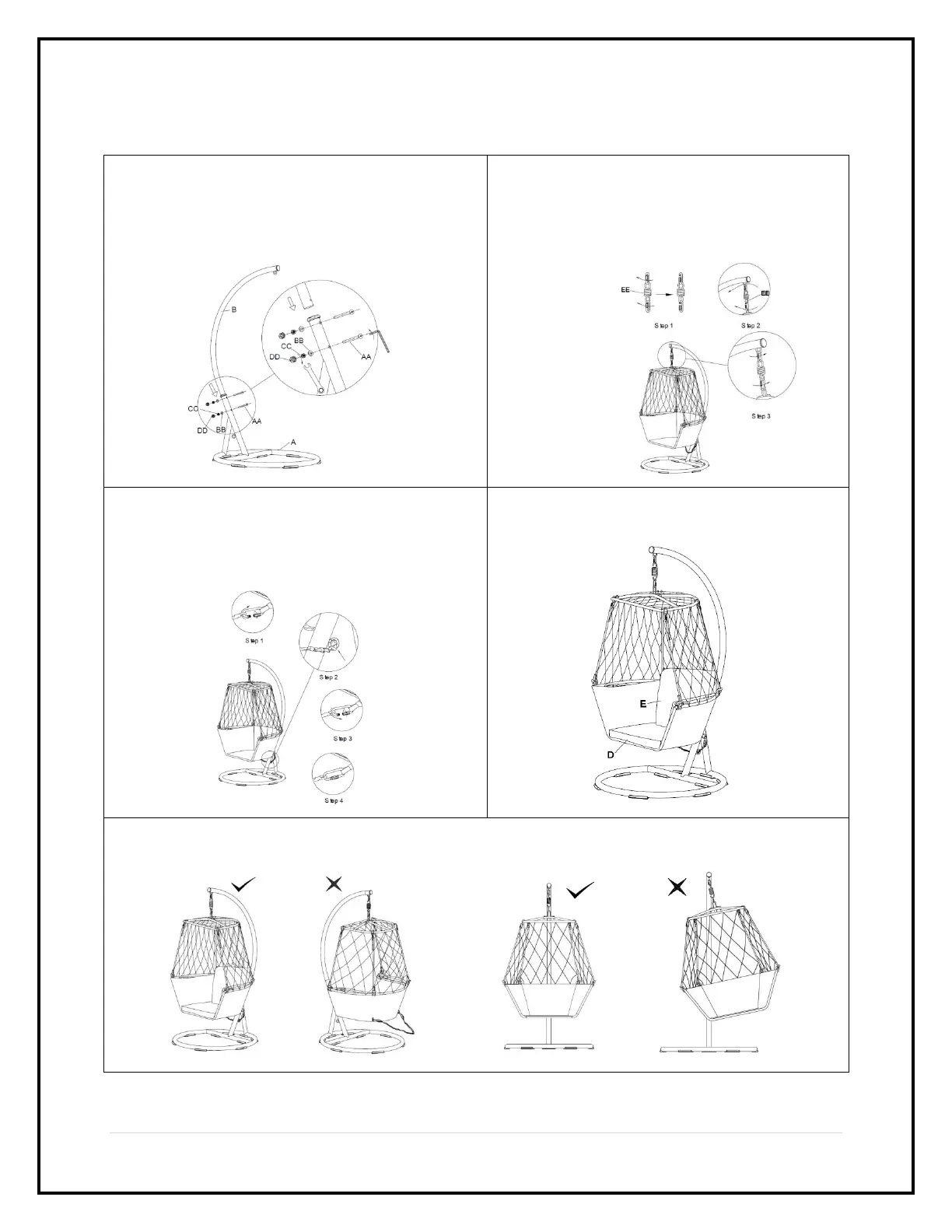

Step 1
Slide the Pole Stand (B) into the Base (A). Align holes and
insert M8x60 Bolt (AA), Washer (BB) into the
corresponding holes and tighten Nut (CC) and Bolt (AA)
with Wrench and Allen Wrench. Make sure bolts are tight.
Then put the Nut Cap on (DD).
Step 2
Open the locking carabiners by turning the locking bolt.
See step 1.Hang the Spring (EE) to the pole stand (B)
using the carabiner, while attaching the opposited end
to the loop on the chair frame (C) as shown in step 2.
Close and lock both top and bottom carabiner as
shown in step 3.
Step 3
Make sure you have fully tightened the carabiners. You
can use the wrench to tighten the lock. Open either
carbineer on the bottom of the frame and place it thru the
ring on the base as shown. Re-attach carbineer to leash
strap and lock securely by hand.
Step 4
Place the back cushion and seat cushion on the frame.
Step 5
Please make sure the chair seat is right ahead of the hanging pole before sitting. Do not cause chair to swing outside
base area.
