Memorex MP3126 - Location of Controls; Device Controls and Indicators

4

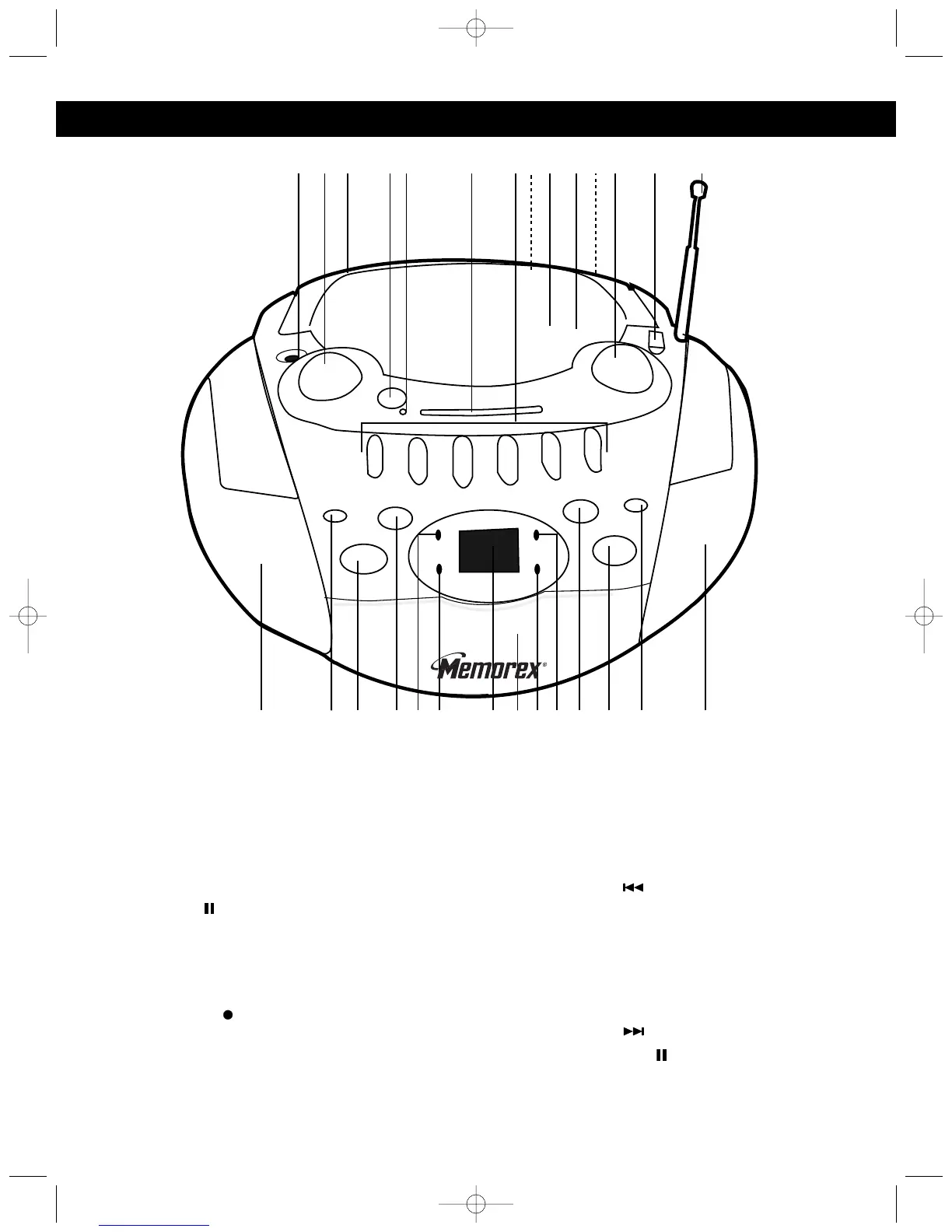

LOCATION OF CONTROLS
1
16
15 2817 18 212019 23 2422 25 26 27
2 3 4 5 6 9 1210 1187 13 14
1. PHONES (Headphones) Jack
2. VOLUME Control
3. Carrying Handle
4. X-BASS Button
5. FM STEREO Indicator
6. AM/FM Dial Scale and Pointer
7. Cassette Buttons (left to right):
PAUSE ( )
STOP/EJECT (■)
F.FWD (¥¥)
REWIND ()
PLAY (¥)
RECORD ( )
8. Battery Compartment (Rear of Unit)
9. CD Compartment
10. CD Door OPEN/CLOSE Area
11. AC Power Jack (Rear of Unit)
12. TUNING Control
13. Function Switch (POWER
OFF/TAPE/CD/FM/AM)
14. FM Antenna
15. Speaker
16. REPEAT Button
17. STOP (■) Button
18. Skip/Search ( ) Button
19. POWER Indicator
20. REPEAT Indicator
21. Display
22. Cassette Compartment
23. PROGRAM Indicator
24. PLAY/PAUSE Indicator
25. Skip/Search ( ) Button
26. PLAY/PAUSE (/) Button
27. PROGRAM Button
28. Speaker
