LOCATION OF CONTROLS (CONTINUED)
14
13
15
16
17
12
12. S-VIDEO IN Jack (Rear of Unit) - Connect an external unit that utilizes an S-video cable to this jack.
13. VHF/UHF IN Jack (Rear of Unit) - Connect a VHF/UHF antenna, CATV, VCR, satellite, etc. cable to this jack.
14. AV AUDIO/VIDEO OUT Jacks - Audio and Video signal cables from an external source can be connected
here. AV button must be set to regular TV or CATV.
15. AV1 AUDIO/VIDEO IN Jacks - Audio and Video signal cables from an external source can be connected
here. AV button must be set to VIDEO1.
16. AV2 AUDIO/VIDEO IN Jacks - Audio and Video signal cables from an external source can be connected
here. AV button must be set to VIDEO2.
17. AV2 (DVD) Cr,Cb,Y IN Jacks - Cr, Cb, Y signal cables from an external source can be connected here. AV
button must be set to VIDEO2.

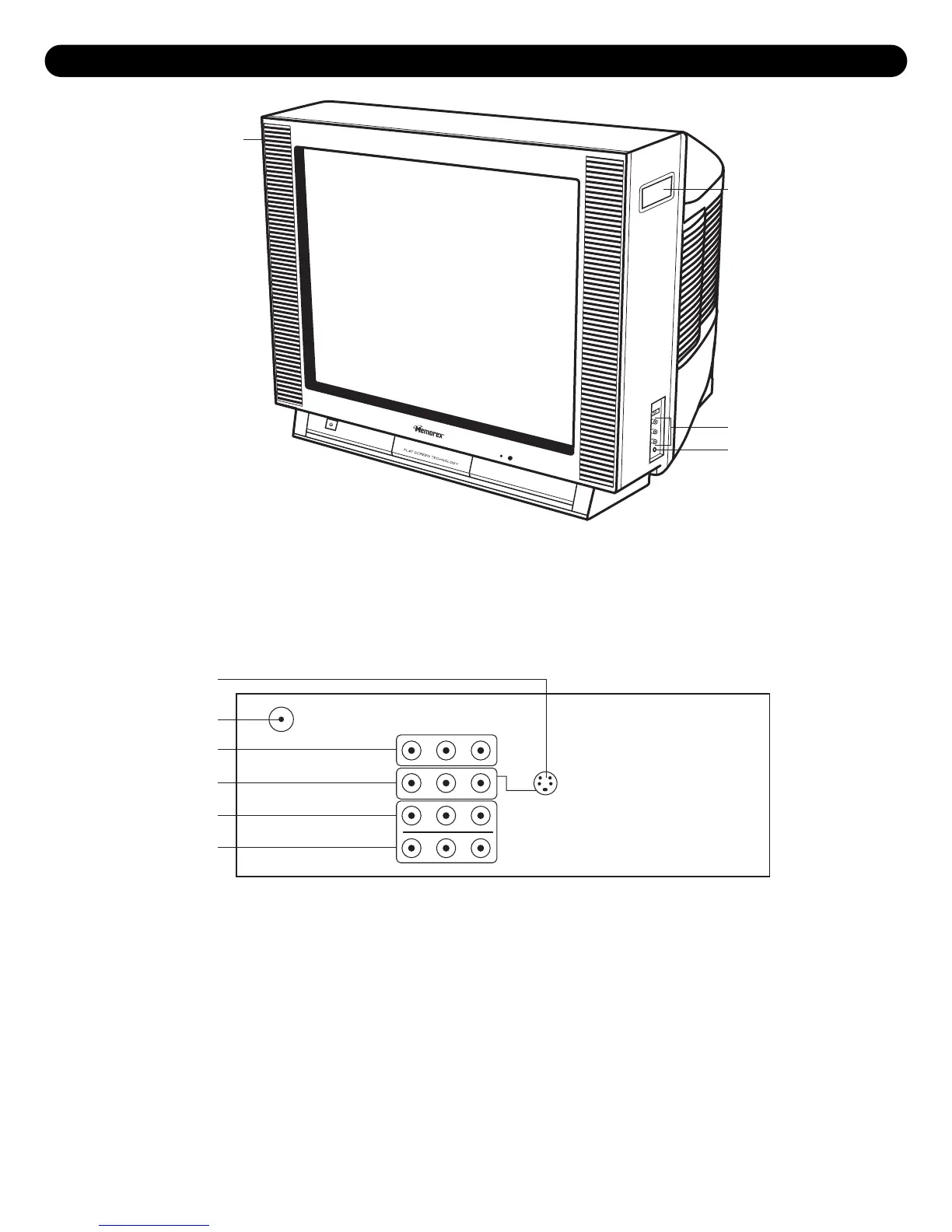

REAR PANEL
SIDE
9. Carrying Handles
10. AV3 AUDIO/VIDEO IN Jacks - Audio and Video
signal cables from an external source can be
connected here. AV button must be set to VIDEO3.
11. Headphone Jack - Headphones (3.5mm) can be
connected here for private listening.
