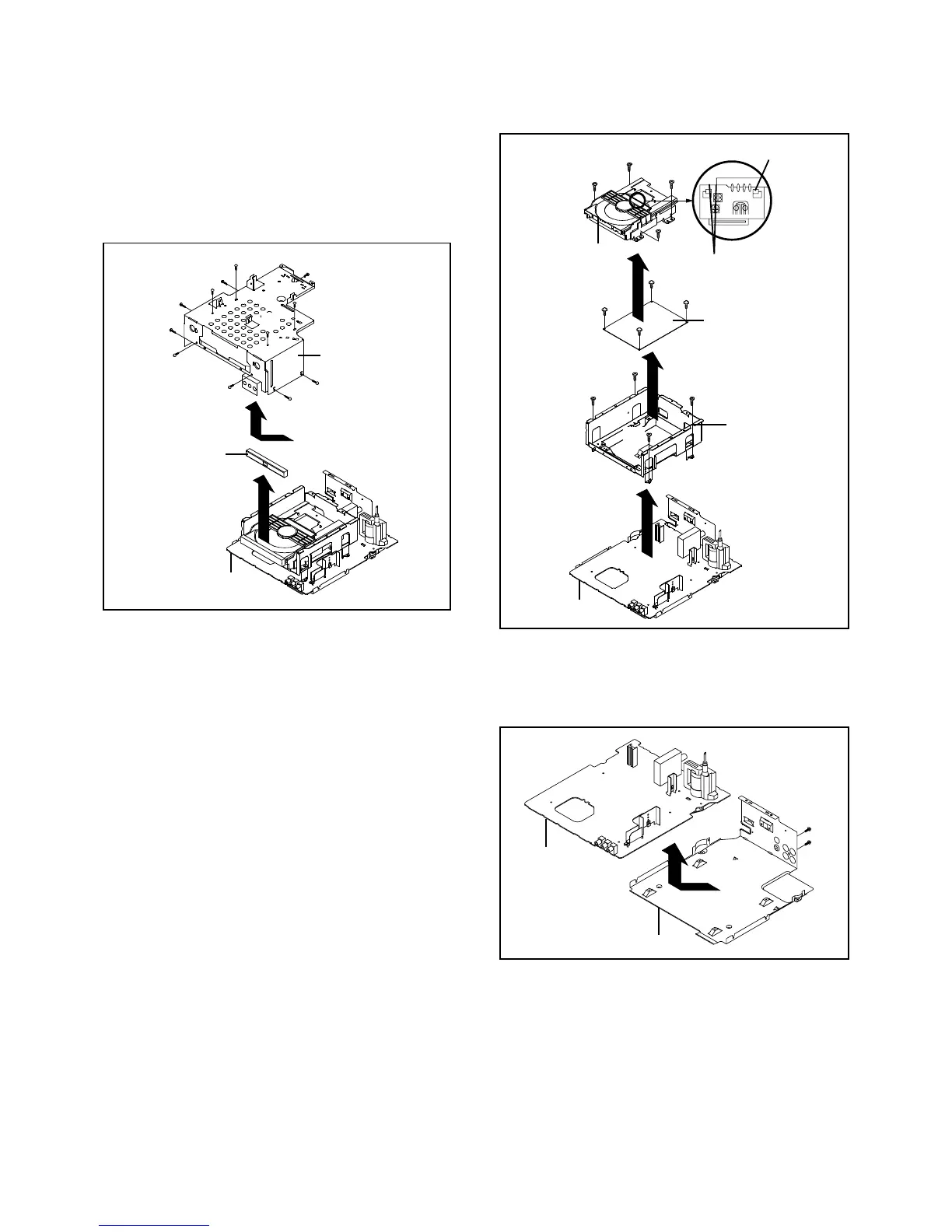

DISASSEMBLY INSTRUCTIONS
B1-2
1-5: FRONT TRAY PLATE/TOP SHIELD
(Refer to Fig. 1-5)
1.
2.
3.
4.
Fig. 1-6
Unlock the 2 supports (1).
Remove the Front Tray Plate in the direction of arrow (A).
Remove the 12 screws (2).
Remove the Top Shield in the direction of arrow (B).
Fig. 1-5
1-6: DVD PCB/DVD DECK (Refer to Fig. 1-6)
1.
2.
3.
4.
5.
6.
7.
8.
9.
Make the short circuit on the position as shown Fig. 1-6
using a soldering. If you remove the DVD Deck with no
soldering, the Laser may be damaged.
Disconnect the following connectors:
(CP8001 and CP8002).
Remove the 4 screws (1).
Remove the Angle Deck in the direction of arrow (A).
Disconnect the following connectors:
(CP2001, CP2301 and CP2302).
Remove the 4 screws (2).
Remove the DVD Deck in the direction of arrow (B).
Remove the 4 screws (3).
Remove the DVD PCB in the direction of arrow (C).
When the installation of the DVD Deck, remove all the
soldering on the short circuit position after the connection of
Pick Up PCB and DVD PCB connector.
NOTE
Top Shield
Front Tray Plate
(B)
(A)
(1)
(1)
(2)
DVD Block
(2)
(2)
(2)
(2)
(2)
(2)
(2)
(2)
(2)
(2)
(2)
(3)
AV PCB
(1)
DVD Deck
(1)
(A)
(1)
(1)
(2)
(2)
(2)
(B)
(C)
Make the sort circuit
using a soldering.
Pick Up PCB
(2)
(3)
(3)
Angle Deck
DVD PCB
(3)
1-7: AV PCB (Refer to Fig. 1-7)
1.
2.
3.
Remove the screw (1).
Remove the screw (2).
Remove the AV PCB in the direction of arrow.
Fig. 1-7
(1)
AV PCB
(2)
Bottom Plate
