ELECTRICAL ADJUSTMENTS
D-4
2-15: CONTRAST MAX
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (22) on the remote control to
select "CNTX".
Press the RIGHT/LEFT button on the remote control
until the contrast step No. becomes "30"
Receive a broadcast and check if the picture is normal.
Press the INPUT SELECT button on the remote
control to set to the AV mode.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (34) on the remote control to
select "CNTXA".
Press the RIGHT/LEFT button on the remote control
until the contrast step No. becomes "31"
Receive a broadcast and check if the picture is normal.
Press the TV/DVD button on the remote control to set
to the DVD mode.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (46) on the remote control to
select "CNTXD".
Press the RIGHT/LEFT button on the remote control to
set the same step numbers as the AV.
2-16: SHARPNESS
1.
2.
3.
4.
5.
6.
7.
8.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (28) on the remote control to
select "SHRP".
Check if the step No.SHRP is "11".
Press the AV button on the remote control to set to the
AV mode.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (40) on the remote control to
select "SHARPA".
Check if the step No.SHRP is "11".
Press the DVD button on the remote control to set to the
DVD mode.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (52) on the remote control to
select "SHARPD".
Check if the step No.SHRP is "05".

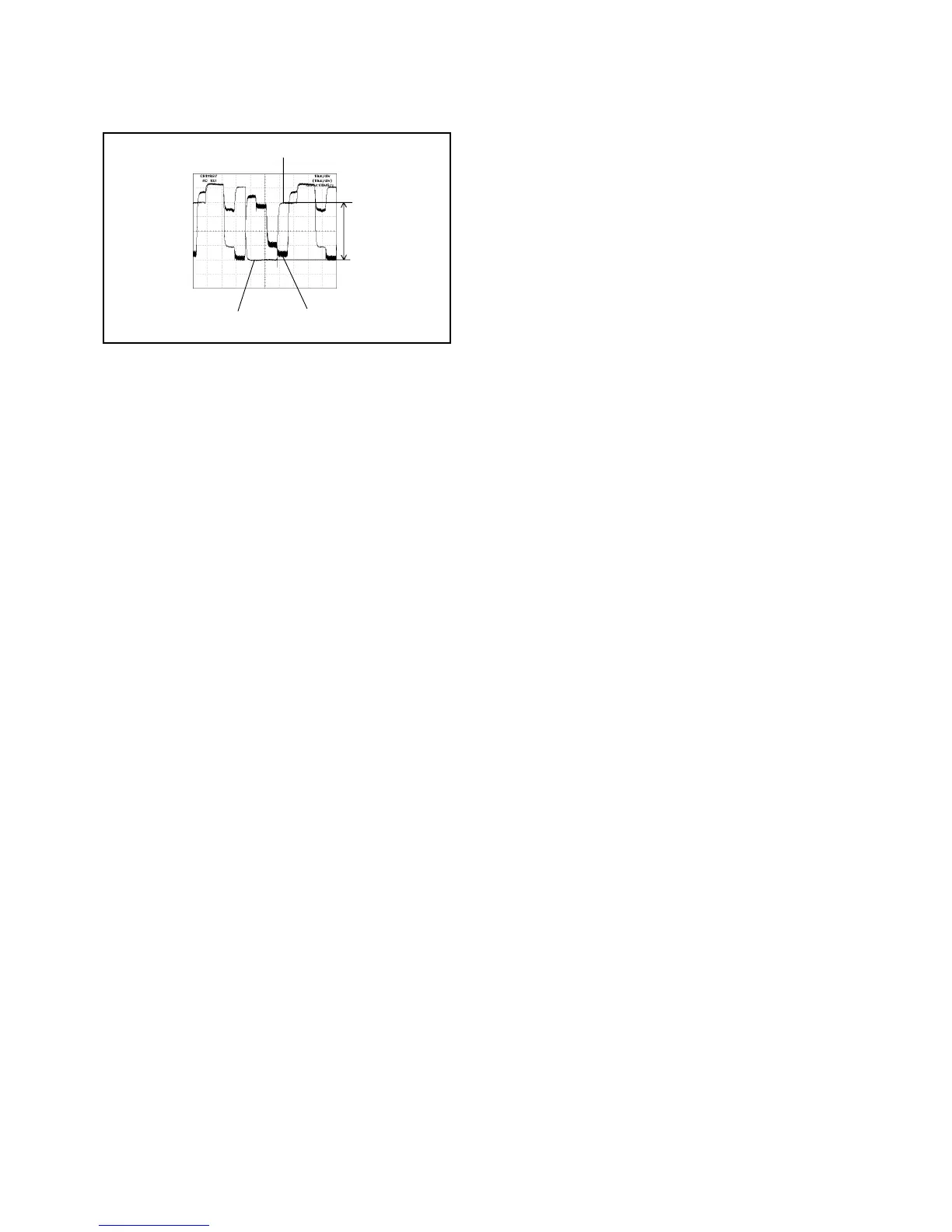

Fig. 2-4
White 0%
White 100%
100%
Red Level
2-18: Confirmation of Fixed Value (Step No.)
Please check if the fixed values of the each adjustment
items are set correctly referring below.
NO.
02
05
06
08
10
11
16
19
20
21
23
25
26
29
31
32
33
35
37
STEP NO.
00
00
00
04
0C
03
05
58
25
25
00
70
05
00
58
25
25
00
70
FUNCTION
OSD CONTRAST
H.BLK L
H.BLK R
V POSITION
V S CORRECTION
V.COMP
G DRIVE
BRIGHTNESS(MAX)
BRIGHTNESS(MIN)
CONTRAST(CENT.)
CONTRAST(MIN)
COLOR(MAX)
COLOR(MIN)
SUB BIAS
BRI. AV(MAX)
BRI. AV(MIN)
CONT. AV(CENT.)
CONT. AV(MIN)
COL. AV(MAX)
NO.
38
41
43
44
45
47
49
50
53
55
56
57
59
60
61
62
68
STEP NO.
05
00
58
25
25
00
70
05
00
58
25
25
00
00
00
40
3F
FUNCTION
COL. AV(MIN)
SUB BIAS
BRI. DVD(MAX)
BRI. DVD(MIN)
CONT. DVD(CENT.)
CONT. DVD(MIN)
COL. DVD(MAX)
COL. DVD(MIN)
SUB BIAS
BRI. GAME(MAX)
BRI. GAME(MIN)
CONT. GAME(CENT.)
CONT. GAME(MIN)
SUB BIAS
TUNING V MUTE
POWER ON V MUTE
H.FREQ
2-17: OSD CONTRAST
1.
2.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (02) on the remote control to
select "OSD C".
Check if the step No.OSD C is "00".
