Memorex MVR2040-A - Fluorescent Display; Location of Connectors

11
ENGLISH
UHF/VHF
OUT(TV)
IN(ANT)
VIDEO
OUT IN
AUDIO
3CH 4CH

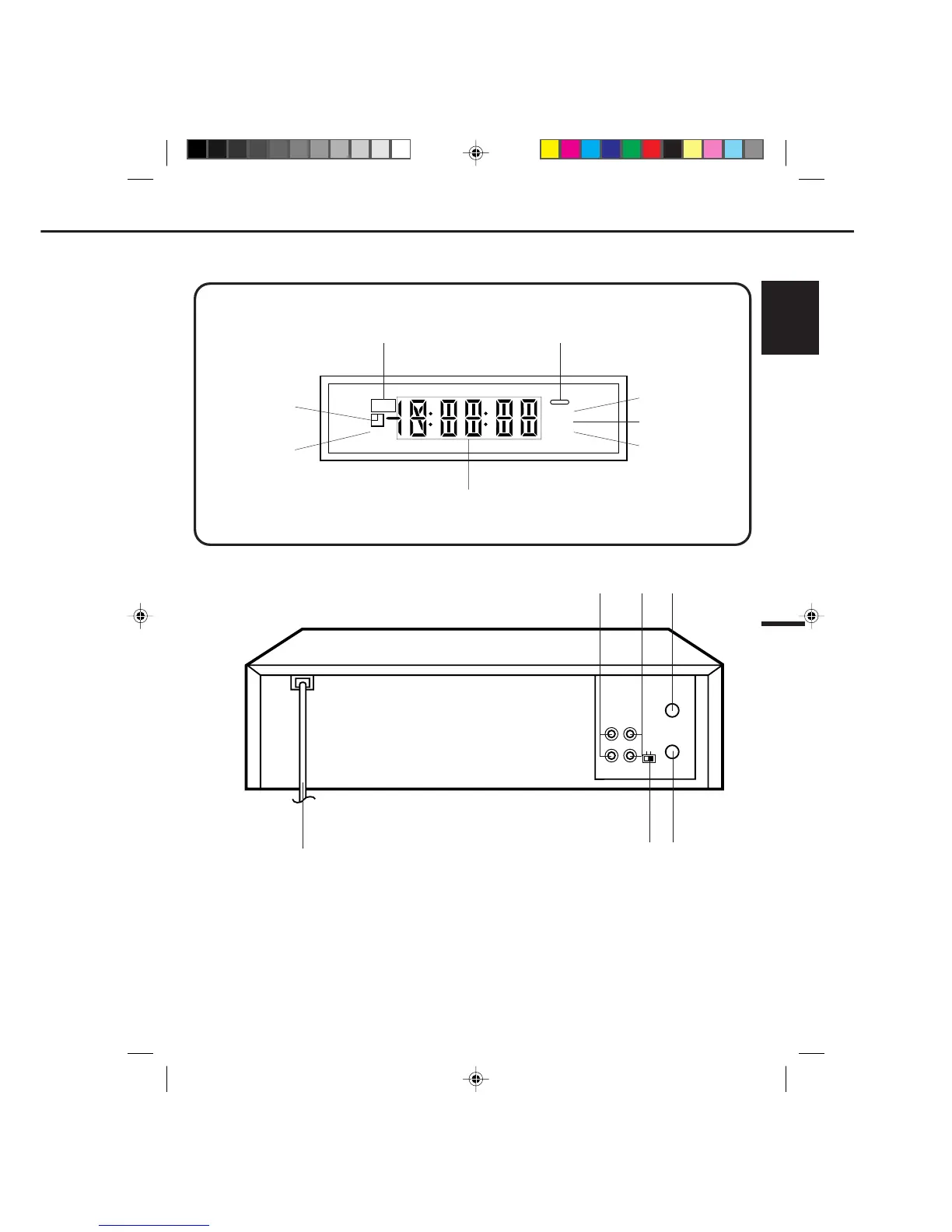

FLUORESCENT DISPLAY
OTR
SLP
VCR
ATR
APM
One Touch Timer
Recording
Power Indicator
Timer Record
Tape Speed
ATR (Auto Tracking)
VCR
AM/PM
Multi-Function Display
REAR
12
4
3
6
DESCRIPTION OF CONTROLS
VHF/UHF OUT (TV) Jack - Used to output VHF/UHF
or CATV signals to a TV.
3/4 Channel Selector Switch - Selects the channel
through which the VCR outputs its signal to a TV.
AC Power Cord - Connect to a 120V 60Hz outlet.
AUDIO/VIDEO OUT Jacks - Used to output audio
and video signals to a TV, amplifier or VCR.
AUDIO/VIDEO IN Jacks - Audio and video signal
cables from an external source can be connected hear
VHF/UHF IN (ANT) Jack - Connect a VHF/UHF
antenna or CATV cable to this jack.
1.
2.
3.
4.
5.
6.
LOCATION OF CONNECTORS
5
