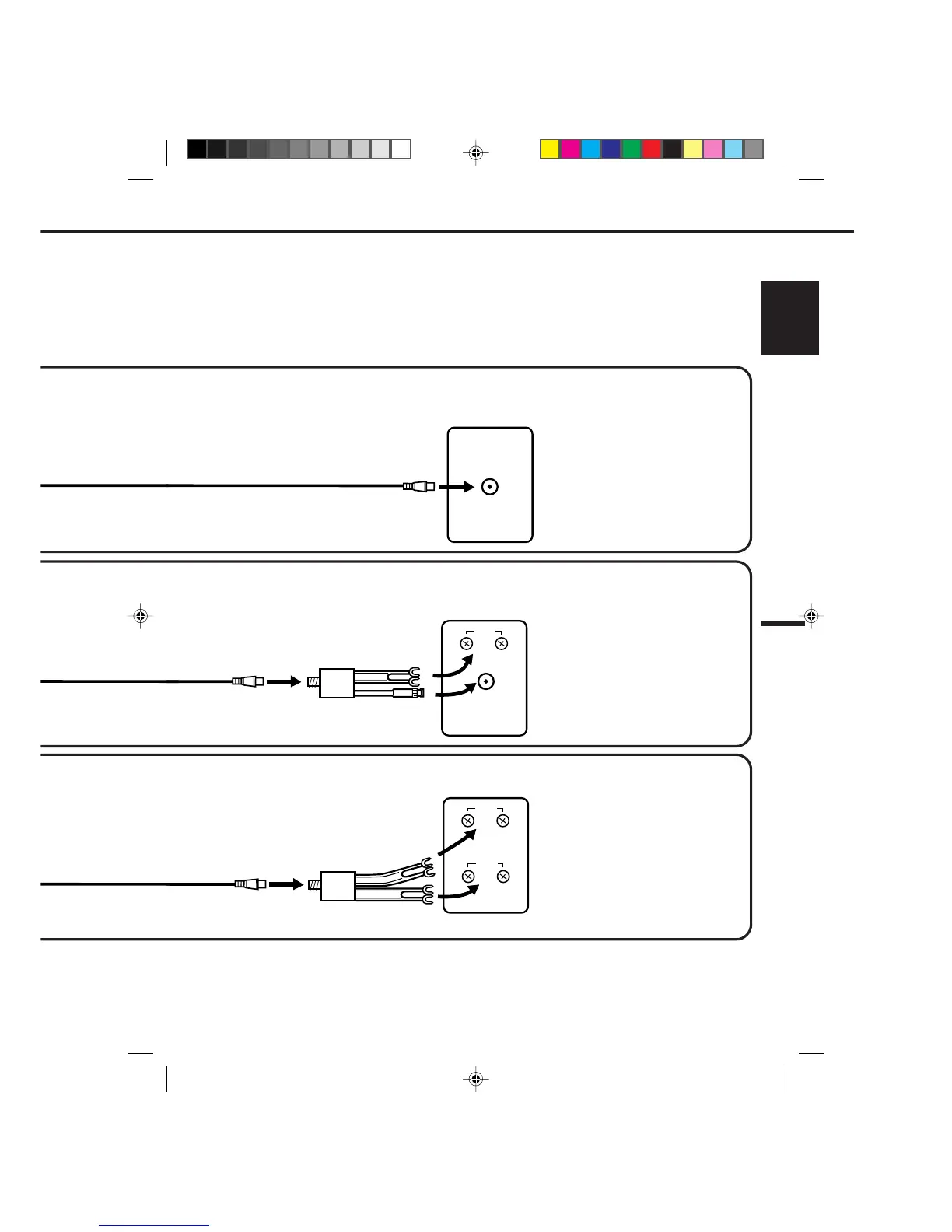

TV with single 75 ohm
VHF/UHF antenna input
TV with 300 ohm UHF
and 75 ohm VHF
antenna inputs
TV with 300 ohm UHF
and 300 ohm VHF
antenna inputs
NOTE: If a VHF or UHF
antenna is used, set the
TV/CATV MENU option to
"TV" mode.
NOTE: If a VHF or UHF
antenna is used, set the
TV/CATV MENU option to
"TV" mode.
NOTE: If a VHF or UHF
antenna is used, set the
TV/CATV MENU option to
"TV" mode.
SPLITTER
75 OHM INPUT
75/300 OHM OUTPUTS
(NOT SUPPLIED)
SPLITTER
75 OHM INPUT
300 OHM OUTPUTS
(NOT SUPPLIED)
VHF/UHF IN
UHF
VHF
UHF
VHF
This VCR has a single 75 ohm output for connection to a TV. If your TV has separate VHF and UHF antenna
inputs (numbers 2 and 3 below), use a splitter to connect the VCR to the TV for VHF and UHF reception.
