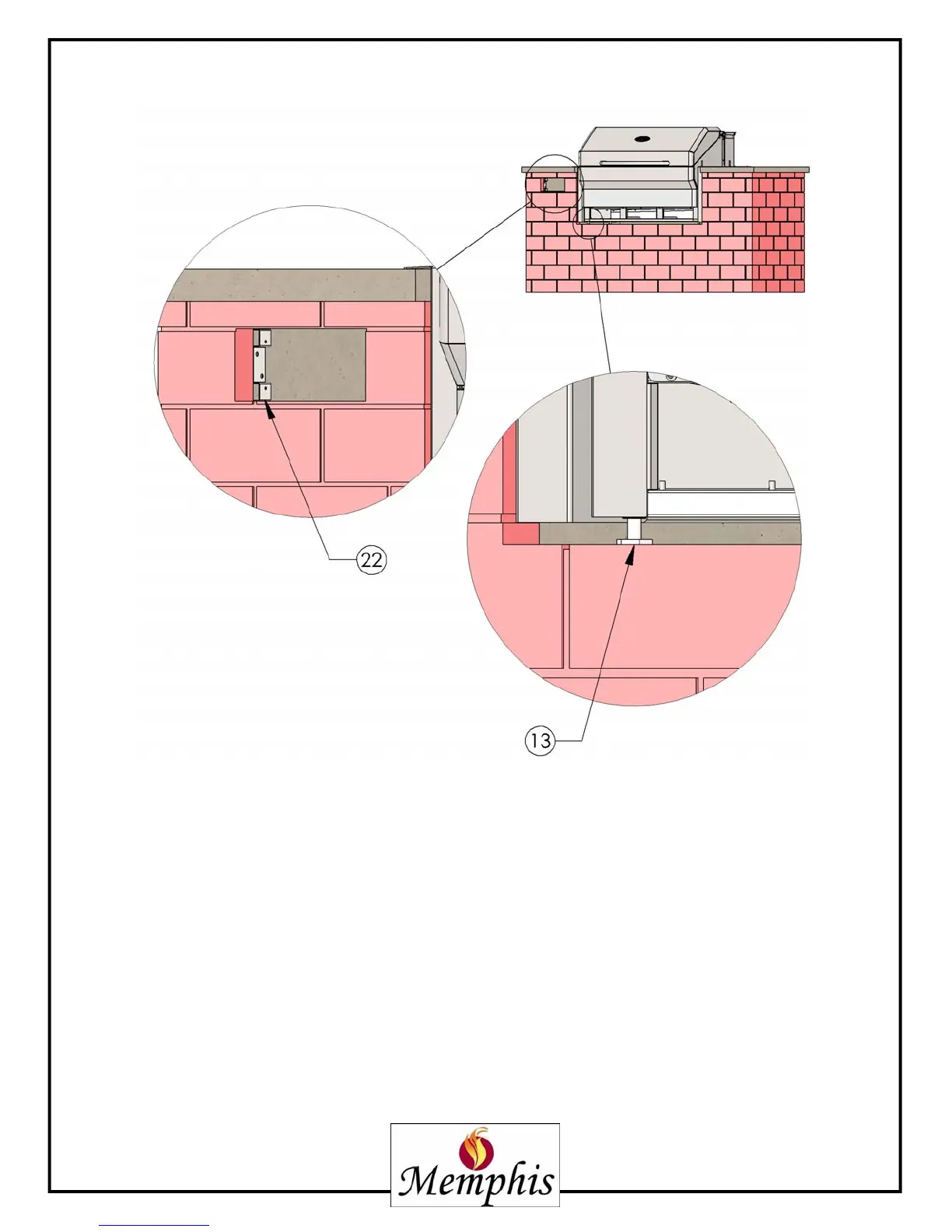

1. FASTEN THE TWO CONTROLLER MOUNTING BRACKETS (ITEM 22) IN THE CONTROLLER CABLE
WAY TO THE DESIRED DEPTH. USE FASTENERS APPROPRIATE FOR THE STRUCTURE’S
MATERIAL, TWO FASTENERS FOR EACH BRACKET (FASTENERS TO MOUNT THE BRACKETS ARE
NOT INCLUDED).
2. SKIP THIS STEP IF GRILL WILL BE SUPPORTED BY THE SUPPORT BRACKETS (ITEMS 6, 12 &
25) ADJUST THE FOUR LEVELING FEET (ITEM 13) WITH A 1/4” SOCKET ENSURING THAT THE
UNIT IS LEVEL, AND THAT THE SUPPORT BRACKETS (ITEMS 6,12 & 25) COME IN CONTACT WITH
THE ISLAND’S COUNTERTOP.
REFER TO PAGE 5 FOR ITEM PART NUMBERS, DESCRIPTIONS AND QUANTITIES
