Installation Step 4

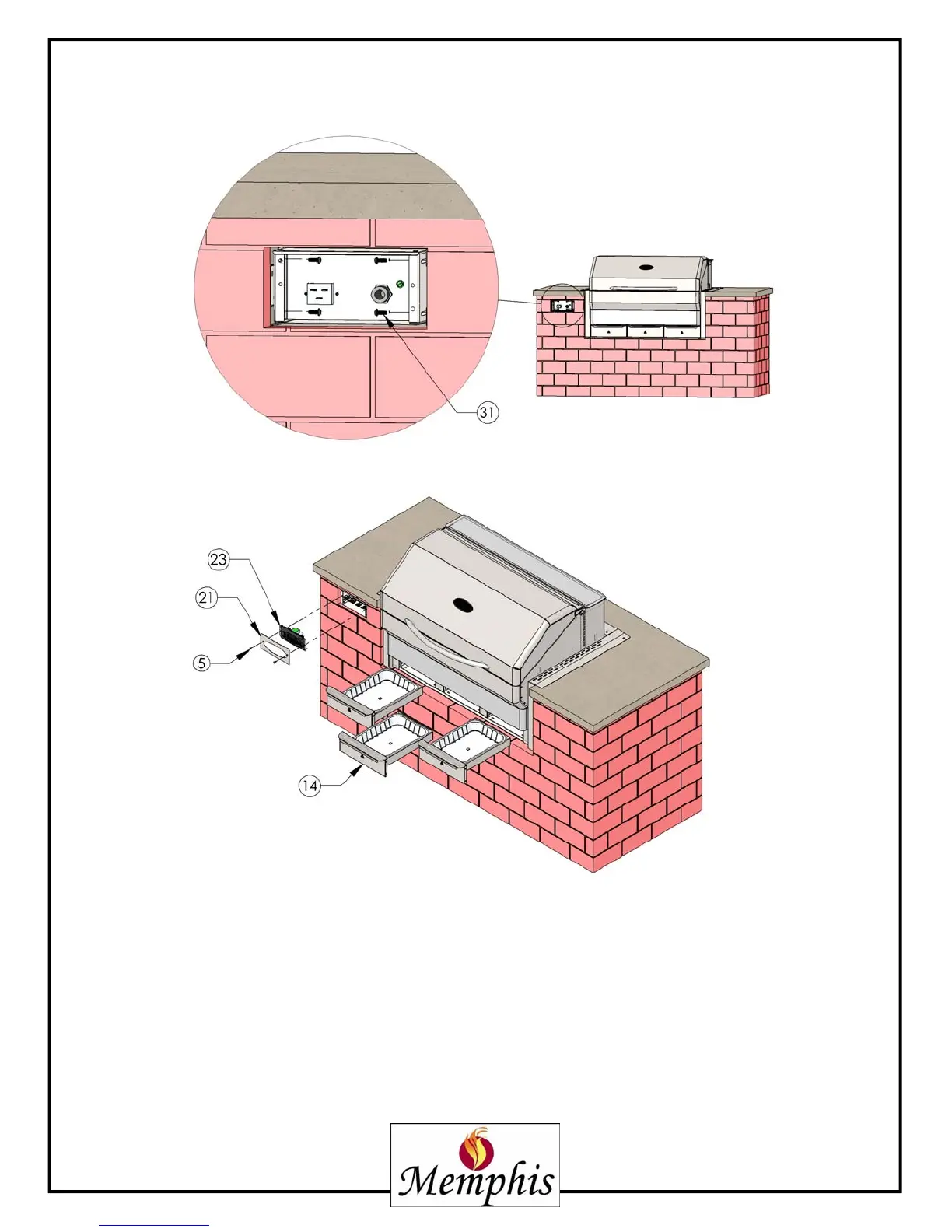

1. REMOVE THE ITC CONTROLLER (ITEM 23) FROM THE CONTROLLER BOX
2. MOUNT THE CONTROLLER BOX TO THE CONTROLLER MOUNTING BRACKETS (ITEM 22) USING
FOUR BLACK 10-24 x ½” SCREWS (ITEM 31). FASTEN THE CONTROLLER BOX TO THE DESIRED
DEPTH. NOTE: CONTROLLER SHOULD BE RECESSED INTO THE OPENING AT LEAST ¼”
3. INSTALL THE CONTROLLER (ITEM 23) BACK INTO THE CONTROLLER BOX, AND FASTEN THE
CONTROLLER COVER PLATE AND THE CONTROLLER (ITEMS 21 & 23) TO THE CONTROLLER BOX
USING TWO 10-24 x ½” STAINLESS STEEL SCREWS (ITEM 5).
4. INSERT THE THREE ASH/GREASE DRAWERS (ITEM 14) BACK INTO THE UNIT.
REFER TO PAGE 5 FOR ITEM PART NUMBERS, DESCRIPTIONS AND QUANTITIES
