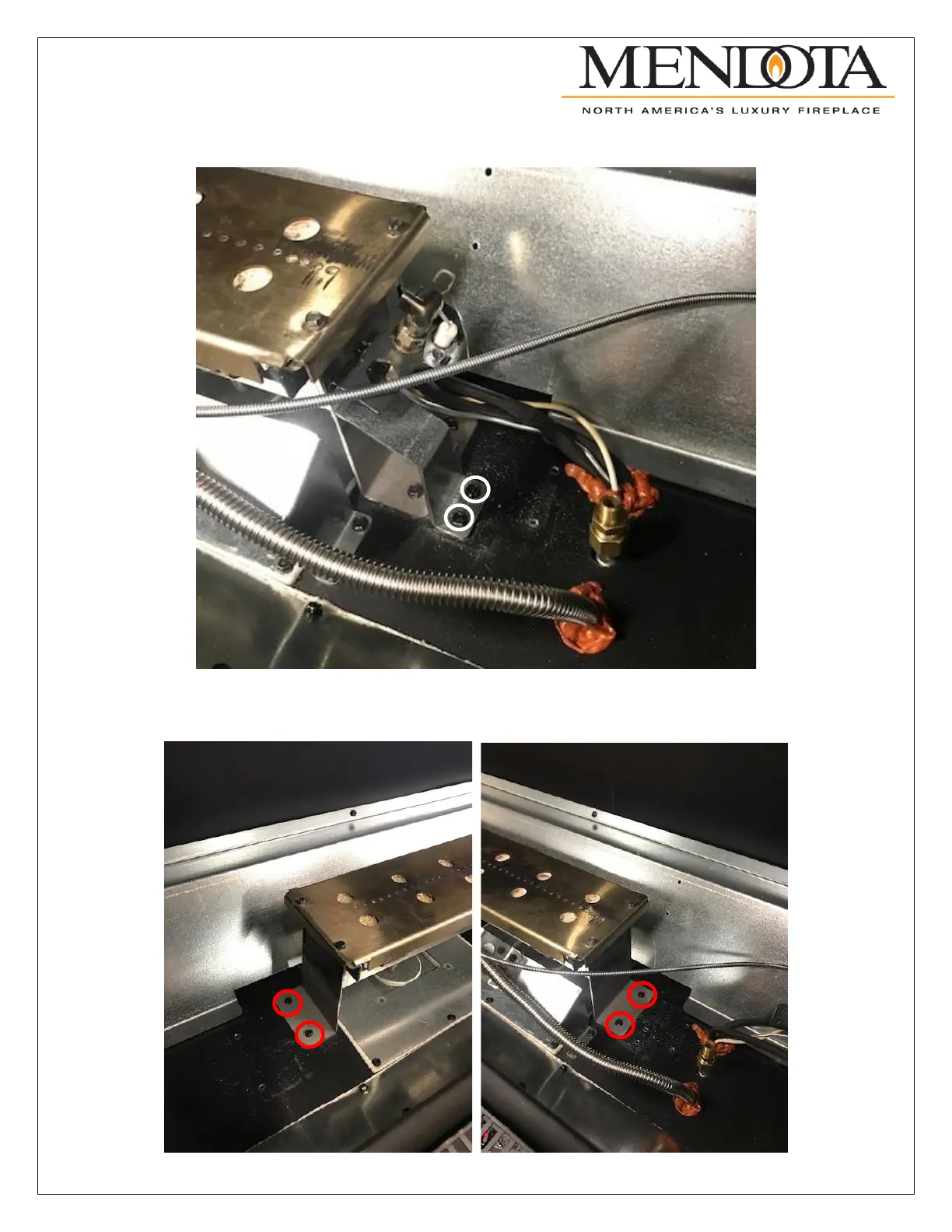

ML54, ML60, and ML72: Then, remove the (2) screws securing the pilot bracket to the firebox floor. Move the pilot
bracket, pilot, and wires off to the right side of the unit out of the way.
ALL UNITS: Remove the (4) screws securing the burner to the firebox. There are (2) on each end as shown below. Then
remove the burner by sliding it to the left and removing it from the firebox and placing it in a safe location out of the way.
