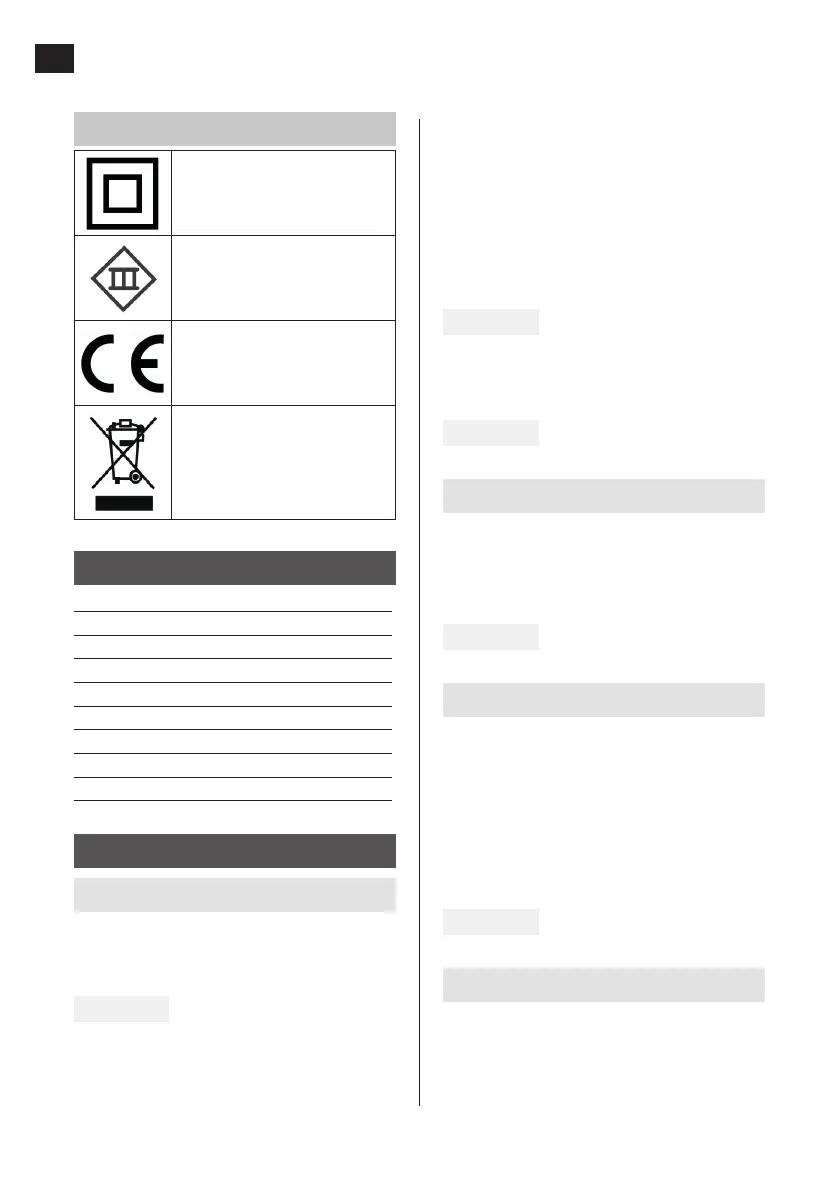

SYMBOLS
Safety class II.
Safety class III.
Approved as per applicable
directives and ordinances.
Recycle discarded product as
electrical waste.
TECHNICAL DATA
Rated voltage 230 V
~
50 Hz
Transformer 24 V DC/600 mA
Output 20W
Battery 14.4 V Ni-MH 1500 mAh
Charging time 4–5 h
Run time Max 90 min
Speed, vacuum cleaner 0.2 m/s
Noise level 74 dB(A)
Size Ø 300 x 78 mm
DESCRIPTION
Robotic vacuum cleaner
1. Bumper
2. Lid
3. Power switch
FIG. 1
4. Charging connectors
5. Right side brush
6. Battery cover
7. Right wheel
8. Power switch
9. Link wheel
10. Left side brush
11. Vacuum port
12. Left wheel
13. Bottom cover
FIG. 2
14. Lid
15. Dust container
16. Charging connector
FIG. 3
Dust container
17. Primary lter
18. Dust container lid
19. HEPA lter
20. Holder for HEPA lter
FIG. 4
Charging station
21. Transmitter for IR signal
22. Transmission window for IR control signal
23. Mains outlet
24. Casing
25. Signal indicator
26. Lid
27. Charger pin
FIG. 5
Remote control
28. On/O
29. Button for direction control
30. Button for mode settings
31. Button for high power
