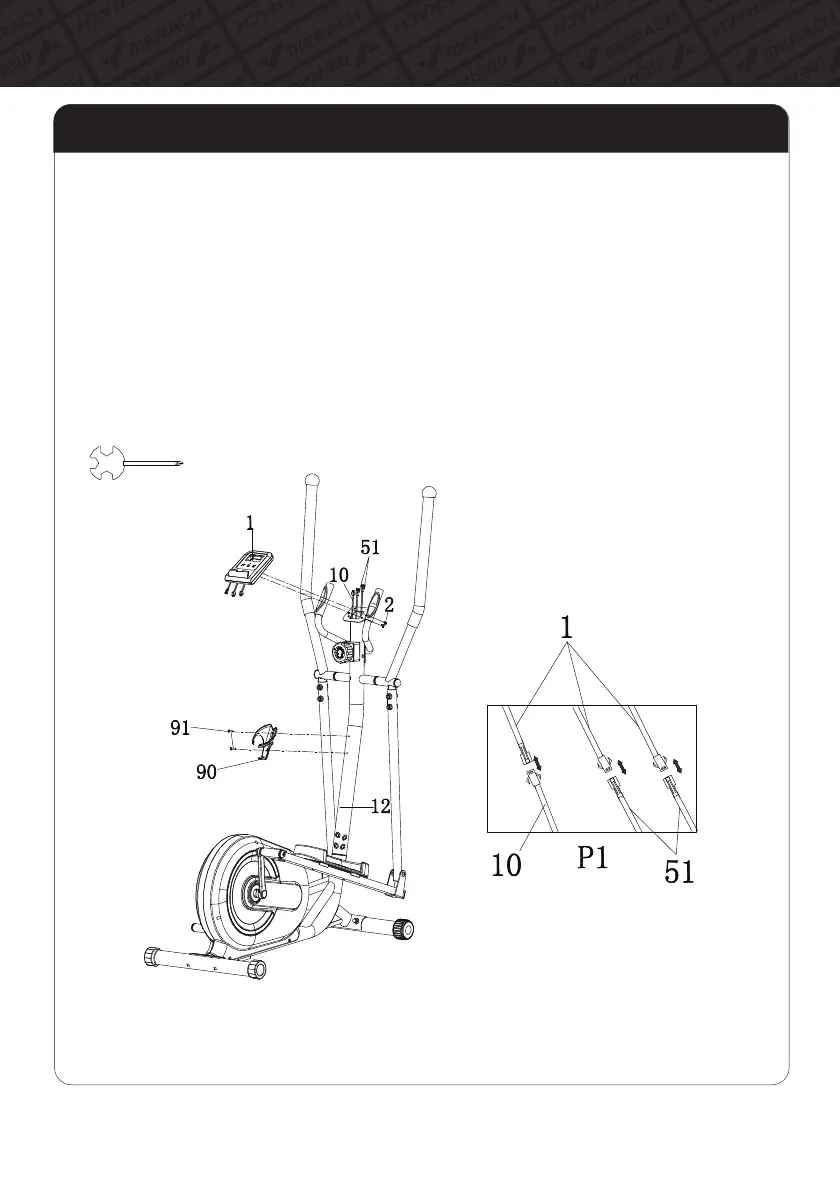

Step 7: Install the Monitor and Bottle Cage
A. Screw the pre-assembled Cross Recess Head Screw(#2) off from the Monitor(#1) by the
Multi-function Cross Wrench(#A).
B. Screw the pre-assembled Cross Recessed Pan Head Tapping Screws(#91) off from the
Handlebar Post(#12).
C. Connect the Wires of Monitor(#1) with the Trunks lines(10) and Heart Rate Wires(#51),
and then tighten the Monitor(#1) with the Cross Recess Head Screw(#2) by the Multi-function
Cross Wrench(#A).
D. Tighten the Bottle Cage(#90) onto the Handlebar Post(#12) with the Cross Recessed Pan
Head Tapping Screws(#91) by the Multi-function Cross Wrench(#A).
12
Assembly Instructions
To Next Page
