Smoke and Heat Exhaust Control Unit mcr 9705 – User Instruction Manual
Strona 17 z 24

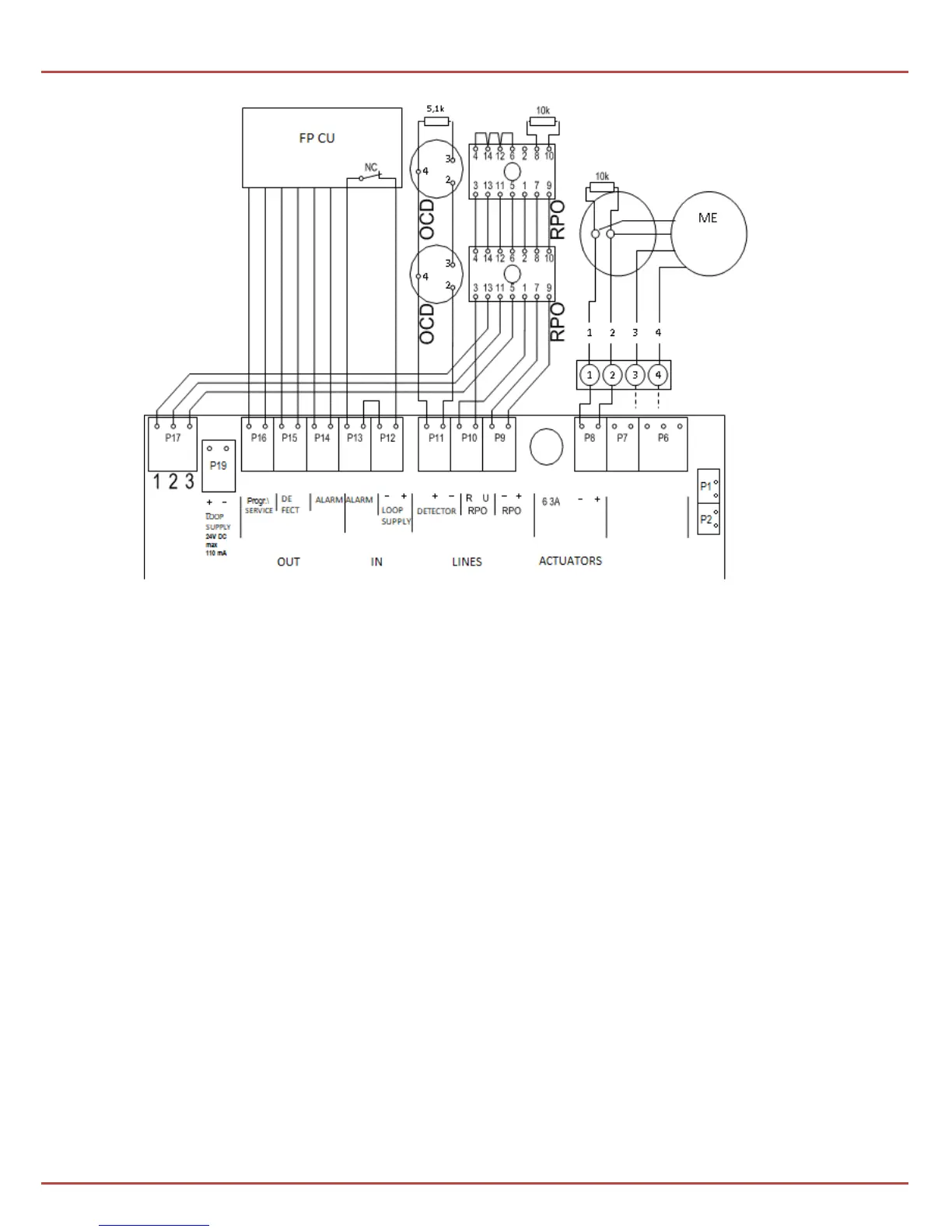

Diag. 2 Typical connection of smoke curtain to control unit mcr 9705 (Execution for curtains
mcr PROSMOKE CE/CE1).
Elements:
OCD – optical smoke sensor (sensors should be connected according to advice of
a manufacturer)
RPO – manual smoke exhaust pushbutton mcr RPO-1
PM – connection box
ME – electromechanical actuator 24 V = curtain mcr PROSMOKE CE/CE1
Attention!
1. Not all the elements of the system (in particular the connection with fire protection
control unit) must be present in the smoke exhaust system.
2. Central unit or module operating with smoke curtain cannot be connected
simultaneously to smoke vent’s actuators, weather central unit or ventilation push
buttons.
