Smoke and Heat Exhaust Control Unit mcr 9705 – User Instruction Manual
Strona 18 z 24

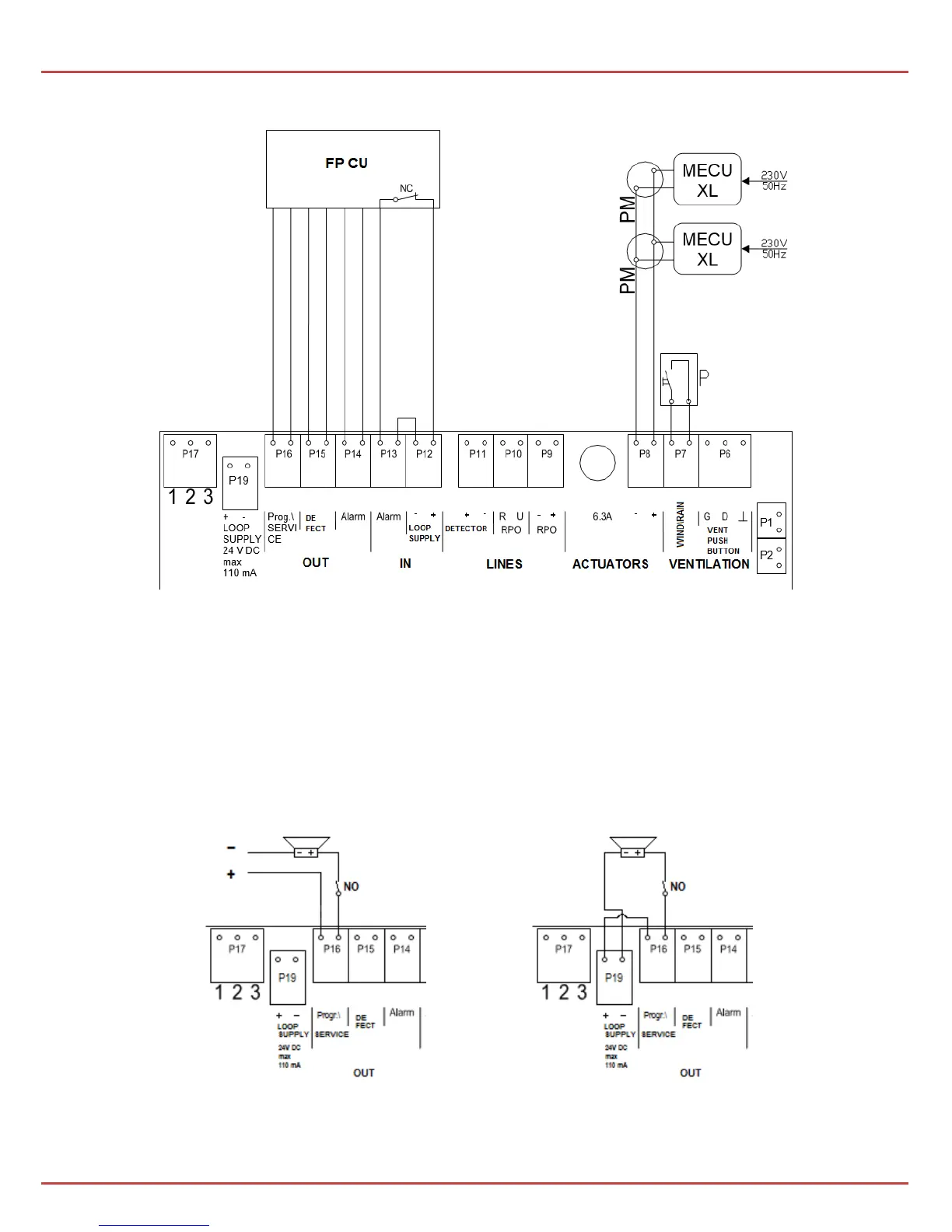

Diag. 3 Typical connection of smoke curtain mcr PROSMOKE FSv2 to control unit mcr 9705
(central unit in the mode “doors control”).
Elements:
PM - connection box
MECU XL - work controller of smoke curtain mcr PROSMOKE FSv2 CE
P - service pushbutton for temporary lowering of the curtain
Diag. 4 An example of connection of external alarm device: (a) with its own power source,
(b) without its own power source.
b
a
