Smoke and Heat
Exhaust Con
trol Unit mcr 9705
–
User Instruction
Manual
Strona
19
z
24

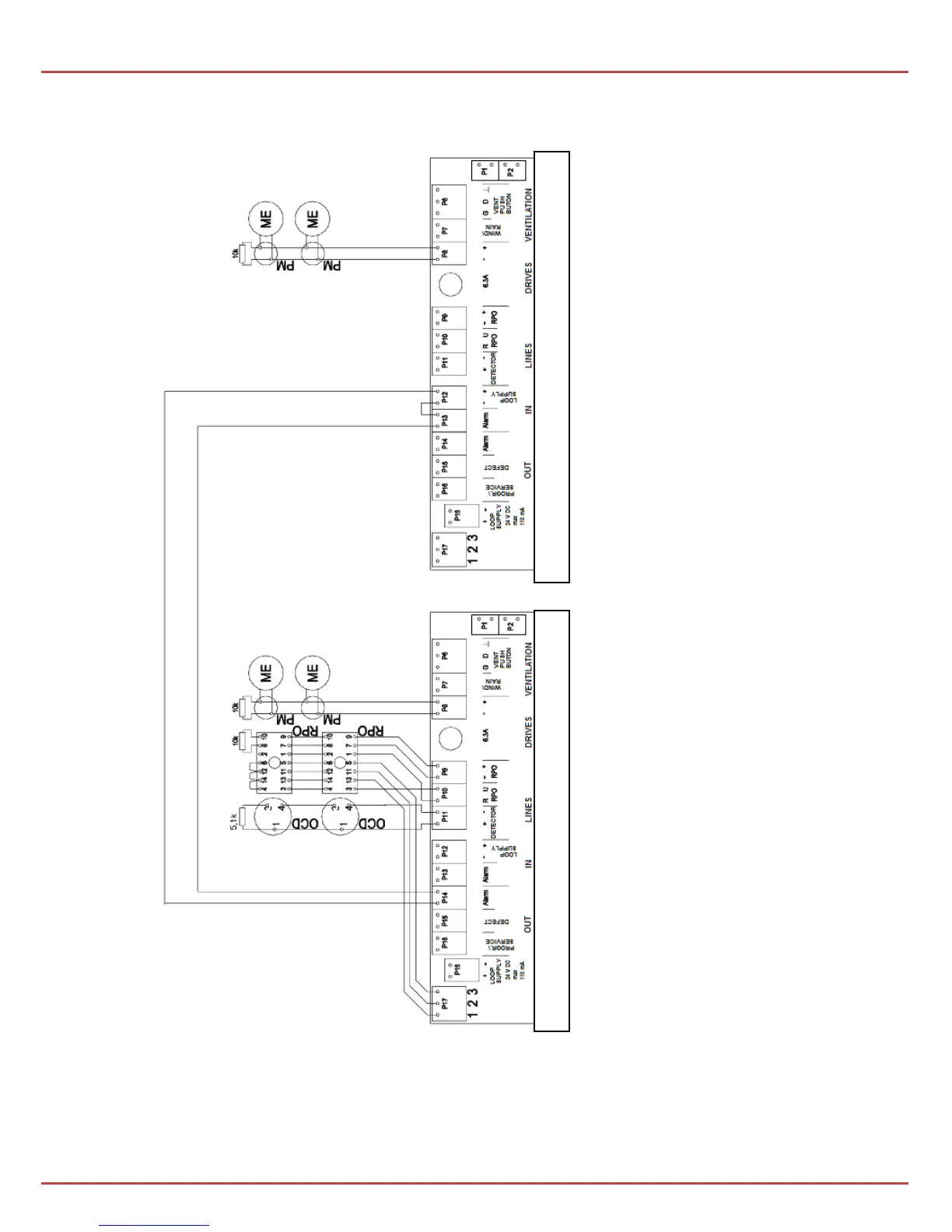

Diag.
5 Passing the
alarm signal betwe
en modules or centr
al units.
Attention:
1.
Remove jumpe
r H1 in controlled module!
2.
Controlled module is activated by the alarm signal from steering module.
3.
The autoreset function in controlled module should be enabled
(SW1
-8 OFF).
mcr 9705
control unit
/steering module
mcr 9705
control unit
/controlled module
18
20
Table of Contents
Table of Contents
2
Introduction
3
About the Mcr 9705 Control Unit
4
Exploitation
8
Assembly and Start up
12
Instruction Manual for Checking Connection and Performance of the Mcr 9705 Control Unit
14
Typical Connection Diagrams
16
Service and Maintenance
20
Warranty Terms and Conditions
20
Technical Specifications
22
The Declaration of Performance
23
European Certificate of Constancy of Performance
23
