Section 6 - Storage
90-864195070 JUNE 2007 Page 123
3. Ensure that the lever on top of the pump is flush with the handle (horizontal).
4. Install the air pump on the actuator fitting.
5. Pull lever on air pump (vertical) to lock pump on the fitting.
8293
b
d
e
a
c

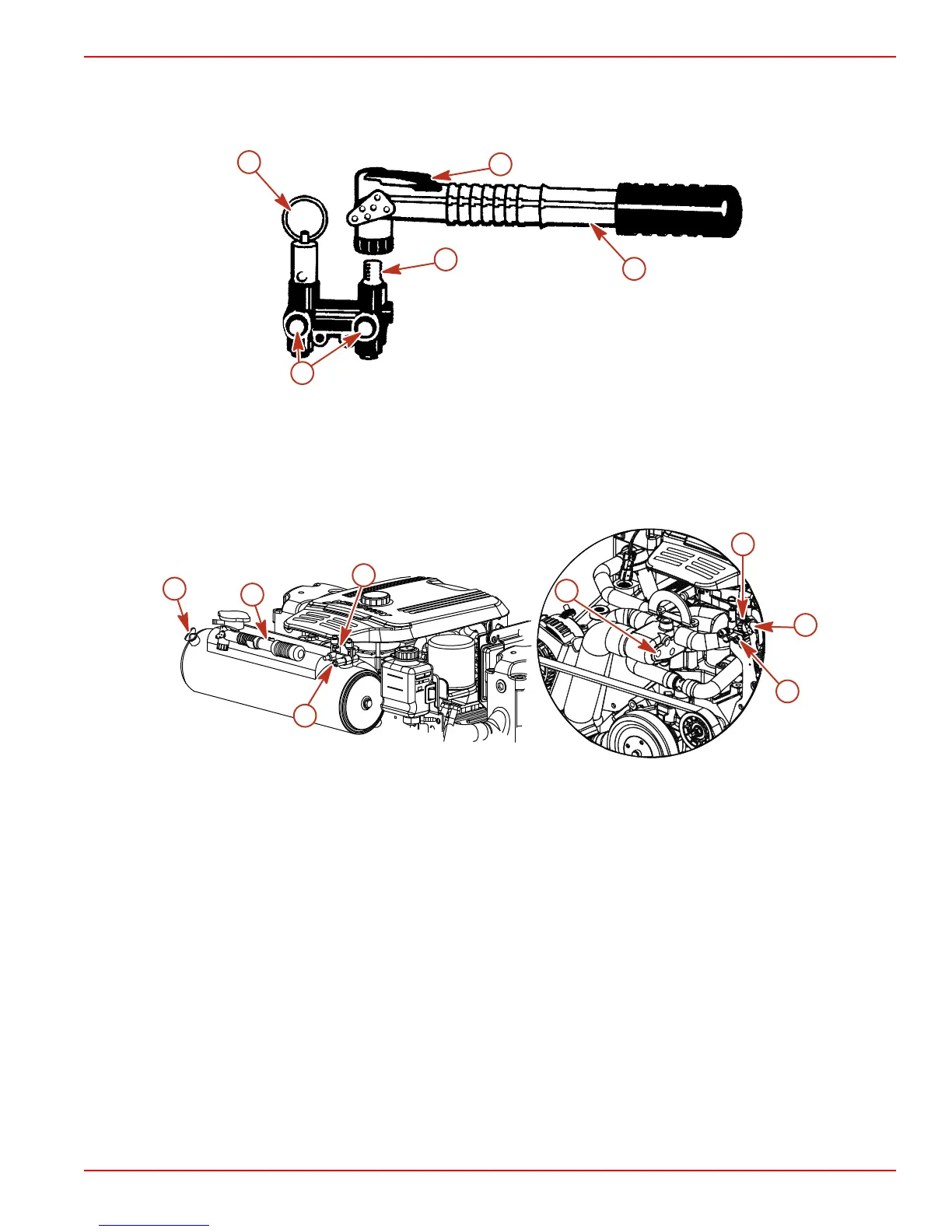

a - Actuator fitting
b - Green indicators
c - Manual release valve
d - Air pump
e - Lever (locking)
6. Pump air into the system until both green indicators extend and water drains from both
sides of the engine. The port side will begin draining before the starboard side.
6124
a
b
c
d
6125
a
b
c
d
Closed Cooled Models Seawater Cooled Models
a - Blue drain plug location
b - Blue air pump
c - Air manifold
d - Green indicators
