MAINTENANCE
74
2. Power Steering Pump Drive Belt
a
b
d
c
f
e
2851

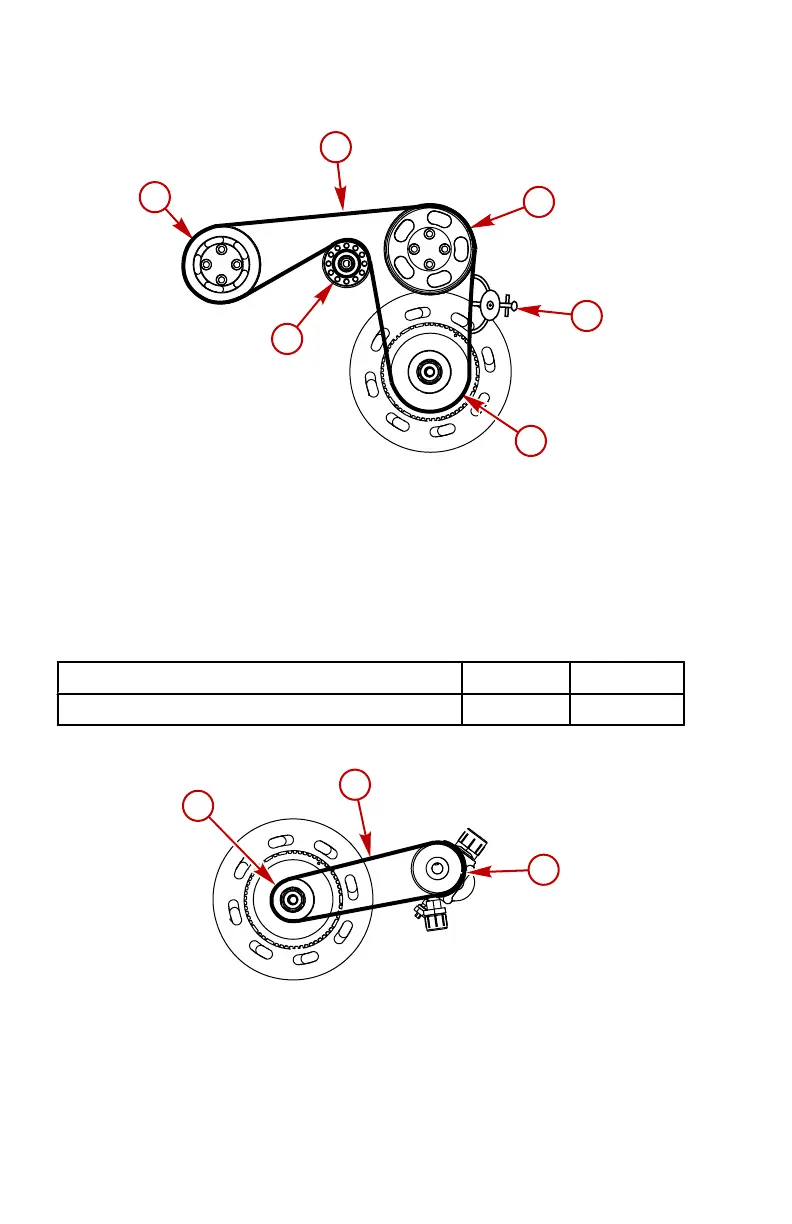

a - Power steering pump
pulley (adjust belt
tension here)
b - Idler pulley
c - Tensioner gauge
d - Power steering pump
drive belt
e - Crankshaft pulley
f - Recirculating pump pulley
Description N lb.
Seawater pump/alternator belt 360‑440 80‑100
3. Oil Pump Belt ‑ Belt Should Twist 1/4 Turn
rmc21
a
b
c
a - Crankshaft pulley
b - Oil pump drive belt
c - Oil pump (adjust belt tension here)
