American Wire Gauge (AWG)
Maximum Length
Meter (Feet)
2 12.2 m (40 ft)
1 15.2 m (50 ft)
1/0 19.6 m (64 ft)
2/0 24.4 m (80 ft)

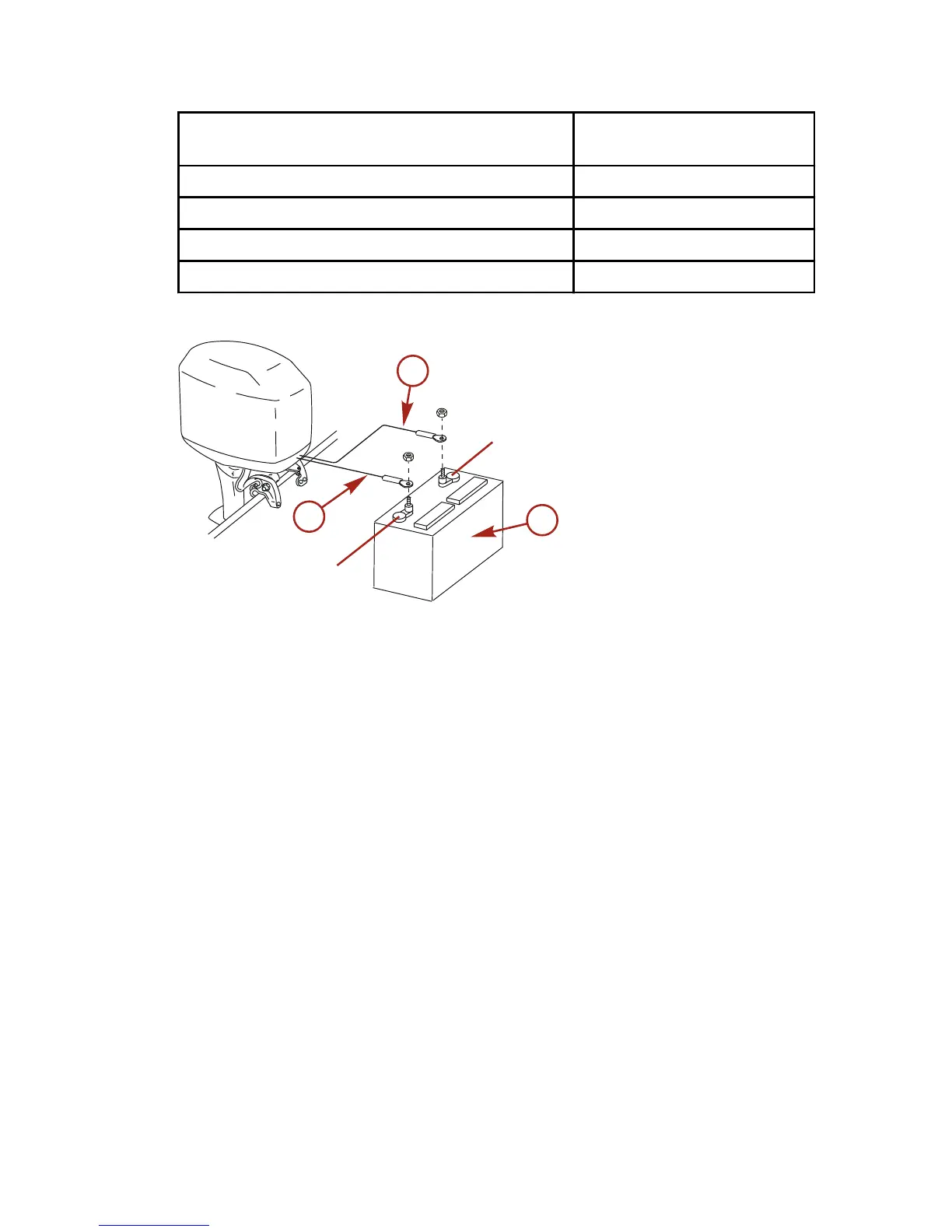

Single Outboard
a - Red sleeve ‑ positive
(+)
b - Black sleeve ‑
negative (–)
c - Cranking battery
(+)
(-)
b
a
c
15496
OUTBOARD INSTALLATION
eng 123
