Mercury 100 FourStroke User Manual

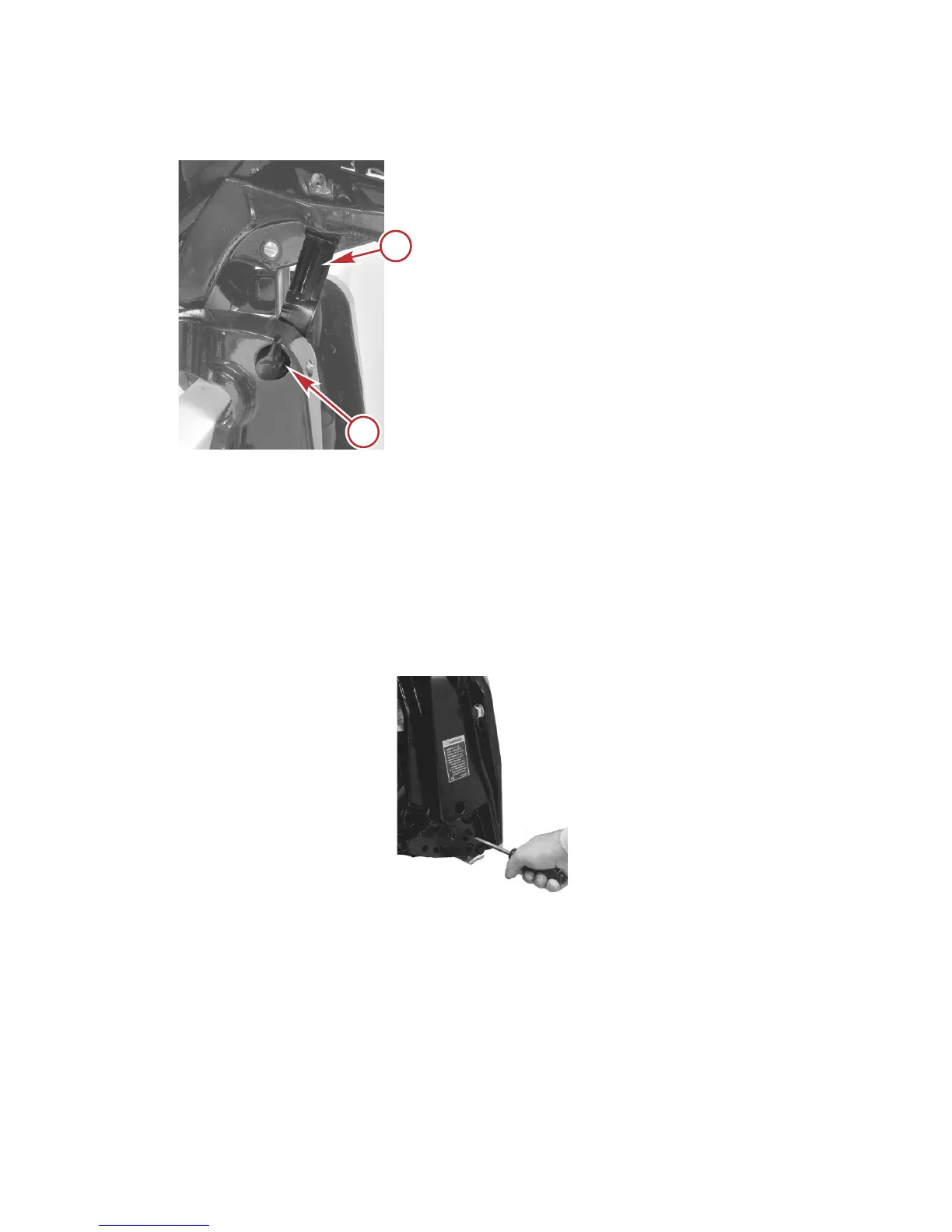

3. Disengage the tilt support lever by raising the outboard off the support
lever and rotating the lever down. Lower the outboard.
a - Tilt support lever
b - Knob
MANUAL TILTING
If the outboard cannot be tilted using the power trim/tilt switch, the outboard can
be manually tilted.
NOTE: The manual tilt release valve must be tightened before operating the
outboard to prevent the outboard from tilting up during reverse operation.
Turn out the manual tilt release valve three turns counterclockwise. This allows
manual tilting of the outboard. Tilt the outboard to the desired position and
tighten the manual tilt release valve.
54177
a
b
54169
FEATURES AND CONTROLS
eng 53
