MAINTENANCE
37
ob01084

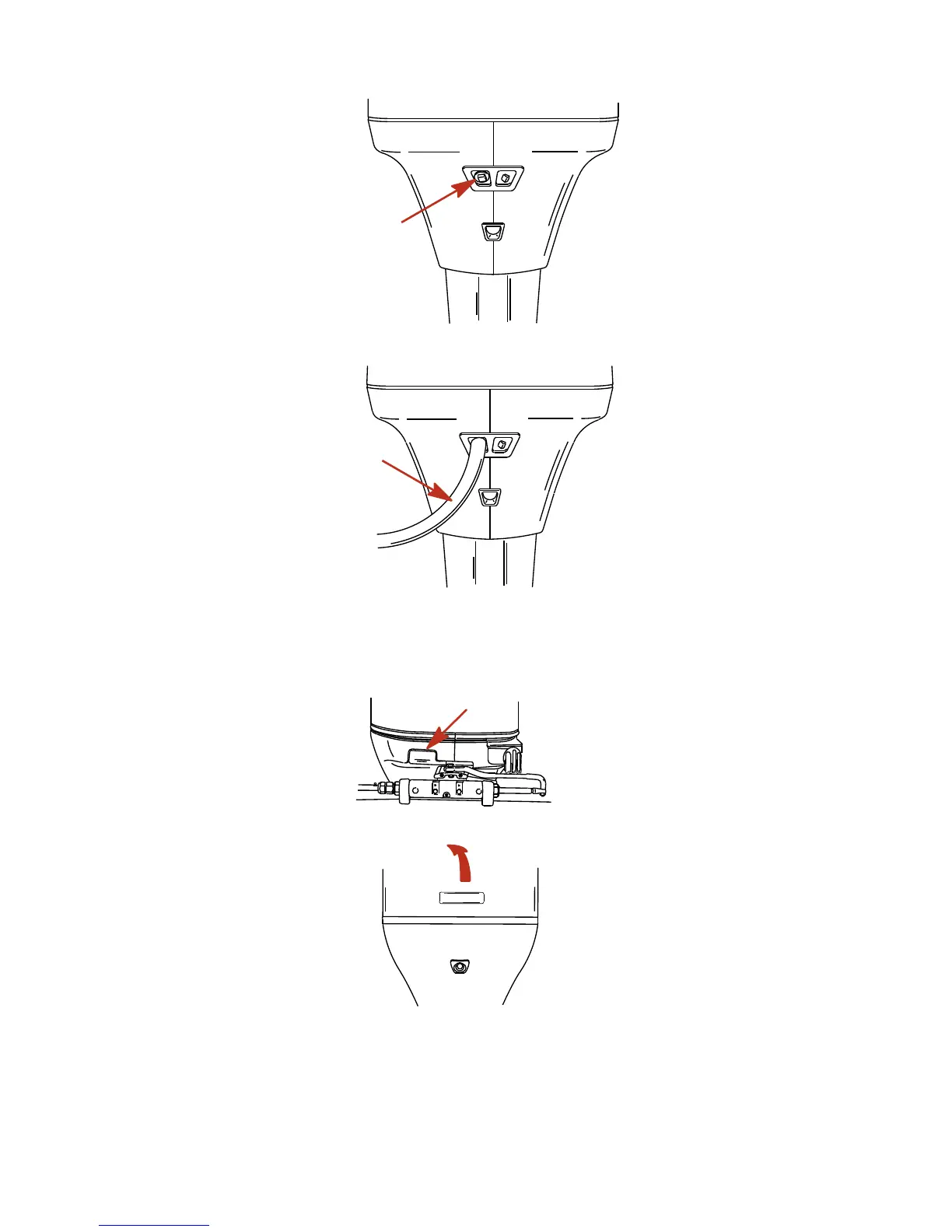

2. Attach a water hose to the fitting. Turn on the water and flush for 3 to 5 minutes.
ob01085
Top Cowl Removal And Installation
REMOVAL
1. Pull out the front cowl latch.
ob00672
2. Lift up the rear cowl latch. Remove the top cowl.
FOURSTROKE
ob00673
INSTALLATION
1. Lower top cowl into position over engine.
2. Push down the rear cowl latch to lock down the rear and push in the front cowl latch to lock down the front.

Table of Contents

Other manuals for Mercury 135 Optimax

Preview: Manual
Manual86 pages
Preview: User Manual
User Manual62 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Mercury 135 Optimax and is the answer not in the manual?

Mercury 135 Optimax Specifications

General IconGeneral
StartingElectric
ExhaustThrough Prop
Horsepower135 HP
Fuel Induction SystemDirect Fuel Injection
Alternator Amp60 Amp
Shaft Length20", 25"
Full Throttle RPM5250-5750
SteeringHydraulic
