IGNITION
90-883728 JULY 2001 Page 2A-3

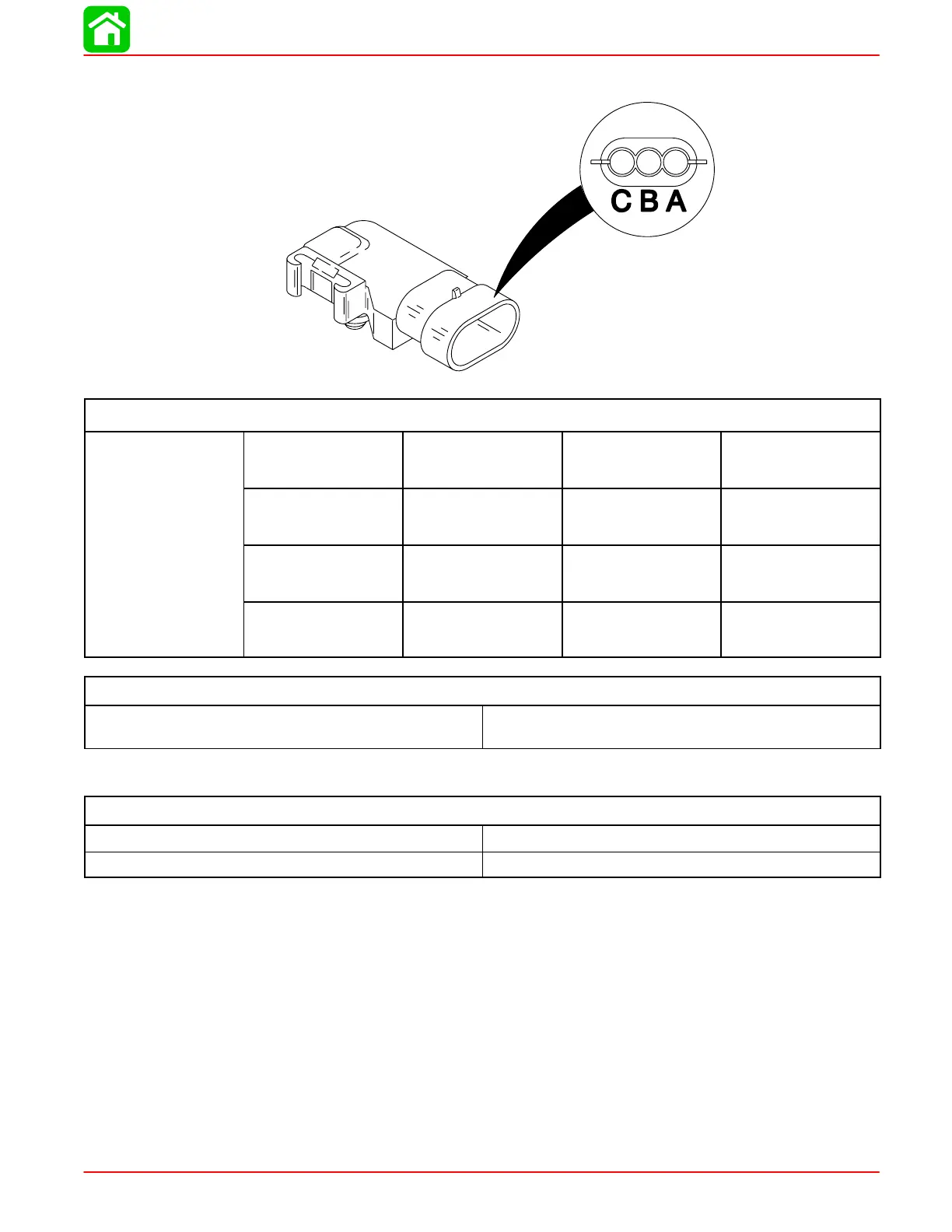

Manifold Absolute Pressure (MAP) Sensor Ohms Test
58904
BLACK METER LEAD
BLK/ORG
PIN A
YEL
PIN B
PPL/YEL
PIN C
RED METER
BLK/ORG
PIN A
X 95000 – 105000
ohm
3900 – 4100
ohm
RED
METER
LEAD
YEL
PIN B
95000 – 105000
ohm
X 95000 – 105000
ohm
PPL/YEL
PIN C
3900 – 4100
ohm
95000 – 105000
ohm
X
Crank Position Sensor Resistance Test
Between 2 pins of Crank Position Sensor
Connector
300 – 350 ohms
Throttle Position Sensor Specifications
Idle 0.19 – 1.0 VDC
Wide Open Throttle 3.45 – 4.63 VDC
