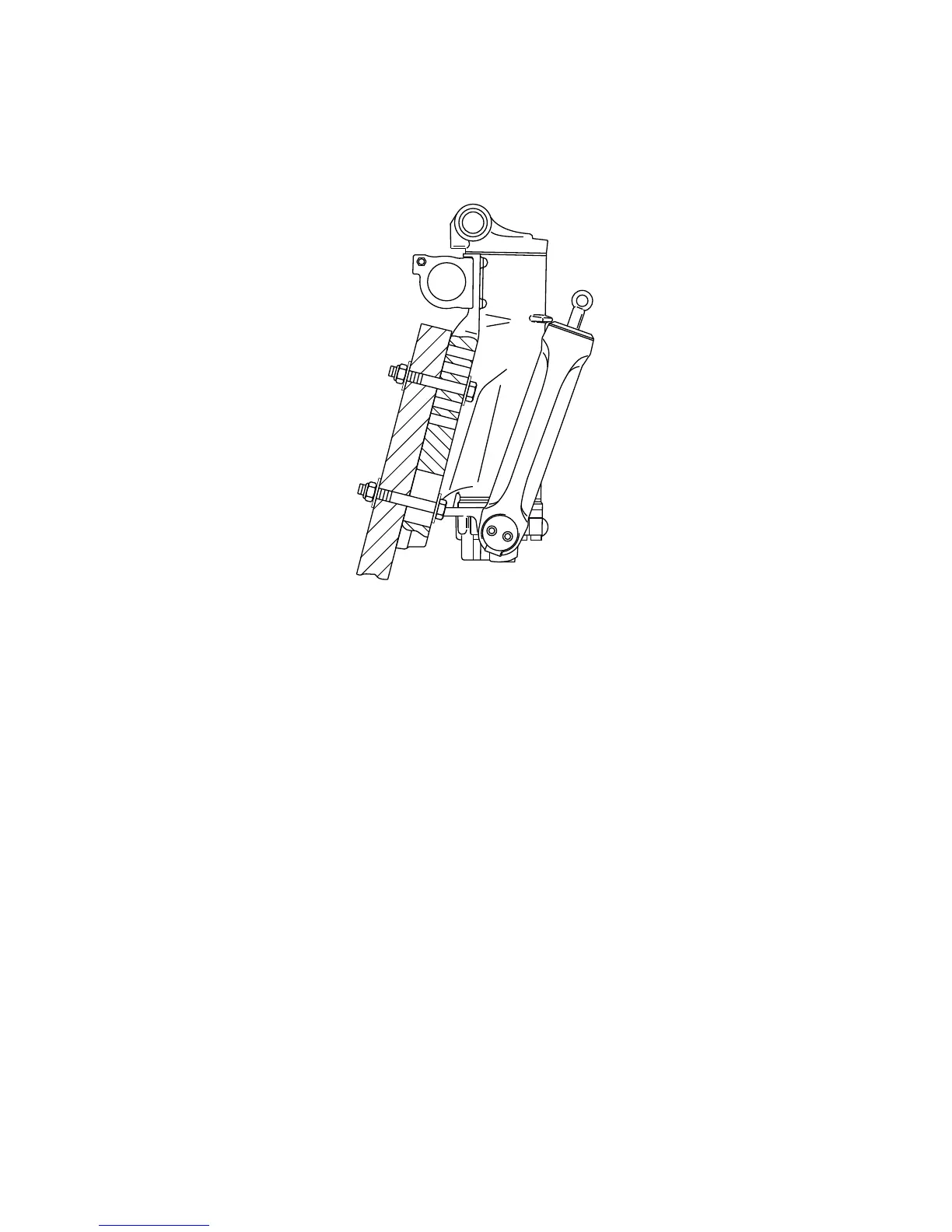

The outboard must be secured to the boat transom with the four 12.7 mm

(1/2 in.) diameter mounting bolts, locknuts and washers provided. Install two

bolts through the upper set of mounting holes and two bolts through the lower

set of mounting slots.

28923

INSTALLATION

eng 133
