CHARGING & STARTING SYSTEM
90-883728 JULY 2001 Page 2B-19
Installation
1. Secure alternator to engine block with attaching bolts. Torque top bolt to 40 lb-ft (54
Nm). Torque bottom nut to 35 lb-ft (47.5 Nm).

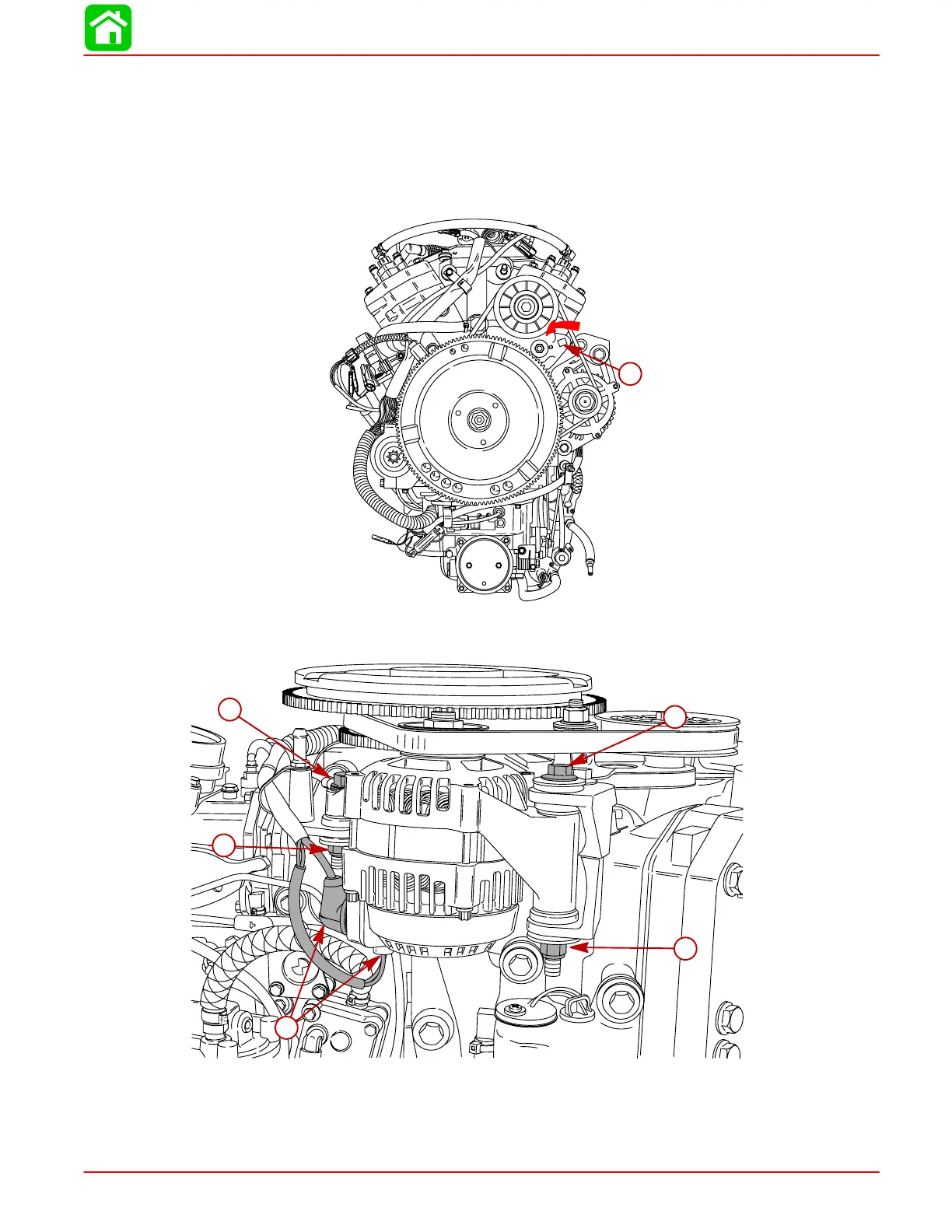

2. Rotate belt tensioner and install alternator belt in groove of flywheel and alternator
pulley.
58771
a
a-Belt Tensioner (Rotate Counterclockwise)
3. Reconnect electrical harness to alternator.
58782
a
c
b
b
a
a-Top Bolt [Torque to 40 lb-ft (54 Nm)]
b-Bottom Nut [Torque to 35 lb-ft. (47.5 Nm)
c-Harnesses
