OUTBOARD MOTOR INSTALLATION
90-883728 JULY 2001 Page 1D-15
Installing Oil Hoses To Engine
NOTE: Oil hose with BLUE stripe contains a directional filter which is designed to trap any
debris in the oil before the oil reaches the engine oil reservoir. The filter is marked with
an arrow denoting direction of flow of oil and should be installed accordingly. Should en-
gine oil reservoir oil level drop while remote oil tank oil level is normal, oil flow through
inline filter has been reduced by debris and filter must be replaced.
Route remote oil tank pulse hoses to starboard side of engine. Route hose with BLUE
stripe to port side of engine.
4. Remove (and discard) the shipping cap from hose fitting (a).
5. Connect oil hose from remote oil tank (hose with blue stripe) to fitting (a). Secure with
sta-strap.
NOTE: Fitting barb (b) is a vent and does not get connected to a hose.
6. Remove (and discard) shipping cap from pulse fitting (c).
7. Connect the second oil hose from remote oil tank to pulse fitting. Secure with sta-
strap.

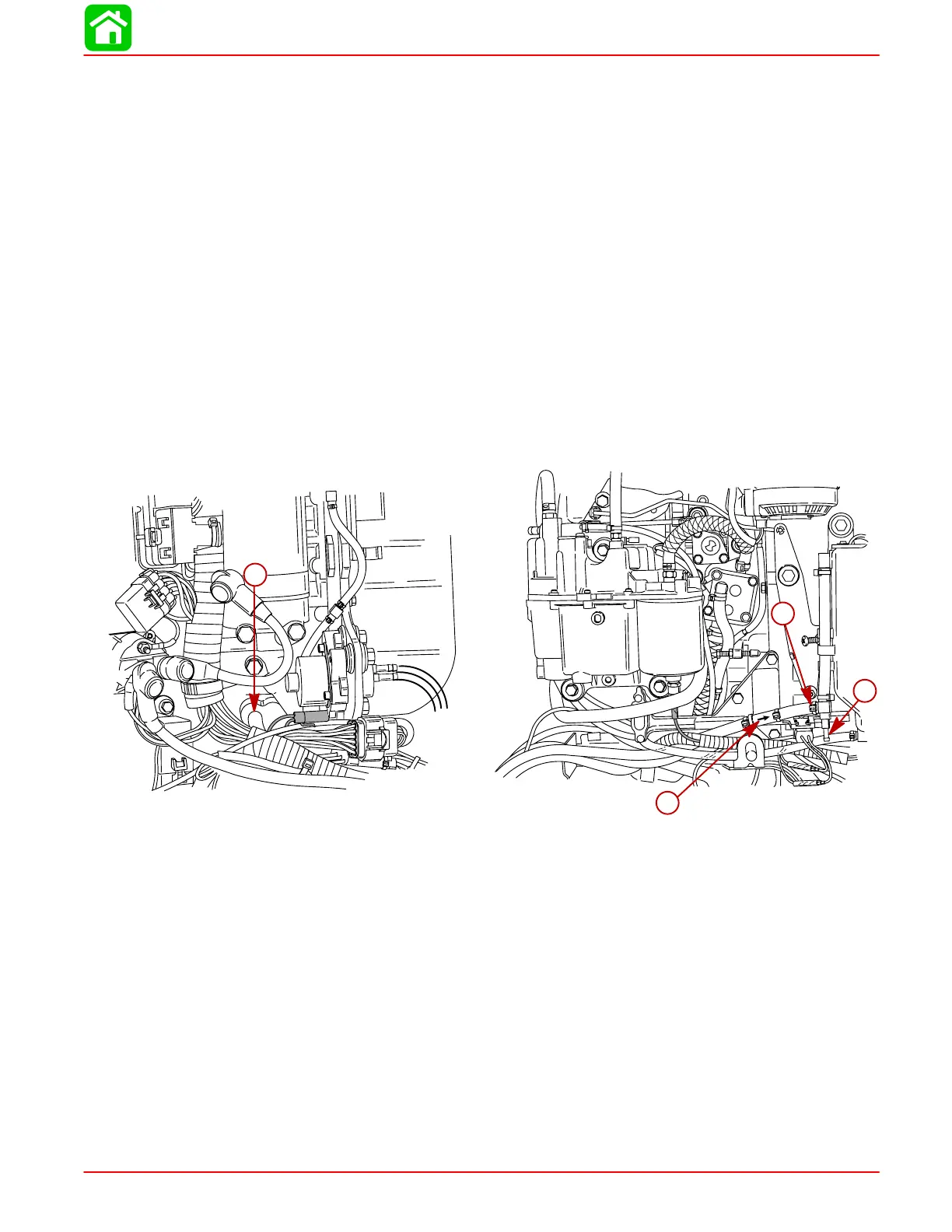

b
a
58800
c
58875
d
a-Hose Fitting (Hose
with BLUE Stripe)
b-Vent
c-Pulse Fitting
d-Filter
