LEFT HAND NON-RATCHETING
Page 6B-42 90-883728 JULY 2001

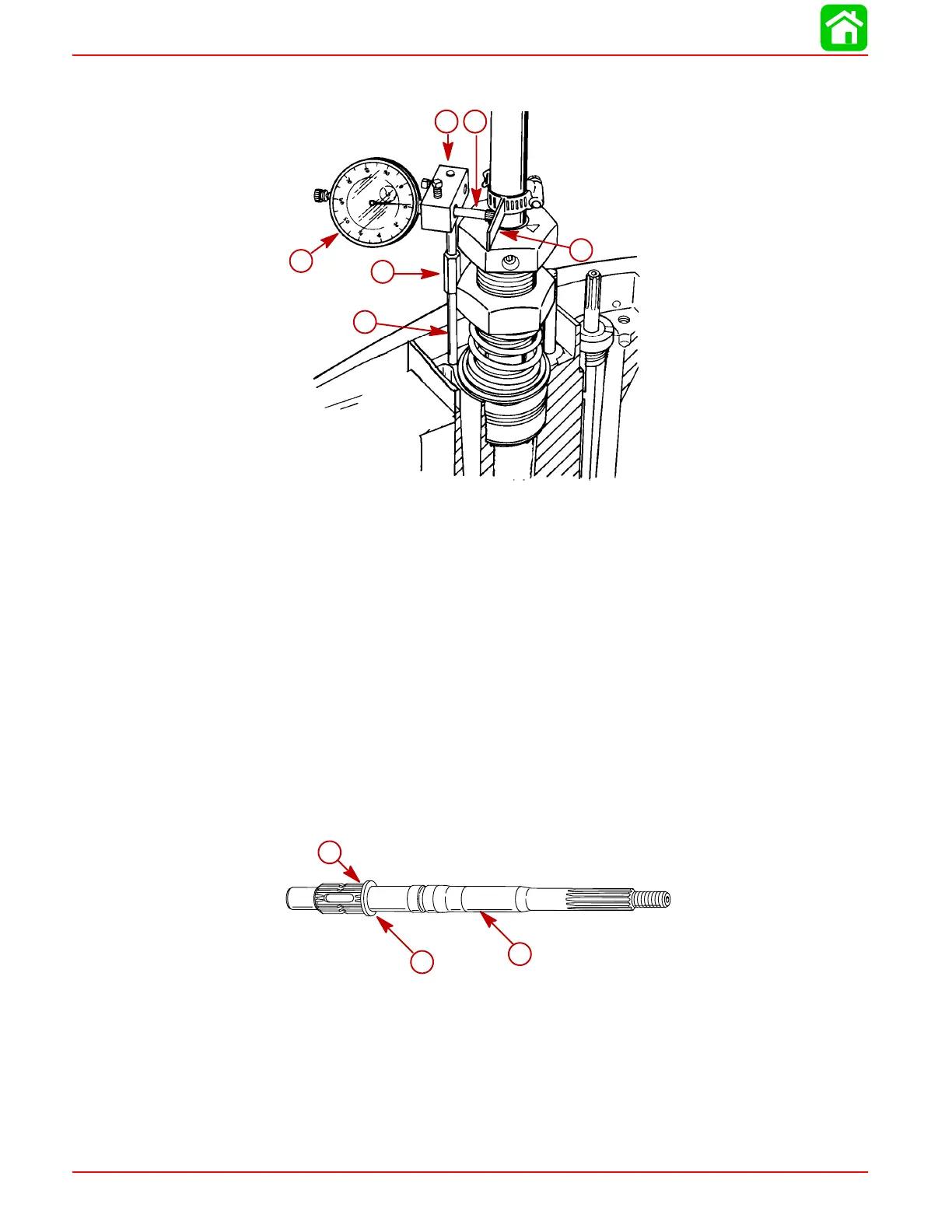

9. Dial Indicator registers amount of backlash, which should be 0.030 in. to 0.050 in.
(0.76 mm to 1.27 mm).
d
f
e
a
b
c
51880
a
b
c
d
e
f
a-Stud Adaptor (from 91-14311A1)
b-Stud
c-Backlash Indicator Tool (91-78473)
d-Dial Indicator Holder (91-89897)
e-Dial Indicator (91-58222A1)
f-Dial Indicator Pointer
NOTE: If reverse gear backlash is not within specifications, then gear case is not properly
assembled or component(s) within gear case are excessively worn and must be replaced
before returning gear case to service.
10. Remove Driver Tool, Pilot Ring, Retainer and Screw from gear case.
Forward Gear
DETERMINING FORWARD GEAR BACKLASH
1. Install a load washer (12-37429) over a 44-93003 propeller shaft so that it seats
against the REAR shoulder of the clutch spline teeth.
b
a
c
55088
a
b
c
a-Load Washer (12-37429)
b-Shoulder
c-Propeller Shaft (44-93003)
