OUTBOARD MOTOR INSTALLATION
Page 1D-4 90-883728 JULY 2001
Securing Outboard To Boat Transom
1. Refer to “Determining Recommended Outboard Motor Mounting Height”, preceding
and install outboard to the nearest recommended mounting height.

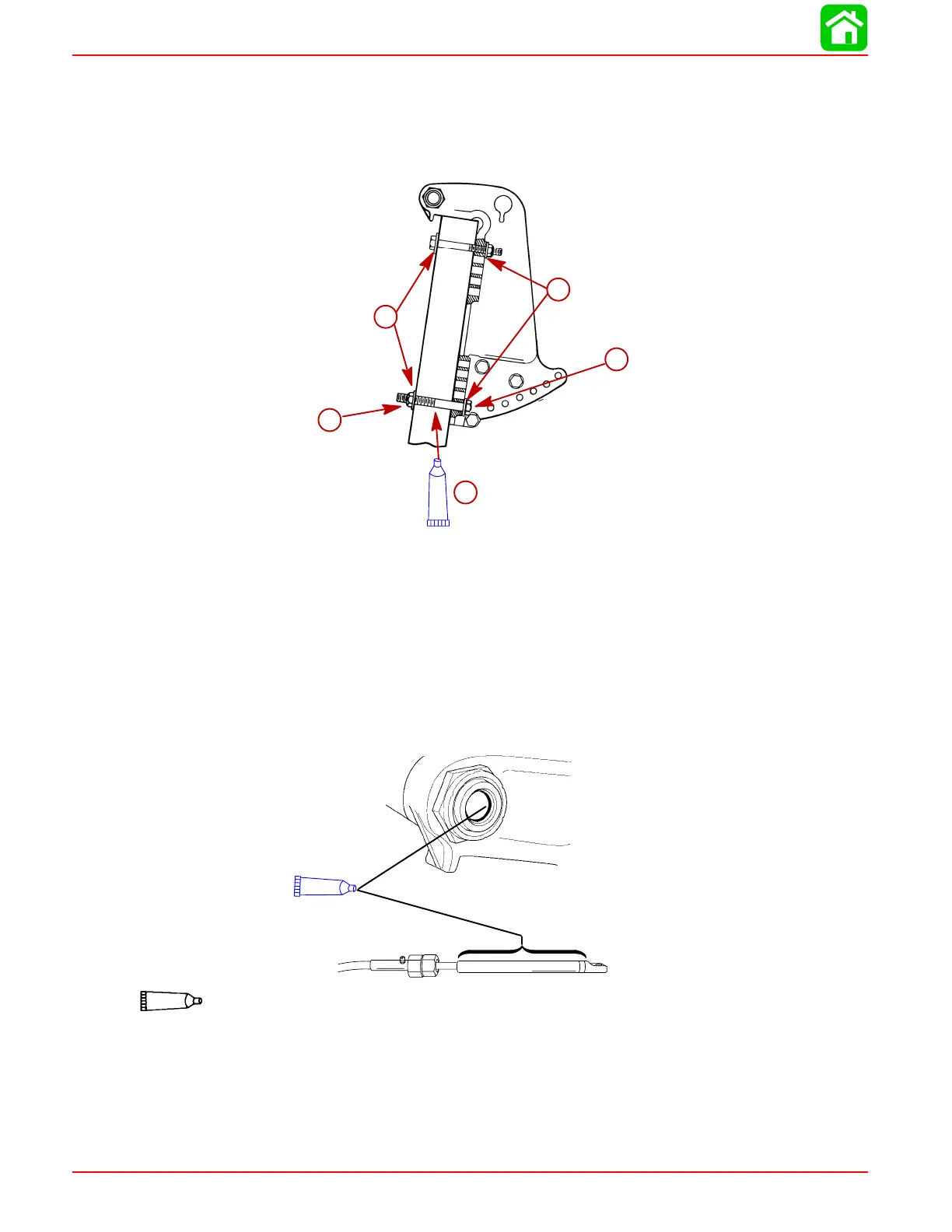

2. Fasten outboard with provided mounting hardware shown.
c
a
e
b
d
a-1/2 in. Diameter Bolts
(4)
b-Flat Washers(4)
c-Locknuts (4)
d-Flat Washers(4)
e-Marine Sealer - Apply to
Shanks of Bolts, Not
Threads
Steering Cable
STARBOARD SIDE ROUTED CABLE
1. Lubricate O-ring seal and entire cable end.
95
95
2-4-C with Teflon
To Next Page
