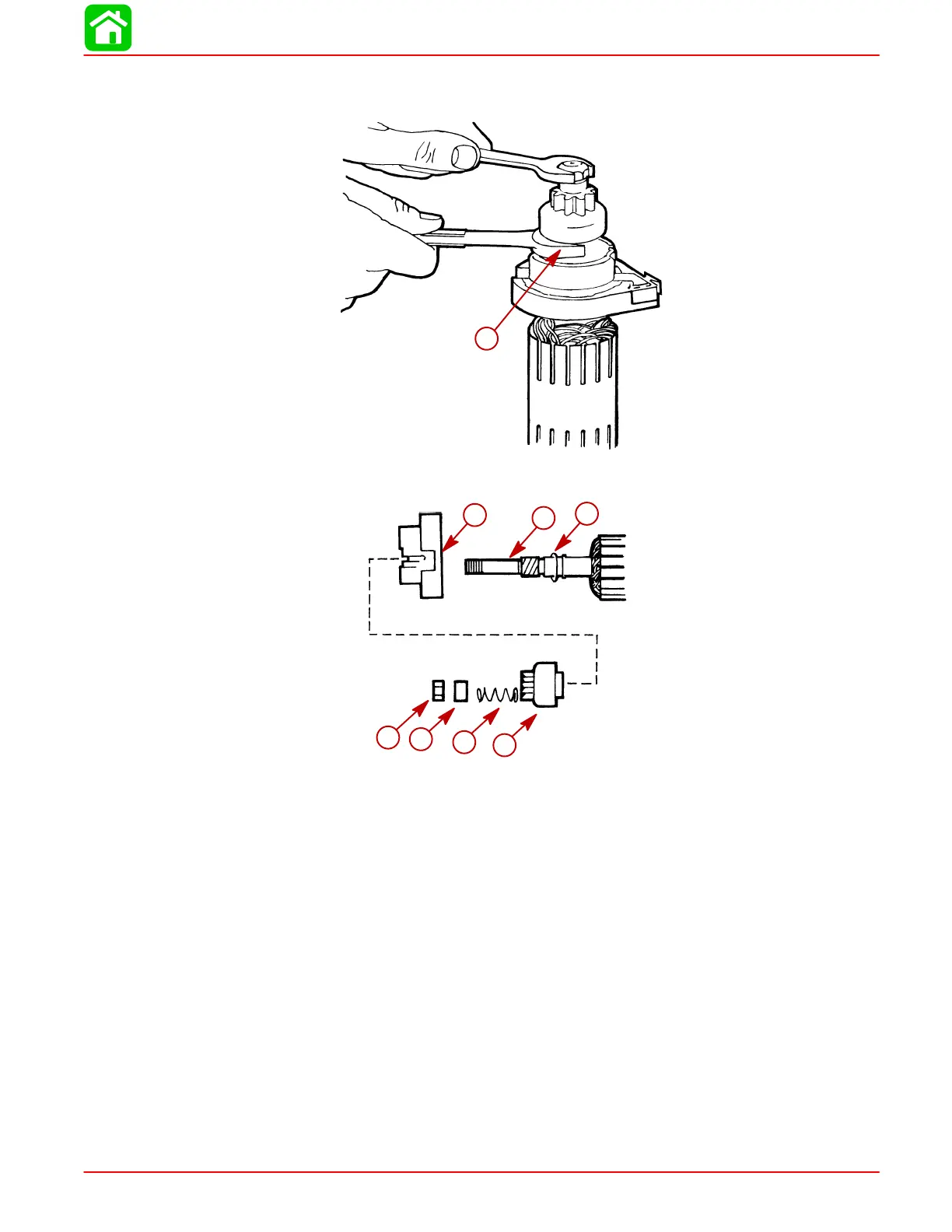

5. Remove armature (with drive end cap) from starter frame.
6. Remove locknut and remove drive assembly from armature shaft.
a
a-Hold armature shaft with wrench on hex portion of drive assembly
7. Remove parts from shaft.
11658
f
e
a
b
c
d
g
a-Locknut
b-Spacer
c-Spring
d-Drive Assembly
e-Drive End Cap
f-Armature Shaft
g-Washer
