CHARGING & STARTING SYSTEM
Page 2B-42 90-883728 JULY 2001

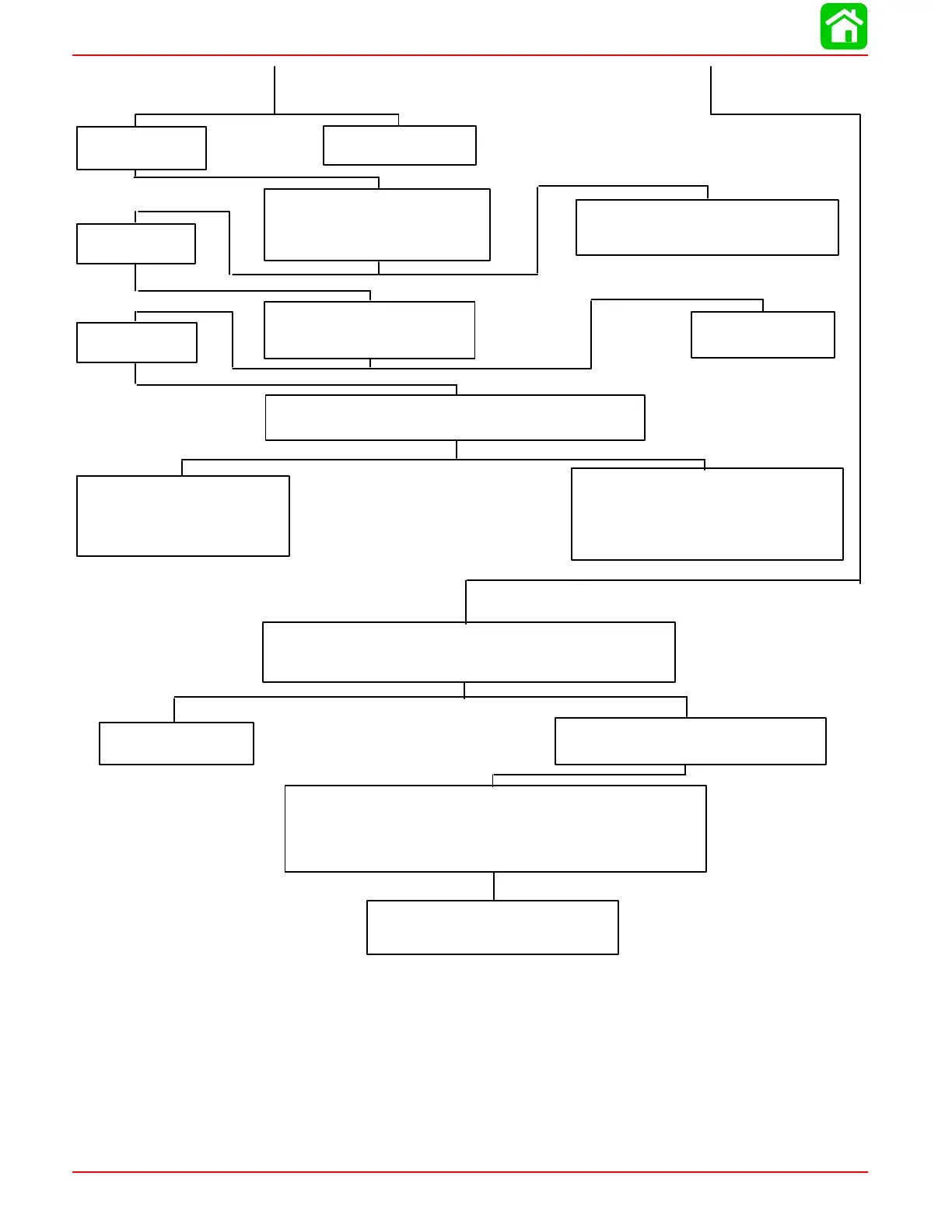

TEST 8
a. Connect voltmeter between common engine ground and Test Point 2.
b. Turn ignition key to “Start” position.
No voltage reading:
Defective slave solenoid
12 Volt Reading*
Should hear solenoid click: proceed to TEST 9
TEST 9
a. Reconnect BLACK cable (with RED sleeve) to slave solenoid Test
Point 7.
b. Connect voltmeter between common engine ground and Test Point 7.
c. Turn ignition key to “Start” position.
No voltage reading:
Check BLACK cable (with RED sleeve) for
poor connection or open circuit.
*Battery Voltage
12 Volt Reading
Defective starter solenoid
TEST 5
a. Connect voltmeter between common
engine ground and Test Point 5.
b. Turn ignition key to “Start” position.
12 Volt Reading*
Neutral start switch is open or YELLOW/RED
wire is open between Test Points 5 and 4.
TEST 6
Connect voltmeter between common
engine ground and Test Point 6
12 Volt Reading*
Defective ignition switch.
TEST 7
Check for voltage between common engine ground and Test Point 7.
No voltage reading:
Check BLACK cable with RED
sleeve between battery(+)
POSITIVE terminal and Test Point 8
and Test Point 7.
12 Volt Reading*
Check fuse in RED wire between Test Points
6 and 7.
Check for open RED wire between Test
Points 6 and 7.
No voltage reading:
proceed to TEST 5
No voltage reading:
proceed to TEST 6
No voltage reading:
proceed to TEST 7
