Starter Installation (Solenoid Driven Bendix)
1. Secure starter to engine with 4 bolts. Use right top bolt to attach BLACK NEGATIVE.
Torque top attaching bolts to 23 lb-ft (31 Nm). Torque bottom attaching bolts to 21 lb-ft.
(28.5 Nm).
2. Secure BLACK cables (with RED sleeves) to POSITIVE (+) terminal on starter sole-
noid. Torque nut to 55 lb-in (6 Nm).
58428
a
b
d
c
e

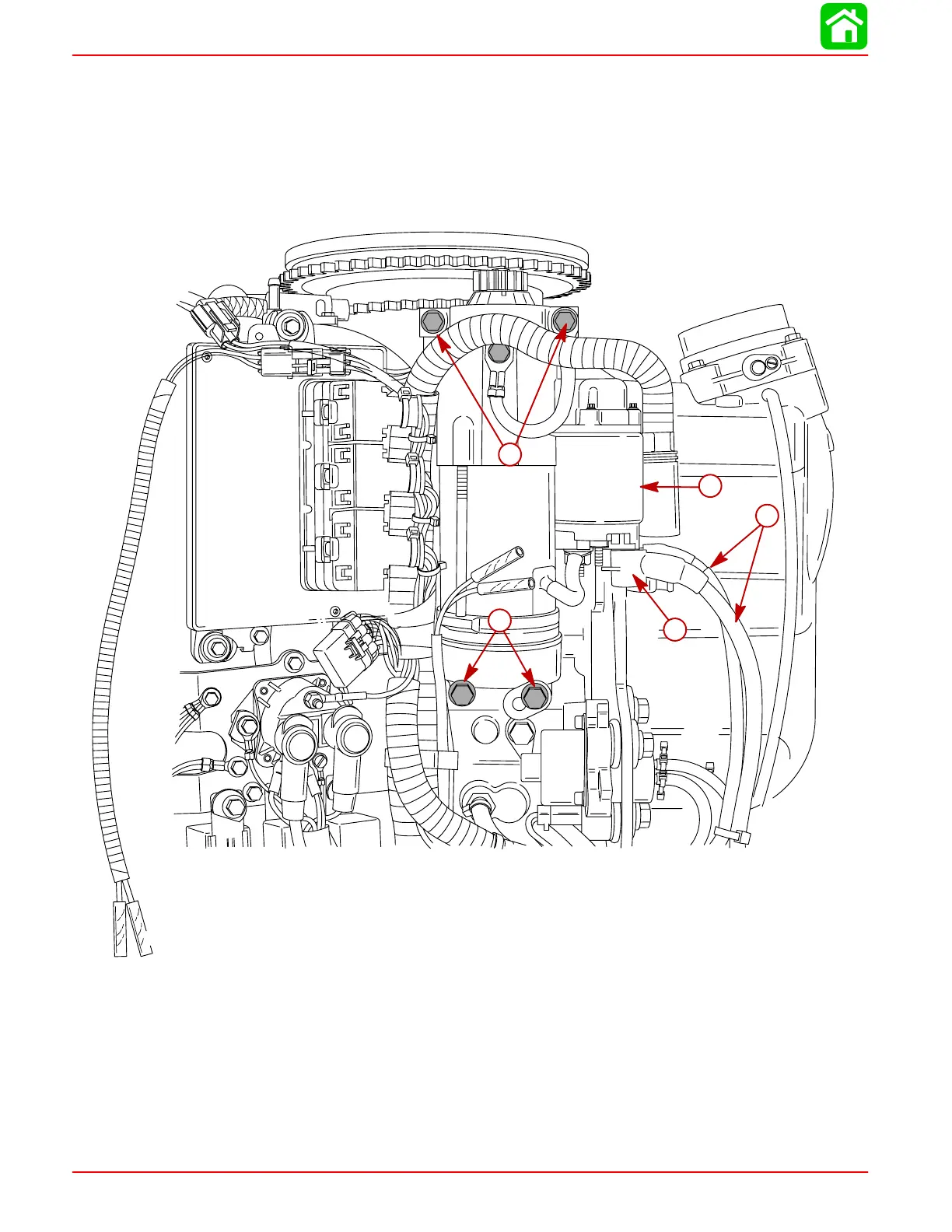

a-Top Bolts [Torque to 23 lb-ft (31 Nm)]
b-Bottom Bolts [Torque to 21 lb-ft (28.5 Nm)]
c-BLACK Cables (with RED sleeves)
d-Nut [Torque to 55 lb-in (6 Nm)]
e-Starter Solenoid
