FUEL INJECTION
Page 3B-46 90-883728 JULY 2001

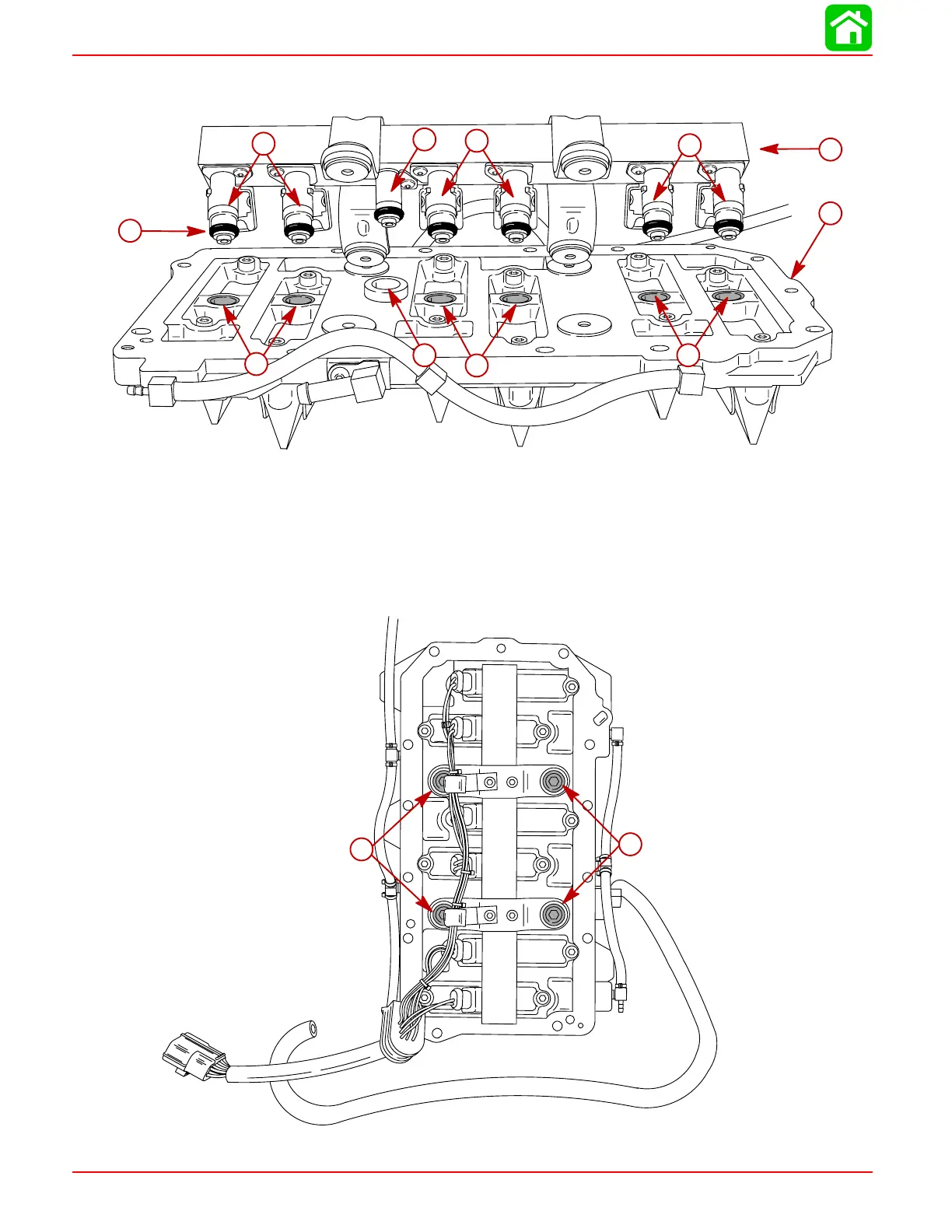

3. Apply light oil to all o-rings and o-ring contact surfaces on reed block assembly plate
to ease installation of fuel rail assembly.
a
a
a
b
58881
d
c
e
f
f
f
f
a-Fuel Injectors (6)
b-Fuel Rail Fuel Inlet Pipe
c-O-Rings
d-Fuel Rail
e-Reed Block Assembly
f-O-Ring Contact Surface
4. Secure fuel rail assembly to reed block assembly plate with 4 screws. Torque screws
to 65 lb. in. [7.0 Nm].
58798
a
a
a-Screws [Torque to 65 lb. in. (7.0 Nm)]
