CLAMP/SWIVEL BRACKETS & DRIVESHAFT HOUSING
Page 5A-10 90-883728 JULY 2001

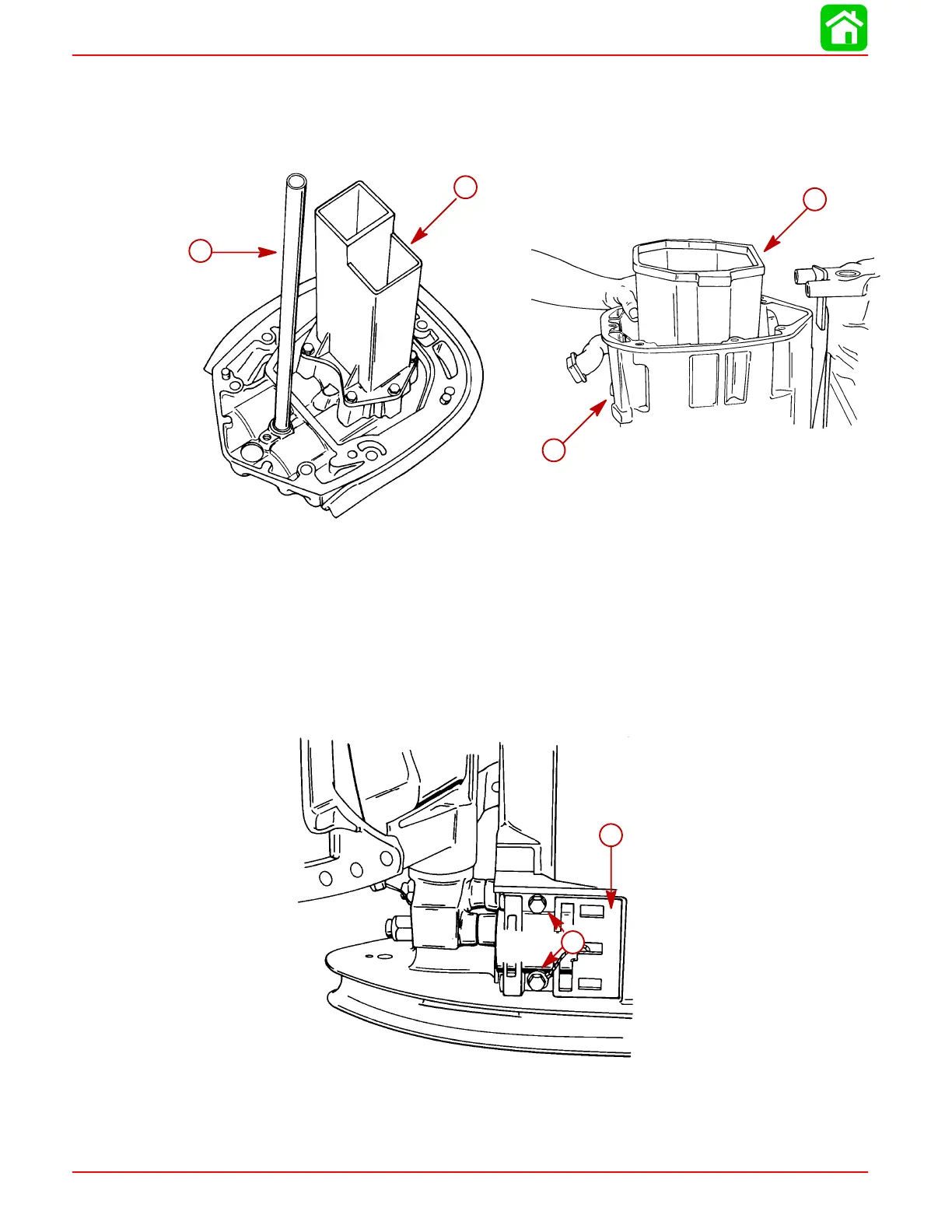

3. Remove water tube from driveshaft housing plate.
4. Exhaust diffuser is secured to housing plate with 6 bolts. Remove bolts, then remove
diffuser.
5. Pull exhaust tube out of drive shaft housing.
a
b
51850
b
a
51857
c
d
a
b
a-Water Tube
b-Exhaust Diffuser
c-Exhaust Tube
d-Drive Shaft Housing
6. Remove all gasket material from driveshaft housing and related components.
7. Remove bolts, which secure lower mount retainers to drive shaft housing, and remove
retainers.
8. Remove rubber caps from lower mount bolts.
51855
b
a
a
b
a-Bolts
b-Lower Mount Retainer (One Each Side)
To Next Page
